DIY 4 Tire Inflator/Deflator

SlashRacer

Feb 13, 2022

I made a 4 tire inflator/deflator today. Will make airing down/up so much easier!!!

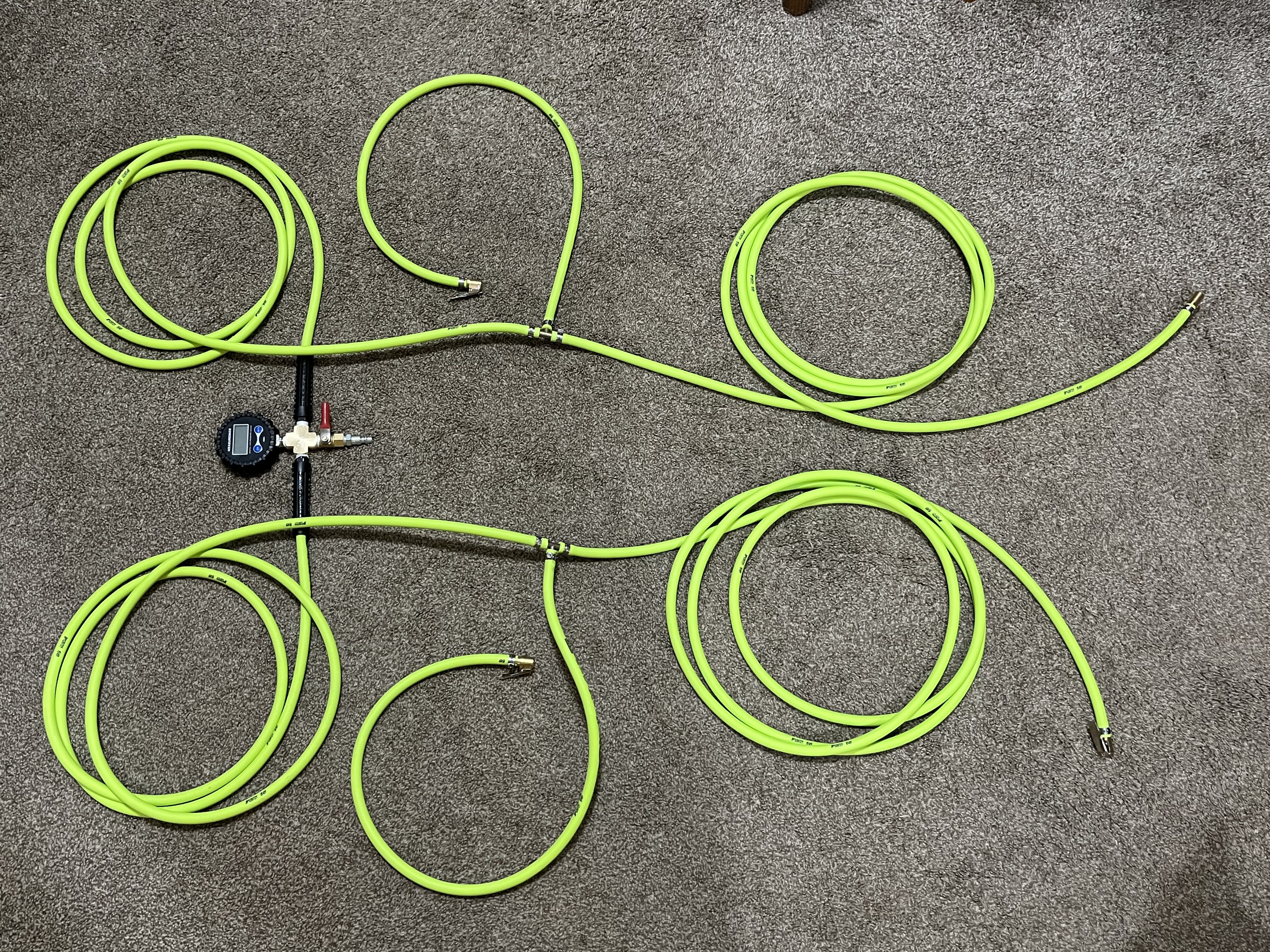

Started off with a 50’ roll of 1/4” Flexzilla air hose. I cut 10’ off of both ends of the hose so each 10’ section had a threaded black end. These are the 2 black ends in the brass 4 square in the center. I cut two 3’ pieces and cut the last piece into two 12’ pieces.

10’ hose from 4 square to brass T fitting, 3’ hose coming off the T, and the 12’ hose coming off the end and going to the air fitting. There is an air fitting on the end of every hose that will clip on to the valve stems. The air fittings are closed style.

All of these parts were purchased on Amazon.

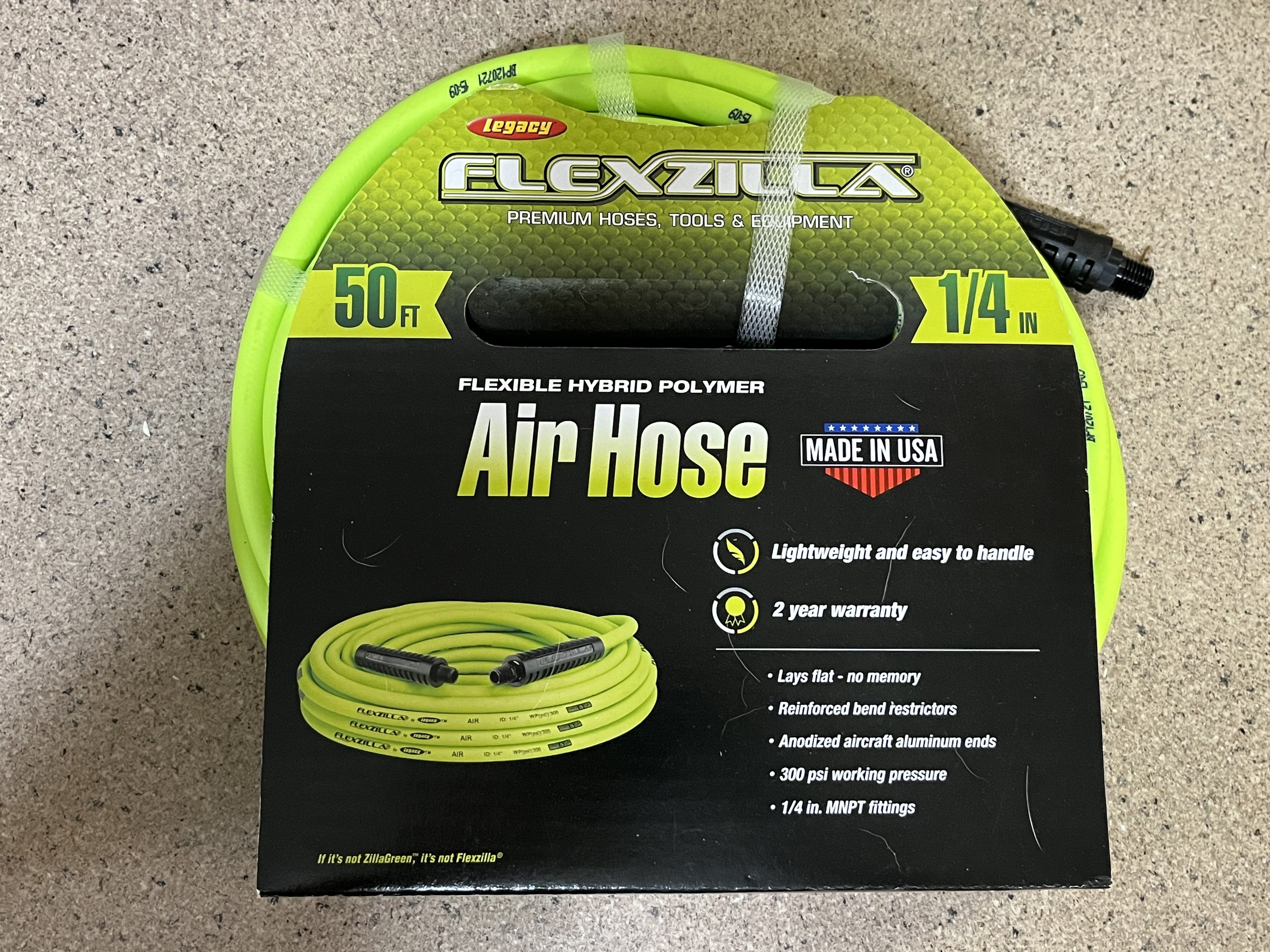

Air hose

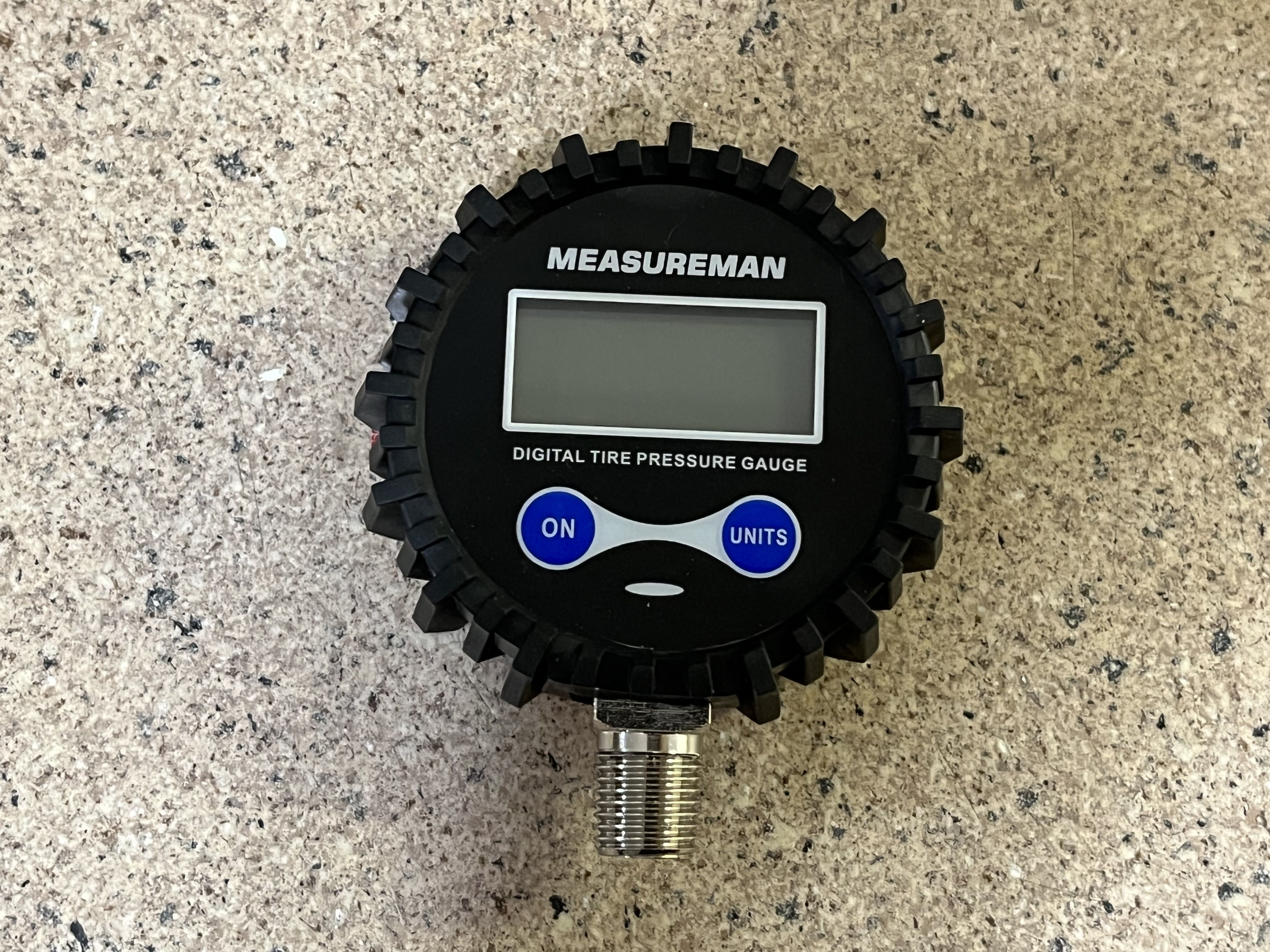

Pressure gauge
Shut off valve

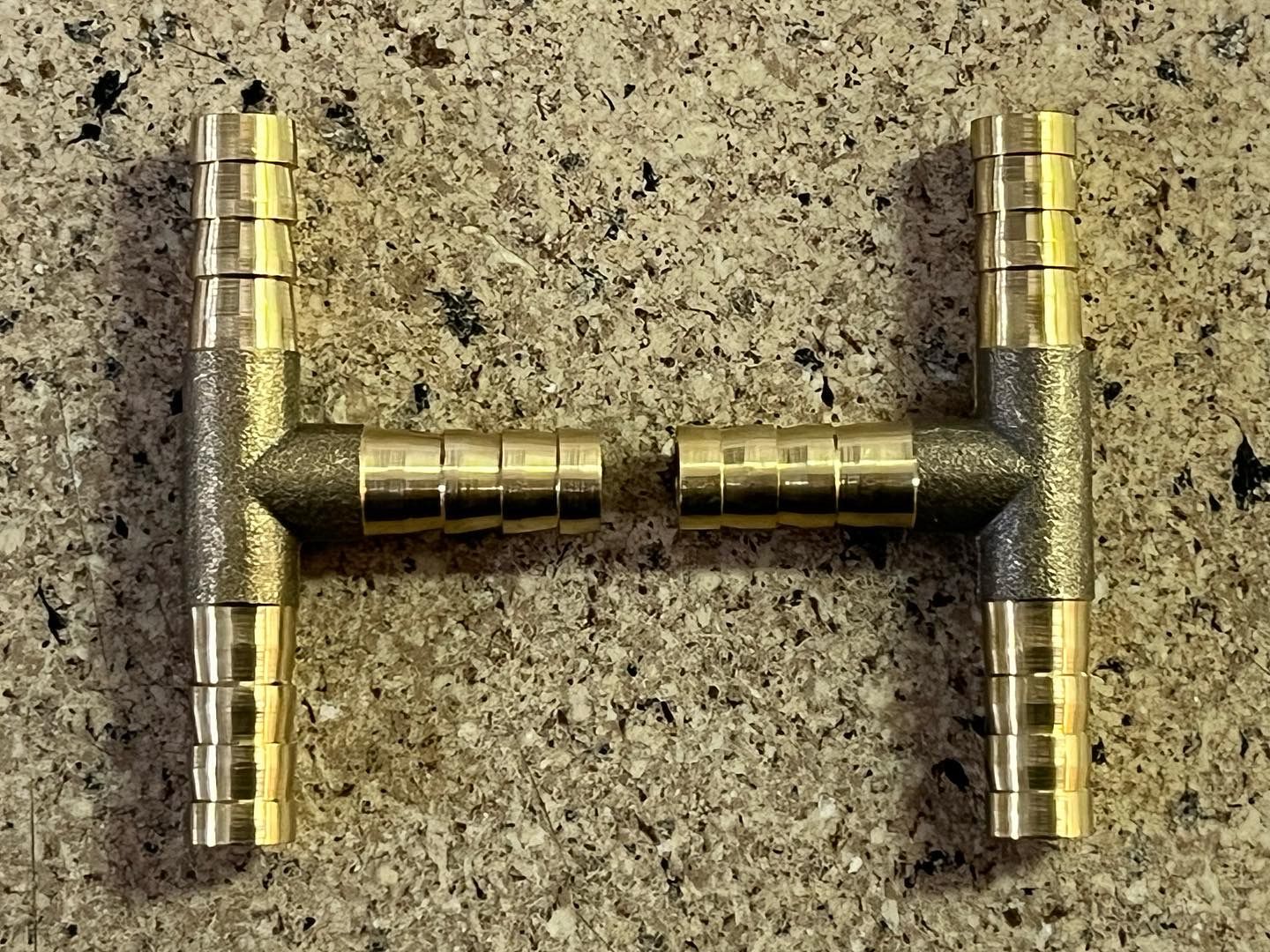

Brass barbed T
Brass 4 way fitting
Brass barbed hose fittings
Air chucks - closed flow
M style plug
Hose ear clamps/pliers
Adapter
Make tank valve
Female M style coupler

2021 Badlands, 4 door, 2.7L, Auto, LUX, SAS, Tow Package, MIC, Velocity Blue.

OffroadRN, Wood J

Sort by date

Reaction Score

Mar 29, 2022

#20

SlashRacer

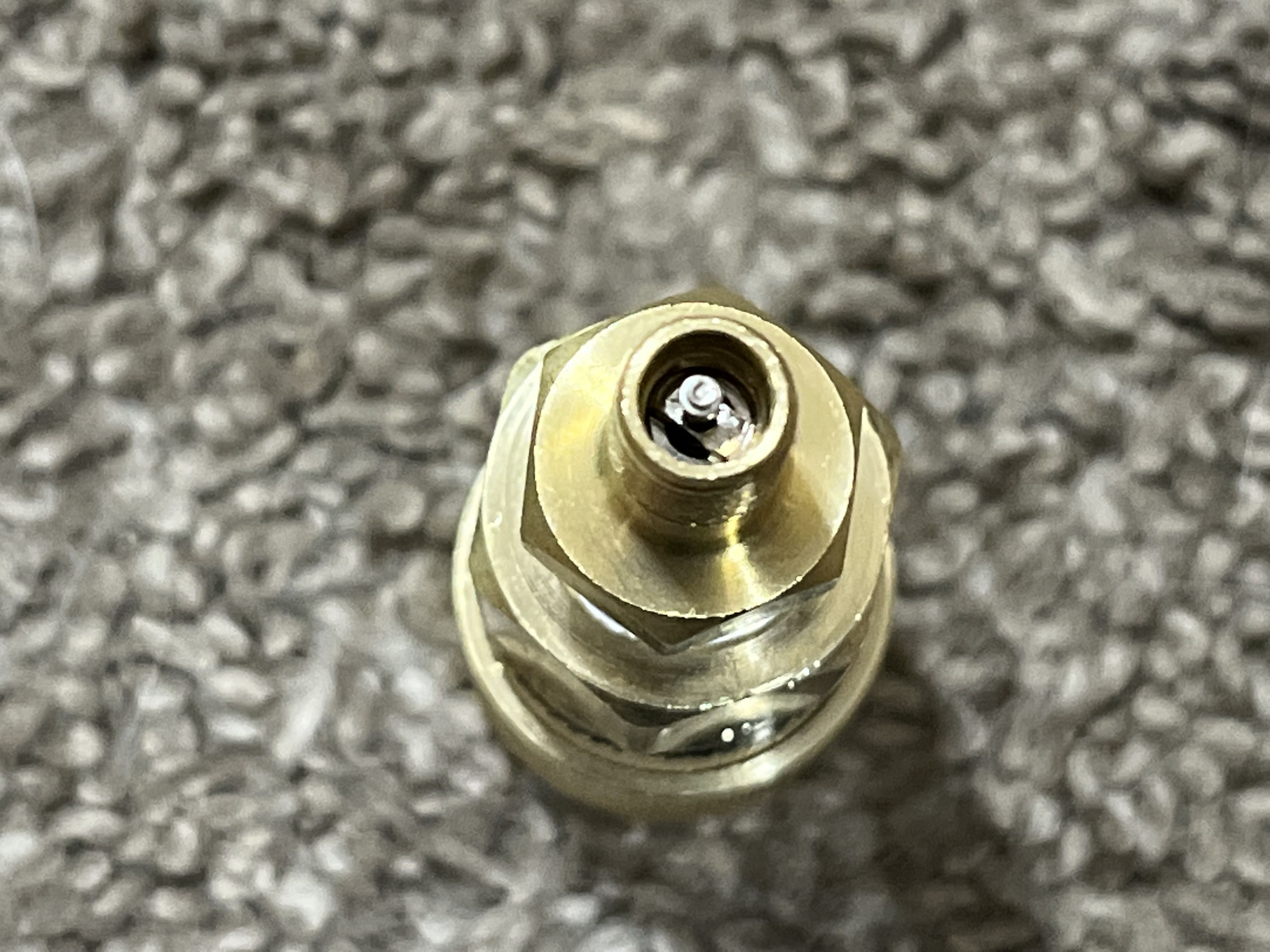

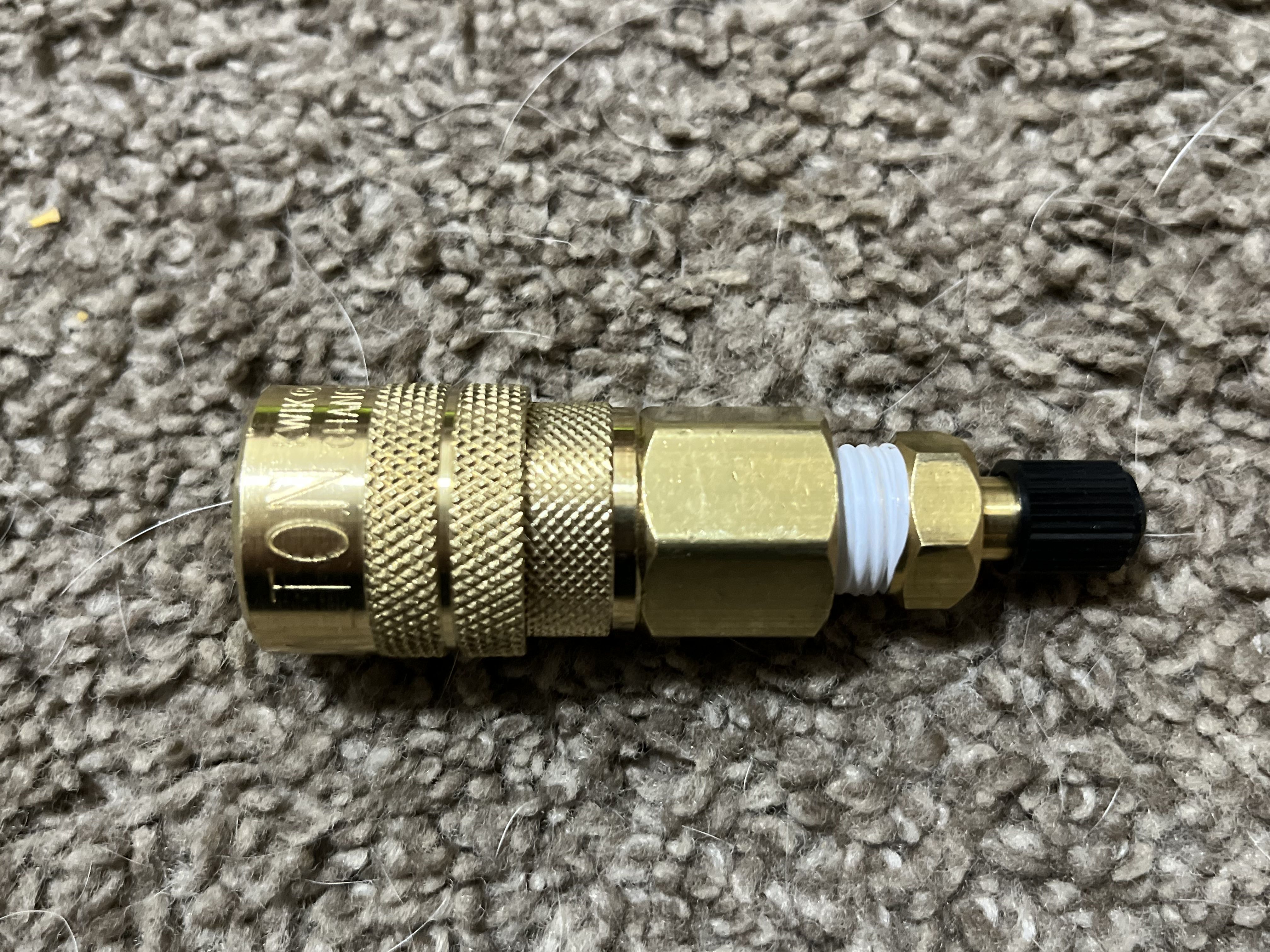

Also made this little air chuck that will work at a gas station if the onboard air compressor doesn’t work.

View attachment 28601 View attachment 28602 View attachment 28603

Cool! Looks just like the MorrFlate that I just got! BTW, I tried it last weekend and it worked like a champ! Not only can I deflate/inflate all 4 at once, but it also equalizes the pressure between all 4 as well!

OnX Trail Guide
4 Door BadSquatch | Soft-top | Velocity Blue | 2.7 Auto

Deano Bronc

Mar 29, 2022

#21

SlashRacer
Prices must have gone up. I only had $130-140 into it.

Fitting tape was $21 for the roll which you already had and the Clamping tool and clamps went up in price. Still a great setup and parts.

Deano Bronc, SlashRacer

Mar 29, 2022

#22

Priverta
Fitting tape was $21 for the roll which you already had and the Clamping tool and clamps went up in price. Still a great setup and parts.

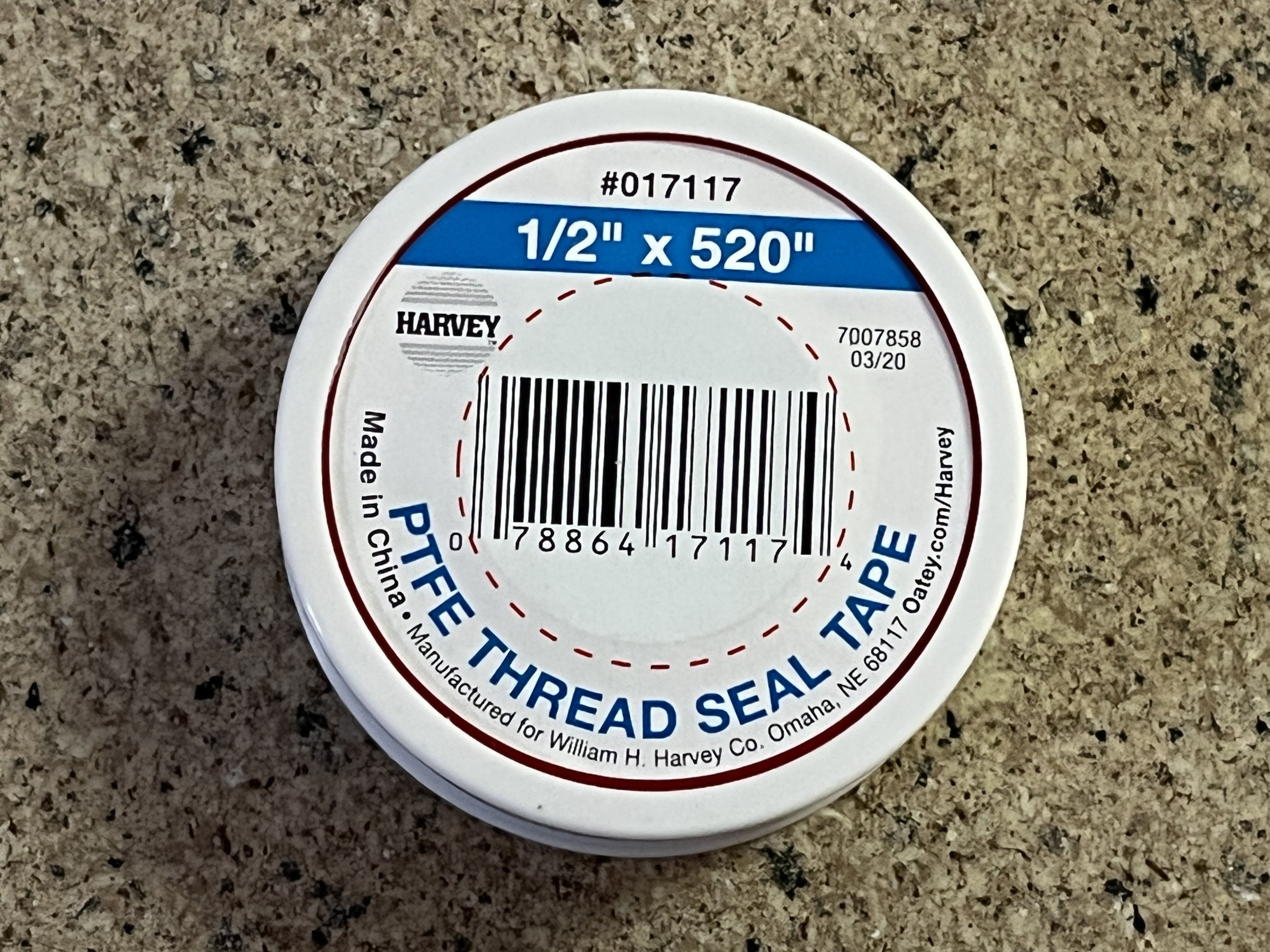

You can get the tape at the hardware store for $2.

2021 Badlands, 4 door, 2.7L, Auto, LUX, SAS, Tow Package, MIC, Velocity Blue.

May 22, 2022

#23

SlashRacer
I made a 4 tire inflator/deflator today. Will make airing down/up so much easier!!!

Started off with a 50’ roll of 1/4” Flexzilla air hose. I cut 10’ off of both ends of the hose so each 10’ section had a threaded black end. These are the 2 black ends in the brass 4 square in the center. I cut two 3’ pieces and cut the last piece into two 12’ pieces.

10’ hose from 4 square to brass T fitting, 3’ hose coming off the T, and the 12’ hose coming off the end and going to the air fitting. There is an air fitting on the end of every hose that will clip on to the valve stems. The air fittings are closed style.

All of these parts were purchased on Amazon.
Air hose
Pressure gauge

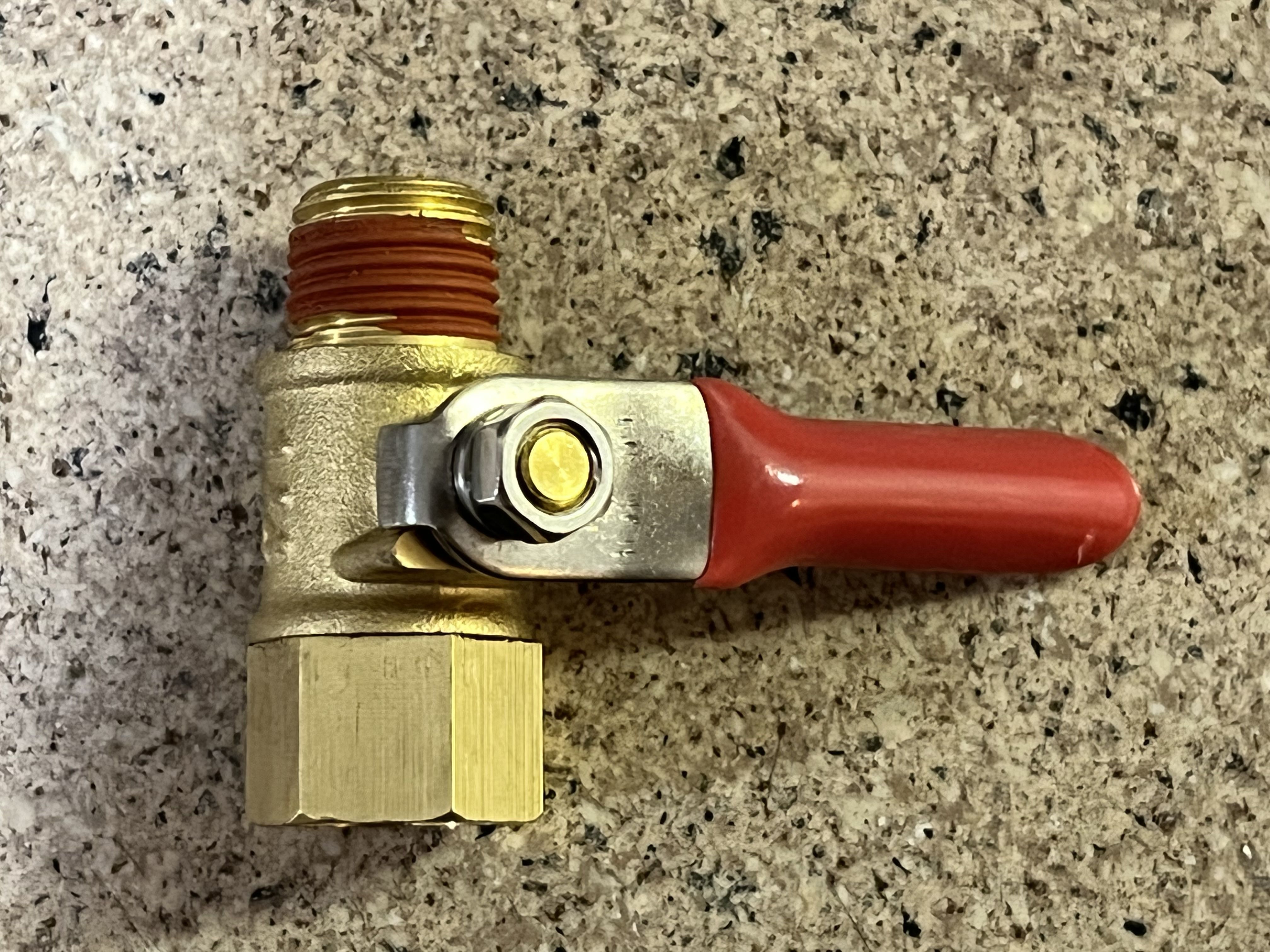

Shut off valve
Brass barbed T

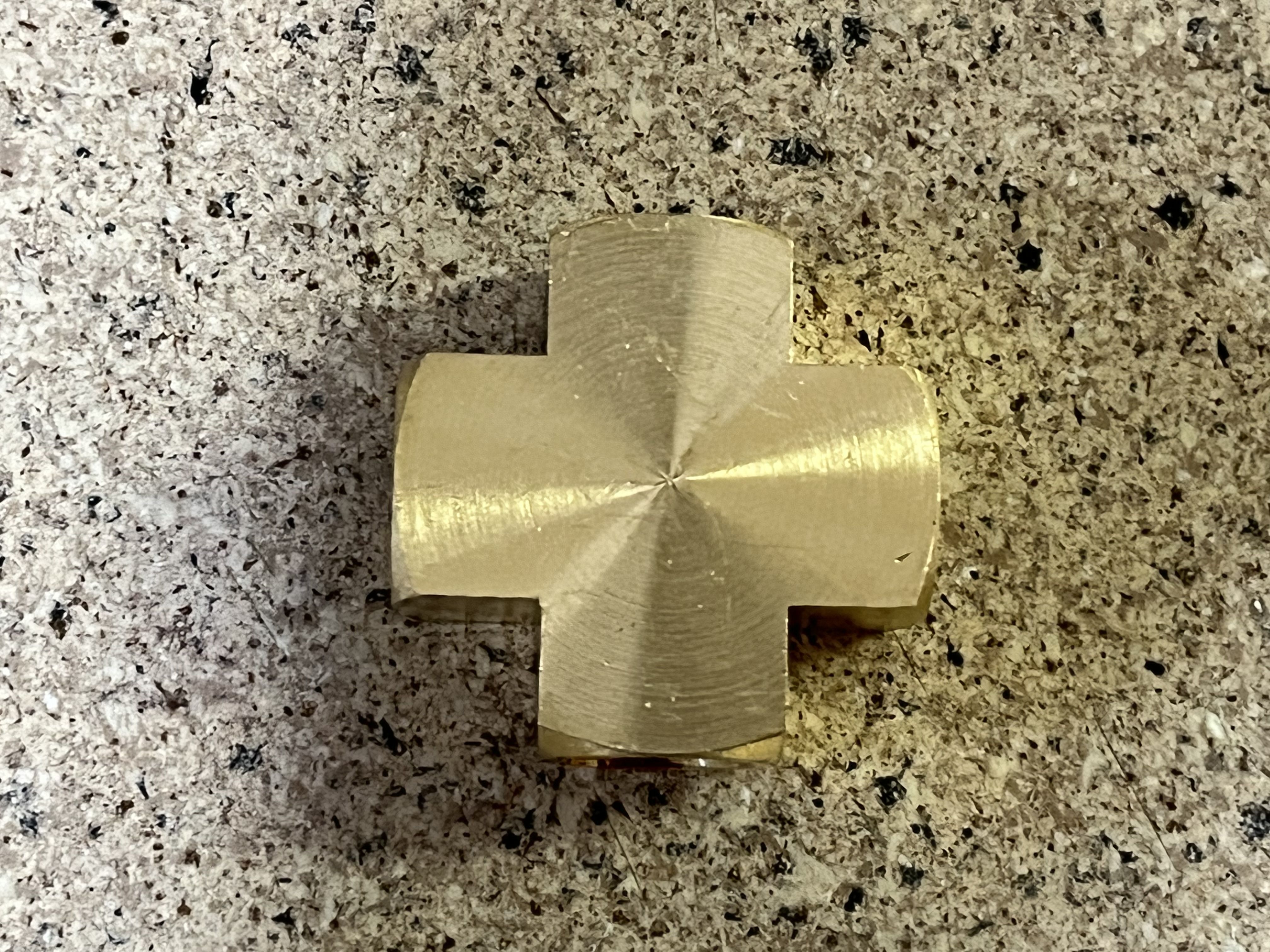

Brass 4 way fitting
Brass barbed hose fittings

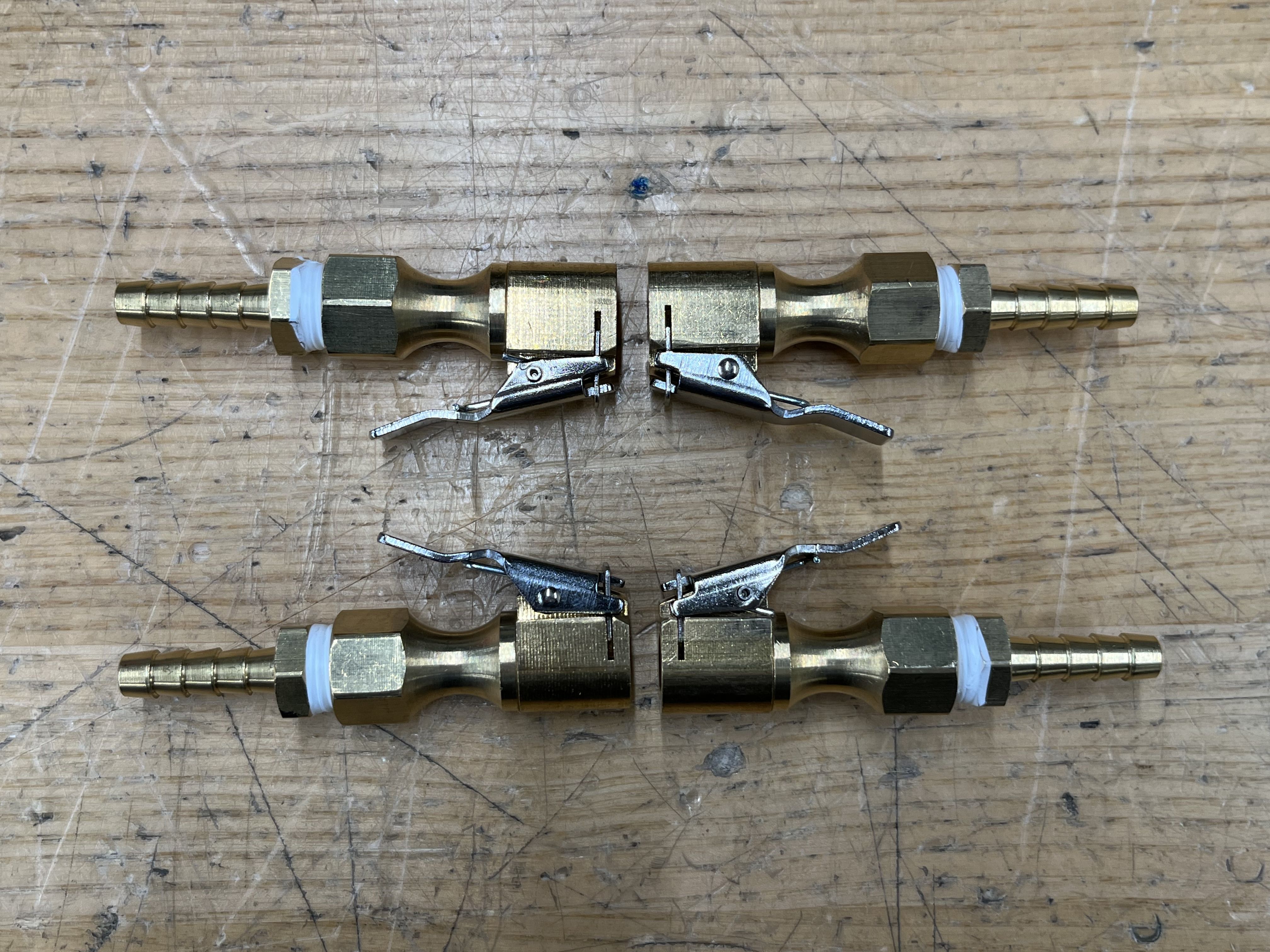

Air chucks - closed flow

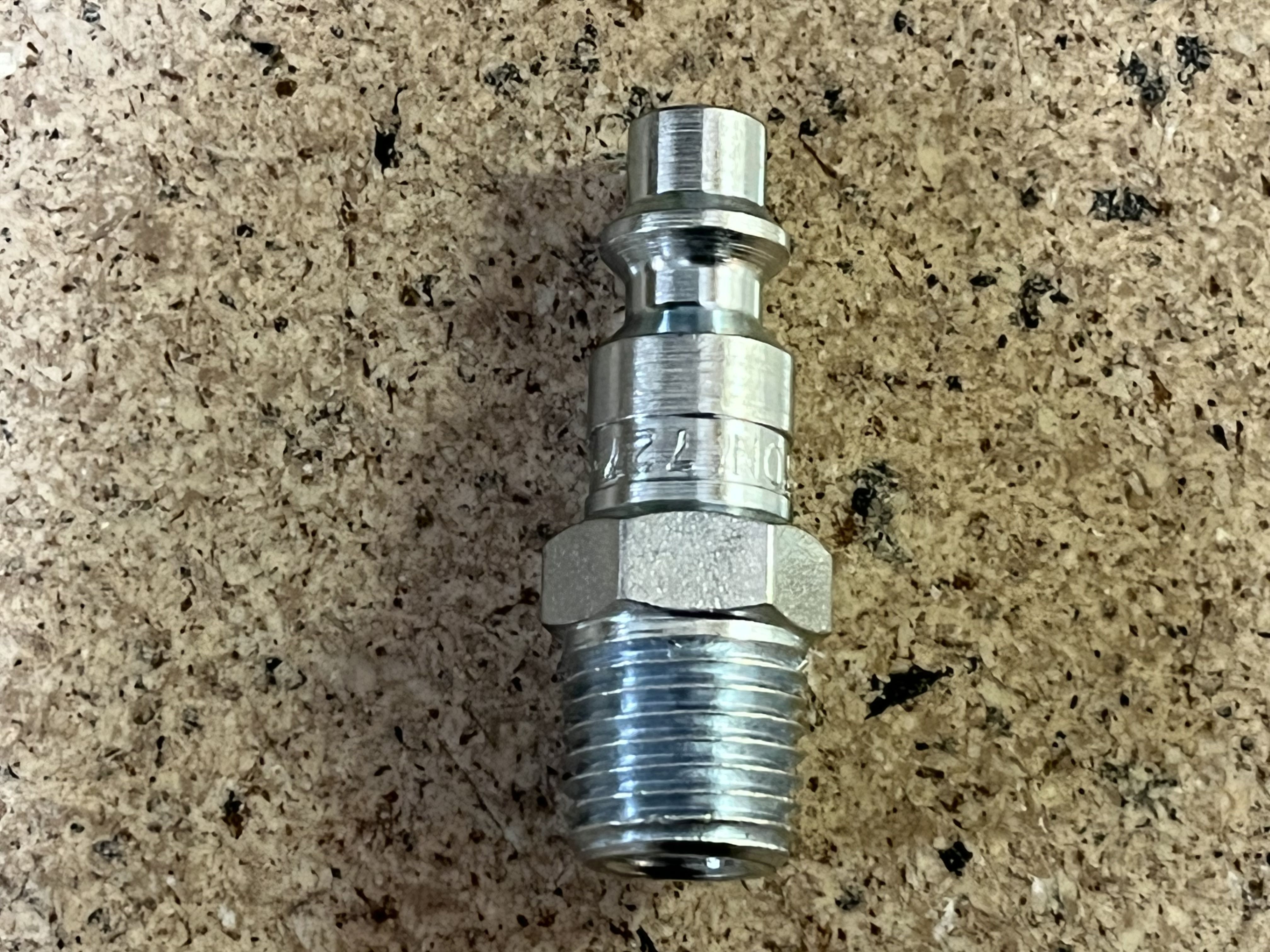

M style plug

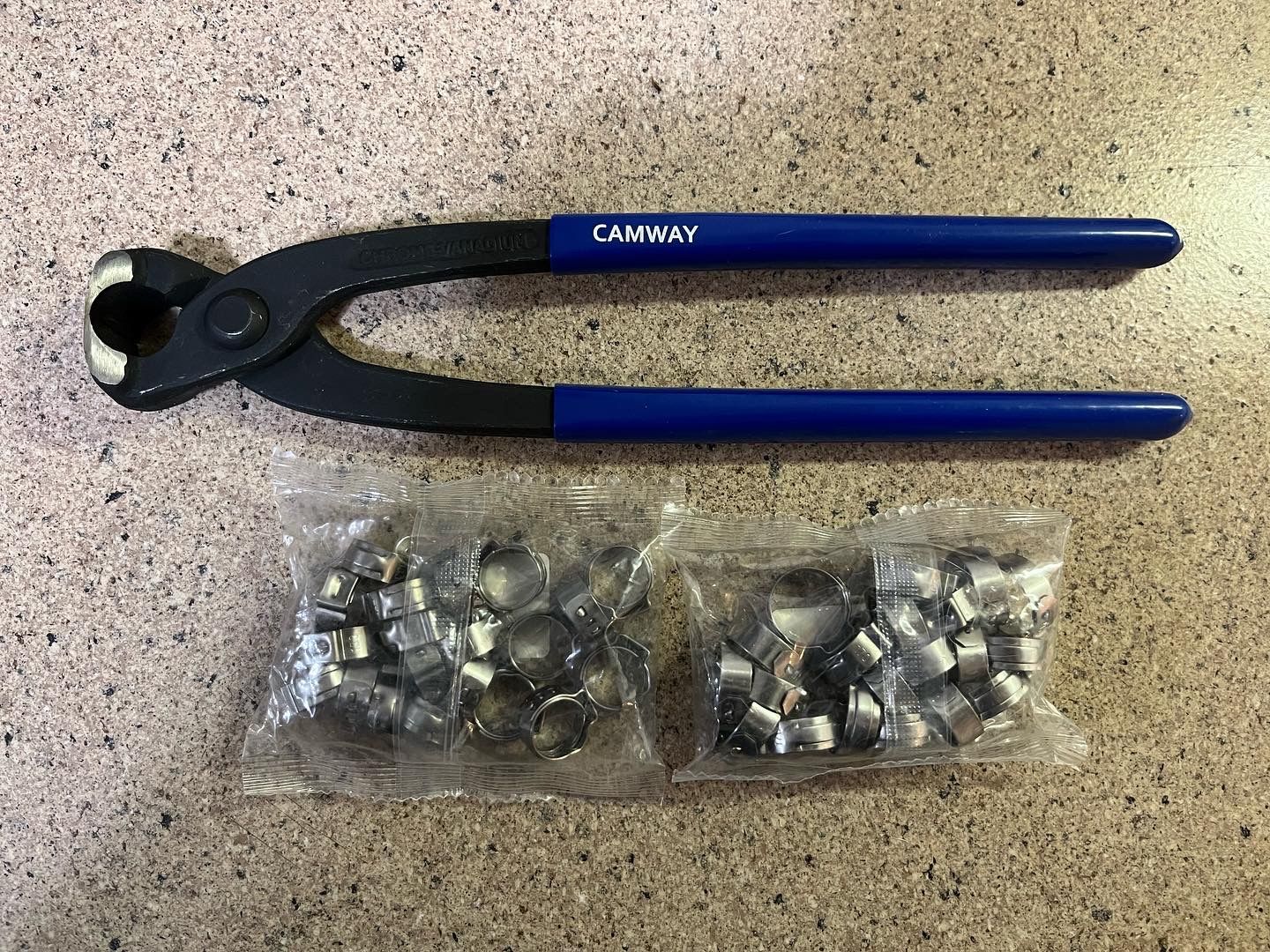

Hose ear clamps/pliers
Adapter
Make tank valve
Female M style coupler

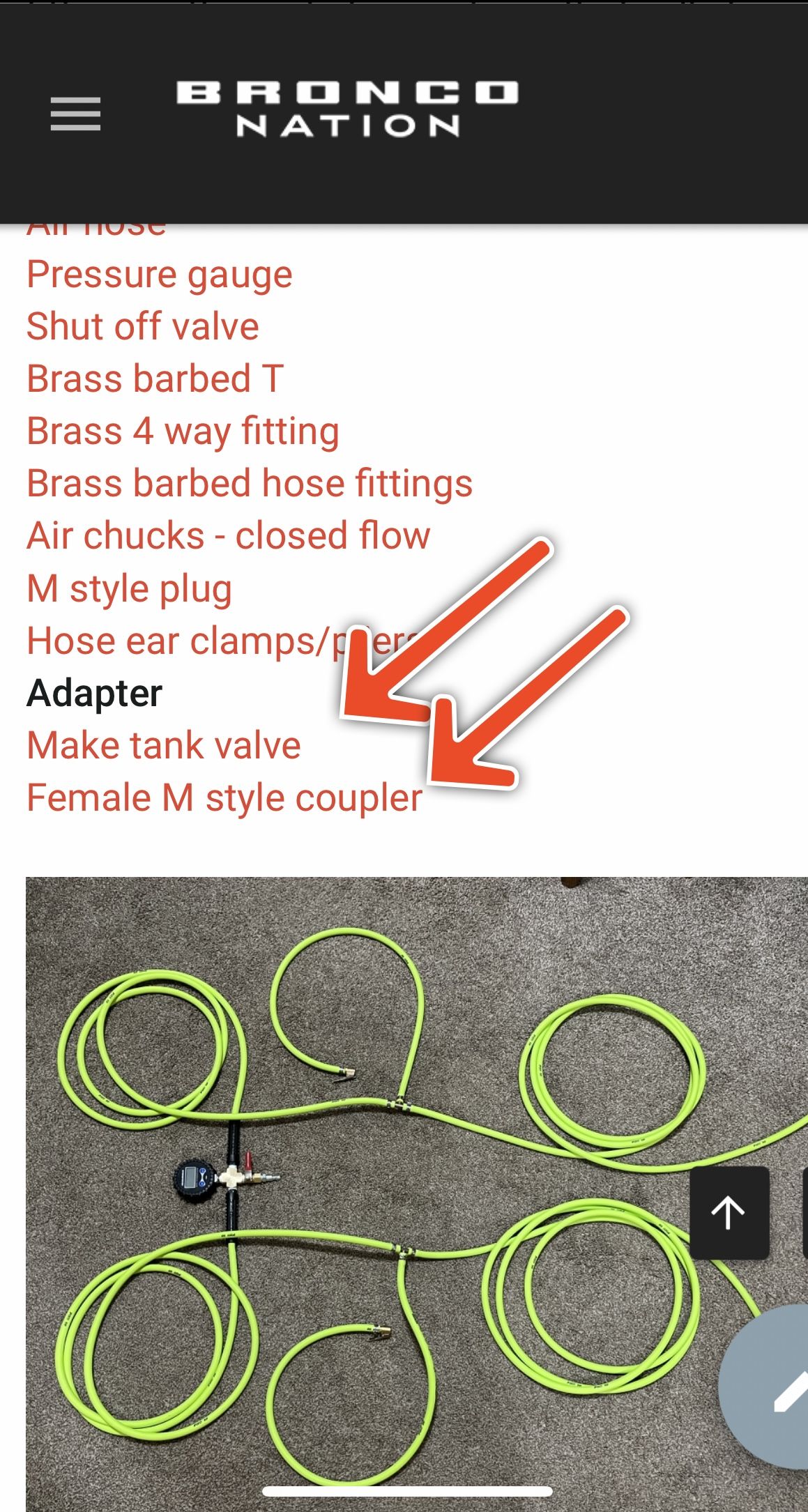

View attachment 28590 View attachment 28591 View attachment 28600 View attachment 28593 View attachment 28594 View attachment 28595 View attachment 28596
View attachment 31050
View attachment 28598 View attachment 28599

Hey Mike,
There's no link for the adapter, did you buy that local or the link is messed up?
Getting ready to put one of these together! Without the adapter, it comes out to $121.

2022 Bronco Badlands, 4D, Hot Pepper Red, 2.7, Squatch, Lux, and MIC.
7/13/2020 10:04pm reservation. Blend 6/16/2022 Delivered 6/26/2022.
Dealership - Stephen's Auto Center.

May 22, 2022

#24

Deano Bronc
Hey Mike,
There's no link for the adapter, did you buy that local or the link is messed up?
Getting ready to put one of these together! Without the adapter, it comes out to $121.

I just checked the links and they worked.

2021 Badlands, 4 door, 2.7L, Auto, LUX, SAS, Tow Package, MIC, Velocity Blue.

May 22, 2022

#25

SlashRacer
I just checked the links and they worked.

View attachment 36413

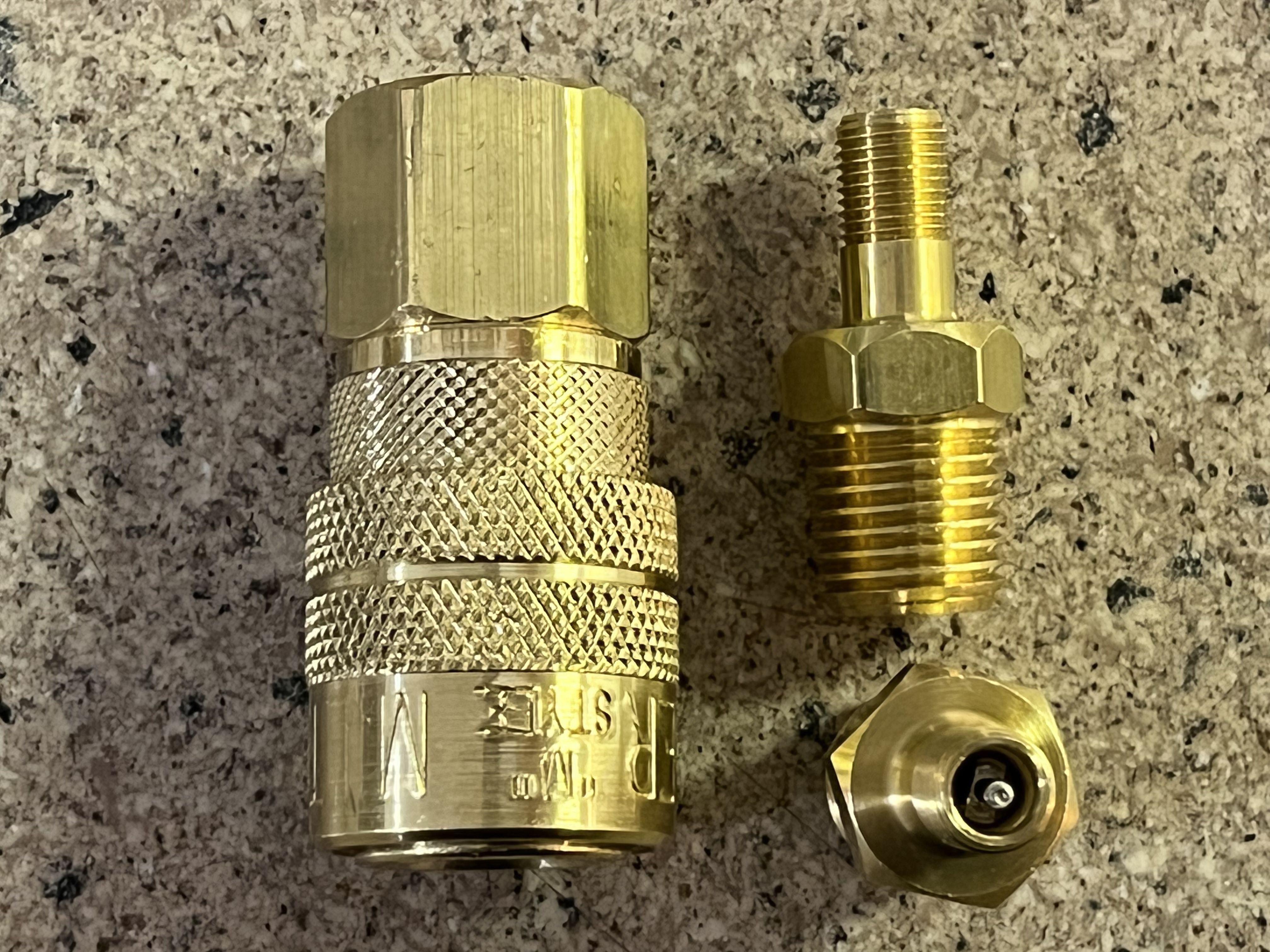

Sorry, I thought this picture was showing 3 pcs that was part of the adapter but it's only 2. Thought I was missing one.

2022 Bronco Badlands, 4D, Hot Pepper Red, 2.7, Squatch, Lux, and MIC.
7/13/2020 10:04pm reservation. Blend 6/16/2022 Delivered 6/26/2022.
Dealership - Stephen's Auto Center.

TK1215, SlashRacer

May 22, 2022

#26

Deano Bronc
Sorry, I thought this picture was showing 3 pcs that was part of the adapter but it's only 2. Thought I was missing one.
View attachment 36421

The extra piece in the pic was there to show it’s a schrader valve.

2021 Badlands, 4 door, 2.7L, Auto, LUX, SAS, Tow Package, MIC, Velocity Blue.

Jakob1972, TK1215

Oct 08, 2022

#27

JoergH
That's REALLY cool! Nice work. I guess I'm lazy, or just have more money than time. I bought the Morrflate 4 tire inflator/deflator. Works like a champ. You can find them here: https://morrflate.com if you would rather buy than build.

Did you buy a Morrflate pump? If so, which one, and have you had enough use to share a thumbnail review? Thanks!

Feb 25, 2025

#28

BuckYeah
Brilliant fabrication and efficient process! Well done, sir. I'm with Tim on this one. I just need the vehicle to attach the hose ends too. :p

Did you build one ?

Feb 25, 2025

#29

C6ZZGT
Did you build one ?

Nope. I posted here before I even took delivery of my Bronco. This is an old thread. I have a quick deflator and a portable compressor with a single line. It's simple but works, and I lack the ambition to build a 4-line system. It's not an issue for as often as I need to air up and air down.

Chris here. I drive a 2-door Velocity Blue 2023 Ford Bronco Badlands with Sasquatch, Lux, a 2.7L V6, and an automatic transmission. It’s fun.

"Stupidity is a more dangerous enemy of the good than malice." - Dietrich Bonhoeffer

Feb 25, 2025

#30

BuckYeah
Nope. I posted here before I even took delivery of my Bronco. This is an old thread. I have a quick deflator and a portable compressor with a single line. It's simple but works, and I lack the ambition to build a 4-line system. It's not an issue for as often as I need to air up and air down.

We have a 4 hose set up for Marias, But I'm thinking of one for mine.

Feb 25, 2025

#31

I was going to build one but Morrflate was running a group buy and I got one of their units the one without the gage for like $130 or so, it was cheaper than I could source all the parts to DIY it. Keep your eyes peeled they run sales from time to time. I also used a maxtrac deflater from Napa, that thing works well to deflate.

Bronco Nation 1100. Everglades, Desert Sand
Res: 7/30/20 ordered 1/22/21 reorder 10/15/21 changed to Everglades 3/9/22 schedule 8/29/22 bumped to 9/5; 9/7/22 blend, 9/9 Mods, 9/26/22 completed, 10/7 shipped, 11/3/22 delivery

Deano Bronc

Feb 25, 2025

#32

I have the 4 hose from Morrflate, but I also use the Staun deflaters to air down. It's quicker than pullout out the hose, and then currling it up again.

OnX Trail Guide
4 Door BadSquatch | Soft-top | Velocity Blue | 2.7 Auto

Jakob1972

Feb 25, 2025

#33

JoergH
I have the 4 hose from Morrflate, but I also use the Saun deflaters to air down. It's quicker than pullout out the hose, and then currling it up again.

I bought a cheap set when I first got my Bronco and they never seemed to work that well or stay consistent. I may have to try out a good set like the Stauns.
https://a.co/d/cHZg8eO

2022 Bronco Badlands, 4D, Hot Pepper Red, 2.7, Squatch, Lux, and MIC.
7/13/2020 10:04pm reservation. Blend 6/16/2022 Delivered 6/26/2022.
Dealership - Stephen's Auto Center.

Jakob1972

Feb 25, 2025

#34

C6ZZGT
Did you build one ?

I built a kit using parts from Amazon. It cost me about $90. I could have done it even cheaper if I was willing to sacrifice the hose/fittings that came with my compressor, but I decided for the small price difference, it would be good to have that hose for other purposes. I can post the parts I used if you like. The main reason I chose to do a 4-tire kit is because I like the idea of easily getting all four tires to the same pressure. With my single-tire system, I used the dash TPMS gauge, which is OK, but the 4-tire system makes it foolproof.

Jakob1972, Deano Bronc

Feb 25, 2025

#35

Deano Bronc
I bought a cheap set when I first got my Bronco and they never seemed to work that well or stay consistent. I may have to try out a good set like the Stauns.
https://a.co/d/cHZg8eO

The only issue I have with my Staun's is that they come pre-set to about 18 psi. If you want something different, it's not that easy a process to set them. Here's a really helpful video.

OnX Trail Guide
4 Door BadSquatch | Soft-top | Velocity Blue | 2.7 Auto

Deano Bronc, Jakob1972

Feb 25, 2025

#36

timhood
I built a kit using parts from Amazon. It cost me about $90. I could have done it even cheaper if I was willing to sacrifice the hose/fittings that came with my compressor, but I decided for the small price difference, it would be good to have that hose for other purposes. I can post the parts I used if you like. The main reason I chose to do a 4-tire kit is because I like the idea of easily getting all four tires to the same pressure. With my single-tire system, I used the dash TPMS gauge, which is OK, but the 4-tire system makes it foolproof.

I use the dash TPMS to get me in the ball park, I use a handheld tire gauge to verify. I noticed the TPMS had one tire that was always off a few psi but after a few miles down the road they would equalize. If I check each tire with the gauge I’m usually within a .5 psi but the TPMS might be 2 psi different.

timhood

Feb 26, 2025

#37

Deano Bronc
I bought a cheap set when I first got my Bronco and they never seemed to work that well or stay consistent. I may have to try out a good set like the Stauns.
https://a.co/d/cHZg8eO

I have a set of Rhino deflators that I'd be willing to sell for a good price if you want. They look like the Staun, using that same locking ring method. They are well respected.

JoergH

You must log in or register to post here.
