2021 Ford Bronco Exterior Dimensions

David
Jan 29, 2021

Rank VI

Jan 29, 2021

Hey there, everybody. Here's our exterior dimensions guide for 2021 Ford Bronco.

Bronco Exterior Dimensions.jpg
Bronco Nation Member #144
David in the Bronco Nation Forums
BroncoTroubadour on Instagram
TorgSurv, GToddC5 and 18 others
Moderator

Off-Roadeo Ranger

Jan 29, 2021

#1
Thanks for posting. I have some questions:
  • Overall length includes the spare tire, right? Wouldn't that make Sasquatch longer than Badlands? Seems like it should be about 191/175.2. If the numbers in the table are correct, what makes Badlands longer than Sasquatch?
  • Is the overall height on the Sasquatch really 5" more than Badlands & +/-6" more than Base? I was expecting something more like 2/3, which would jive with the difference in step height.
  • Track is measured to center of tire tread, right? Is the difference for Sasquatch because of a different wheel offset, or are there other contributing factors?
  • Is the track for Badlands correct? I would expect it to be about 0.4" wider than Base, in agreement with the overall vehicle width with mirrors folded.
Hobgoblin, Buckin' and 4 others
Moderator

Off-Roadeo Ranger

Jan 29, 2021

#2
One other question: Do we have an interior dimensions guide? If not, can I bring my tape measure and make one? I'm pretty good at measuring stuff.
Hobgoblin, Rhiostatic and 5 others
Moderator

SW Michigan

Jan 29, 2021

#3
Are you sure on the height of the 4 door Badlands and the 4 door Squatched? That’s almost 6” of difference.
Badlands, 4 door, 2.7L, Auto, LUX, SAS, Tow Package, MIC, Velocity Blue.
Nellman, Bronc96 and 3 others

Rank II

Jan 29, 2021

#4
is there a pic of a wildtrak / squatched 4 DR Bronco next to a crew cab f150? (I park next to one at work lol)

Rank IV

Jan 29, 2021

#5
Thanks for posting. I have some questions:
  • Overall length includes the spare tire, right? Wouldn't that make Sasquatch longer than Badlands? Seems like it should be about 191/175.2. If the numbers in the table are correct, what makes Badlands longer than Sasquatch?
  • Is the overall height on the Sasquatch really 5" more than Badlands & +/-6" more than Base? I was expecting something more like 2/3, which would jive with the difference in step height.
  • Track is measured to center of tire tread, right? Is the difference for Sasquatch because of a different wheel offset, or are there other contributing factors?
  • Is the track for Badlands correct? I would expect it to be about 0.4" wider than Base, in agreement with the overall vehicle width with mirrors folded.

My only guess on the overall length is maybe the modular bumper sticks out further than the regular one, and further than the 35s add via Sasquatch? Only reason I can think of, otherwise doesn't make sense to me either.
TorgSurv, Bronc96 and 3 others

Rank VI

Jan 29, 2021

#6
Man... I gotta know the deal behind the height difference on Squatch vs non. That’s a huge difference!!!
Bronc96, GToddC5 and 2 others

Rank VI

Jan 29, 2021

#7
is there a pic of a wildtrak / squatched 4 DR Bronco next to a crew cab f150? (I park next to one at work lol)
Don't have one now but there might be an opportunity for it here at KoH. Not promising, but I'll see what I can get. The team vehicles we're using for this trip are Rangers and an F150 so we might be able to compare.
Bronco Nation Member #144
David in the Bronco Nation Forums
BroncoTroubadour on Instagram
Jhastin4567, Bronc96 and 4 others

Rank IV

Jan 29, 2021

#8
Thanks for sharing. I just compared the spec to my 14MY Explorer and they are darn close. I was thinking I wouldn't have space for the Bronco and Explorer in my garage. Just have to clear a few things out though lol.
Deano Bronc

Rank V

Jan 29, 2021

#9
Man... I gotta know the deal behind the height difference on Squatch vs non. That’s a huge difference!!!

Right?!? The numbers from Badlands to Squatch were NOT 5" anywhere, until here and now.
I would 100% have gone Squatch, if I knew it was 5 freakin' inches!

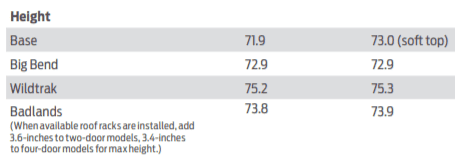

@David If you add 75.3 and 3.6 for the roof rack, you get 78.9. I'll bet someone didn't add up all the "max" height numbers correctly, across the board.
Badlands would then be 73.8 + 3.6 = 77.4, or 1.5" shorter, which is what we all expected.

What happened to this:

Reserved 7/14/20 - Ordered Converted 1/19/21: 2 Dr Cyber Orange Badlands w/ 2.3L, 7MT, MGV, High, Tow
Tentative Build Date - Week of 11/15/21
Toys: 1971 FJ40 - 1989 Toyota Pickup - 1998 C5 vert
hbdcowboys, SlashRacer

Rank IV

Jan 29, 2021

#10
Right?!? The numbers from Badlands to Squatch were NOT 5" anywhere, until here and now.
I would 100% have gone Squatch, if I knew it was 5 freakin' inches!

What happened to this:

View attachment 8229
You can still change it!
Gocats

Rank V

Jan 29, 2021

#11
You can still change it!

But I REALLY want the 7MT more, so I guess I'm fooling myself. Self Squatch it is! And I think the "max" height numbers are wrong on this chart.
Reserved 7/14/20 - Ordered Converted 1/19/21: 2 Dr Cyber Orange Badlands w/ 2.3L, 7MT, MGV, High, Tow
Tentative Build Date - Week of 11/15/21
Toys: 1971 FJ40 - 1989 Toyota Pickup - 1998 C5 vert
Gutter Clown, Deano Bronc and 3 others

Rank IV

Jan 29, 2021

#12
The overall vehicle max heights make no sense. I'm guessing typo or mismeasurement when someone was using the CAD tool generating these. The step-in heights at the rocker are only 2.2inch different regular to Sasquatch. How does the roof get 5 inches higher when the rocker is only 2.2 inches higher.
drtabick

Rank V

Jan 29, 2021

#13
The overall vehicle max heights make no sense. I'm guessing typo or mismeasurement when someone was using the CAD tool generating these. The step-in heights at the rocker are only 2.2inch different regular to Sasquatch. How does the roof get 5 inches higher when the rocker is only 2.2 inches higher.

My theory is posted above, post #10
Reserved 7/14/20 - Ordered Converted 1/19/21: 2 Dr Cyber Orange Badlands w/ 2.3L, 7MT, MGV, High, Tow
Tentative Build Date - Week of 11/15/21
Toys: 1971 FJ40 - 1989 Toyota Pickup - 1998 C5 vert
SlashRacer

Rank VI

Jan 29, 2021

#14
So I’ve checked and rechecked the source material a number of times and had another team member do the same. The numbers shown are correct from the source material. That being said, everyone’s human and it isn’t impossible that there’s an error. Might just need to take some measurements this week. Where’s that fella who’s good at measuring stuff?
Bronco Nation Member #144
David in the Bronco Nation Forums
BroncoTroubadour on Instagram
jmalinov, GToddC5 and 6 others

Rank V

Jan 29, 2021

#15
So I’ve checked and rechecked the source material a number of times and had another team member do the same. The numbers shown are correct from the source material. That being said, everyone’s human and it isn’t impossible that there’s an error. Might just need to take some measurements this week. Where’s that fella who’s good at measuring stuff?

If the source material is anything like the B&P . . .

Seriously though, I'll bet the rack height (for max height) wasn't added across the board.
Reserved 7/14/20 - Ordered Converted 1/19/21: 2 Dr Cyber Orange Badlands w/ 2.3L, 7MT, MGV, High, Tow
Tentative Build Date - Week of 11/15/21
Toys: 1971 FJ40 - 1989 Toyota Pickup - 1998 C5 vert
CCDetroit, Pakrat and 1 other

Rank IV

Jan 29, 2021

#16
So I’ve checked and rechecked the source material a number of times and had another team member do the same. The numbers shown are correct from the source material. That being said, everyone’s human and it isn’t impossible that there’s an error. Might just need to take some measurements this week. Where’s that fella who’s good at measuring stuff?

I measured a computer model this morning and the 4dr Sasquatch number is accurate for length. The others should be an inch or so shorter.

Rank VII

Jan 29, 2021

#17
Man, if these numbers are true, I need to figure something out. Height of my garage door is 82”. Height of 4dr squatch with roof rack is 82.1” according to this. Guess I’m gonna have to level the house now....
Deano Bronc, CCDetroit and 5 others

Rank V

Jan 29, 2021

#18
Man, if these numbers are true, I need to figure something out. Height of my garage door is 82”. Height of 4dr squatch with roof rack is 82.1” according to this. Guess I’m gonna have to level the house now....

Can you remove the top trim and rip it down? That's why I have to do for my FJ40 @ 82" high
Reserved 7/14/20 - Ordered Converted 1/19/21: 2 Dr Cyber Orange Badlands w/ 2.3L, 7MT, MGV, High, Tow
Tentative Build Date - Week of 11/15/21
Toys: 1971 FJ40 - 1989 Toyota Pickup - 1998 C5 vert

Rank VII

Jan 29, 2021

#19
Man, if these numbers are true, I need to figure something out. Height of my garage door is 82”. Height of 4dr squatch with roof rack is 82.1” according to this. Guess I’m gonna have to level the house now....

Can you remove the top trim and rip it down? That's why I have to do for my FJ40 @ 82" high

Anything’s possible. I’m thinking I’ll only need the roof rack for the winter to hold a cargo box for skis etc. if I have to remove the cargo box to get in the garage, another couple screws to remove the rack isn’t gonna hurt. I was planning to see what the aftermarket came out with for racks anyway so I’ll deal with it then. All I know is my baby is going to park in the garage! =]
Deano Bronc, Gutter Clown
