Windows not going up all the way after shutting door

FlaBroncoGirl
May 25, 2023

Rank V

May 25, 2023

Hi all,

We have a 2 door hard top Big Bend.

Ya know how the window goes down slightly when you open the doors...our driver side window wouldn't go back up all the way after the door was shut.

Husband calls the dealership and he instructs him how to "reset" the window by putting it down all the way and hold it down until you hear a click, then putting it up all the way and holding it there until you hear a click. this would reset the window???

He did that, heard no clicks but now it's working correctly again. Worried if this will be an issue going forward.

Caveat, when we first picked her up, the passenger side window motor was broken and had to be replaced, so we're a little gun-shy LOL
Bronco birthday 2/15/22 - 2 Door Hardtop - Area 51 - Big Bend - 2.7 V6 named Blue. She's my beautiful baby!
Roughstock11

🐎 SHIT'LLBUFFOUT 🐎

May 25, 2023

#1
I've heard that this is the fix, and I would try it. I have not had to use it, until recently. Back window on driver's side comes right back down when you hit the button for it to go up - gets to the top and it comes right back down. So, I tried this trick on Sunday and I can't. I can hold it down, but when it is time to hold it when it is up, the window comes right back down while I'm holding the button.
Then, the front passenger window started doing this 2 days ago. But, now the back window is working.

Most likely not the switch. My husband thinks that there is a module for the windows that control the part where they drop and go back up when opening and closing the doors.

With all of the electronics on these, I expect that there will be little "what the heck is that" and then it is gone. I will start worrying when the warranty expires.
Hi y'all, Lauri here and I am the proud owner of a MY21 Badlands, SAS, 2.7 auto, 4 door, soft top, Cactus Gray, no reservation, ordered 9/11/21, Took delivery 1/8/22!
Roughstock11, Sven

GASQUATCH

May 25, 2023

#2
seems like there was a reset on window limit for this, but cant find the thread about it. Might try searching here or googling it...
I dont think it was a big deal for a reset.
2022 Badlands / Sasquatch / 2.7 / Auto / 2DR / MIC / Bestop Trektop / LUX / 12000# Badland winch / in Hot Pepper Red
Roughstock11, Darrel

Knows the cheat code.

May 25, 2023

#3
Roll the window down all the way.
Roll it back up, hold the button for 5 seconds after it goes up.
Then roll it down and hold the button for 5 seconds after it is all the way down.

This should do it.
Feels like my Bronco was meant to be loved and used for what it was made for.
Roughstock11, PSUTE and 1 other
Moderator

Off-Roadeo Ranger

May 26, 2023

#4
Here are the full instructions from the Owner's Manual:

Resetting One-Touch Close
Carry out all steps within 30 seconds of
starting the sequence.
1. Fully open the window.
2. Lift and hold the window control until the window is fully closed. Keep the window control held for a two seconds
3. Press and hold the window control until the window is fully open. Keep the
window control pressed for two
seconds.
4. Lift and hold the window control until the window is fully closed. Keep the window control held for a two seconds
Note: Repeat the procedure if the window does not close when you use one-touch.
Darrel, Xpathf1nderX and 1 other

Wank ER

May 26, 2023

#5
Same issue with my driver door. We had heavy rains this year and water would come through. There is a spot of upholstered metal on the door side of the driver seat that has rusted because of that. Dealer cannot seem to fix it, or it comes and goes.
2021 FE Cactus Grey
Darrel

Rank VI

May 26, 2023

#6
This could be a defective door latch. The window drop down/up is controlled by a switch in the door latch. See the 1st few seconds of this video.
2Dr Badlands - MIC - Area51 - 2.7 Auto - Sasquatch - MGV - Lux - Headliner - Towing - Floormats
Reserved 7/20/20 Delivered 5/6/23
"Ford said, hey we're gonna fulfill all reservations and pre-orders before we build stock units."
Darrel

No Ragerts

May 26, 2023

#7
@TorgSurv provided the solution to this common problem

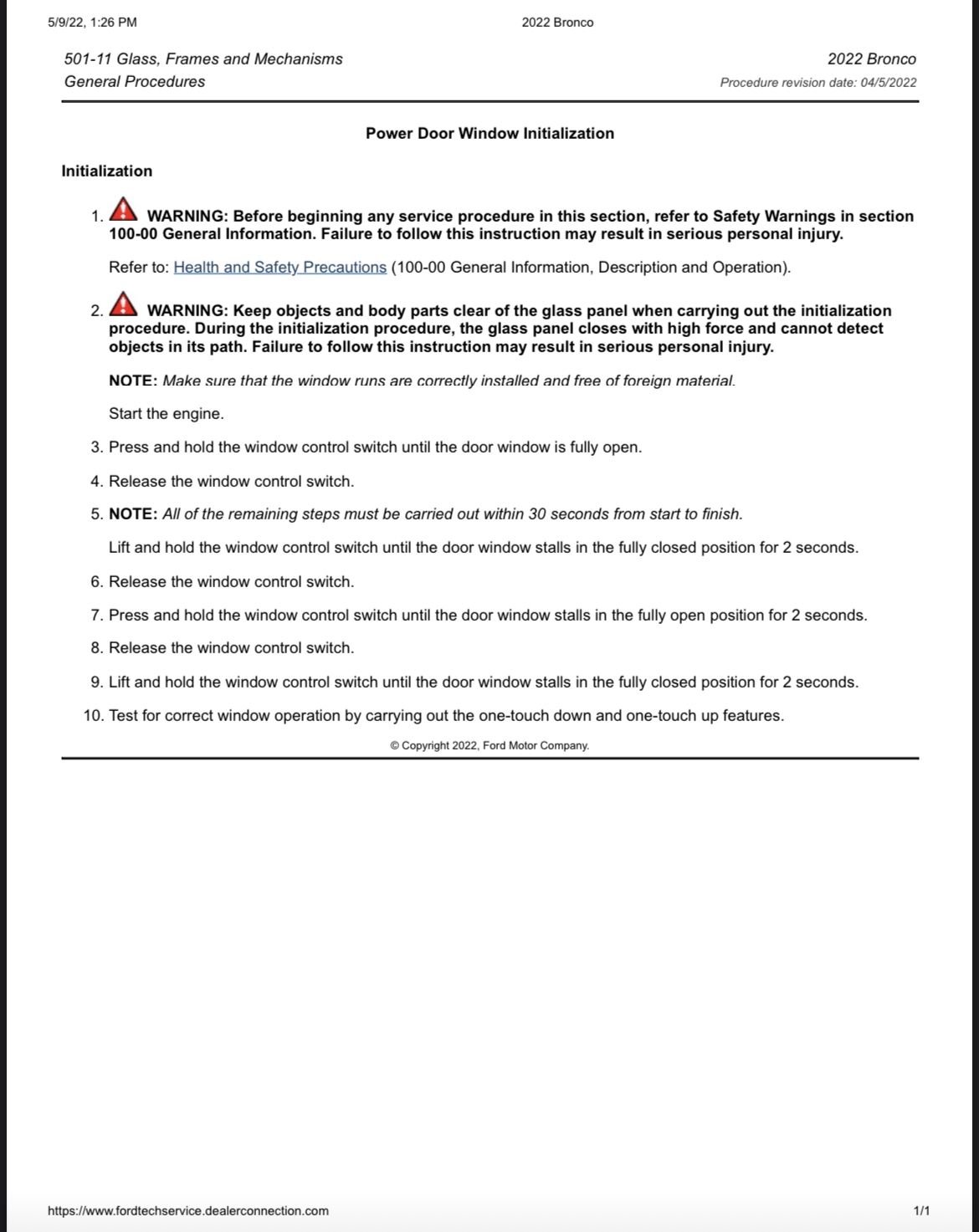

Here’s the instruction page for Power Door Window Initialization from the manual…

[*]2021 Badlands / 4dr / Sasquatch / 2.7 / Soft Top / Carbonized Grey / MGV (DOB 9/14/2021)
[*]2023 Raptor / Shadow Black / MGV (DOB 8/30/23) patiently waiting for delivery…
Darrel, TorgSurv and 1 other

🐎 SHIT'LLBUFFOUT 🐎

May 27, 2023

#8
I've heard that this is the fix, and I would try it. I have not had to use it, until recently. Back window on driver's side comes right back down when you hit the button for it to go up - gets to the top and it comes right back down. So, I tried this trick on Sunday and I can't. I can hold it down, but when it is time to hold it when it is up, the window comes right back down while I'm holding the button.
Then, the front passenger window started doing this 2 days ago. But, now the back window is working.

Most likely not the switch. My husband thinks that there is a module for the windows that control the part where they drop and go back up when opening and closing the doors.

With all of the electronics on these, I expect that there will be little "what the heck is that" and then it is gone. I will start worrying when the warranty expires.
All 4 windows working properly today. Go figure. :unsure:
Hi y'all, Lauri here and I am the proud owner of a MY21 Badlands, SAS, 2.7 auto, 4 door, soft top, Cactus Gray, no reservation, ordered 9/11/21, Took delivery 1/8/22!
TorgSurv, Bschurr

Rank V

Jun 08, 2023

#9
Thanks for these posts. Both my Bronco & my son’s Bronco’s windows were doing this today. We were wondering, WTH… 😄
Darrel

Rank VI

Jun 16, 2023

#10
I've only had mine for a week, but the windows are annoying. There is more wind noise in the Bronco then my JK, and I attribute it to the doors with no upper frame. They don't seal as well. The noise I had in the JK was more road then wind. I would like to see the numbers for folks that take the doors off, and of that number how many are taken off away from home. I was told that's why they made the frame less door, so they were easier to store. The up and down every time you open and close is a pain. IMO
Darrel

Rank V

Jul 03, 2023

#11

Rank 0

Jul 03, 2023

#12
Hi all,

We have a 2 door hard top Big Bend.

Ya know how the window goes down slightly when you open the doors...our driver side window wouldn't go back up all the way after the door was shut.

Husband calls the dealership and he instructs him how to "reset" the window by putting it down all the way and hold it down until you hear a click, then putting it up all the way and holding it there until you hear a click. this would reset the window???

He did that, heard no clicks but now it's working correctly again. Worried if this will be an issue going forward.

Caveat, when we first picked her up, the passenger side window motor was broken and had to be replaced, so we're a little gun-shy LOL
Hold window button down & count to 5 Then put up holding button and cound to 5. It resets window . MinMine did the same thing!

Rank 0

Jul 14, 2023

#13
This has been happening a lot to me lately. (5 times this week!) I called the dealer and she said that I needed to leave Paul at the dealer for about a week before they could get to it. Said if I didn't want to do that I could shop another dealer (Randal Reed Planet Ford, Humble, TX). I called Ford Motor Company and the lady said that they have not had any complaints. She said she would file a report. Keep in mind she NEVER asked me what the issue was! Complain to Ford! 800-392-3673. Holding the window buttons in each direction for 10 seconds seems to reset it but mine have been happening more often.
Darrel

Rank VI

Jul 14, 2023

#14
This has been happening a lot to me lately. (5 times this week!) I called the dealer and she said that I needed to leave Paul at the dealer for about a week before they could get to it. Said if I didn't want to do that I could shop another dealer (Randal Reed Planet Ford, Humble, TX). I called Ford Motor Company and the lady said that they have not had any complaints. She said she would file a report. Keep in mind she NEVER asked me what the issue was! Complain to Ford! 800-392-3673. Holding the window buttons in each direction for 10 seconds seems to reset it but mine have been happening more often.
Hi there. This window concern doesn’t sound like something we want you to experience with your Bronco. Could you please send us a PM with your VIN and the name and location of your Ford dealer? To send a private message, just click on our username and select "Start Conversation". I'd be happy to look into how I can assist you on my end.
Gyoja

Rank 0

Jul 14, 2023

#15
My driver door had to have a module replaced and the passenger rear now hits the top a drops all the way down. Reset don’t work and I’m going on a 3500 mile trip back home in a few weeks and it’s very annoying. Lost faith in dealers years ago and I’ve been reassured as why just recently when they had it for 6 wks and still didn’t fix a parasitic draw somewhere. I believe I found it and it’s the acm. In that 6 wks they replaced driver window mod, battery, alternator, front drive shaft, rear diff seal and something else I can’t recall. Fords QC and all the other distributors sucks monkey nuts. My Dana rear axle plug welds look like a blind monkey did them and I’m just waiting to twist a tube. Never again Ford will I buy anything from ya. 21 blk diamond2.3 with under 20k by the time I return will be up for sale when I return to MI.
Darrel, Chief Ron

Rank 0

Jul 16, 2023

#16
I had this happen after reinstalling my door, and it was the connector not connected 100%. Slight push and a click and it was fine.
Corncob, Darrel and 1 other

Rank IV

Jul 17, 2023

#17
My driver door had to have a module replaced and the passenger rear now hits the top a drops all the way down. Reset don’t work and I’m going on a 3500 mile trip back home in a few weeks and it’s very annoying. Lost faith in dealers years ago and I’ve been reassured as why just recently when they had it for 6 wks and still didn’t fix a parasitic draw somewhere. I believe I found it and it’s the acm. In that 6 wks they replaced driver window mod, battery, alternator, front drive shaft, rear diff seal and something else I can’t recall. Fords QC and all the other distributors sucks monkey nuts. My Dana rear axle plug welds look like a blind monkey did them and I’m just waiting to twist a tube. Never again Ford will I buy anything from ya. 21 blk diamond2.3 with under 20k by the time I return will be up for sale when I return to MI.

That sux…. Diffs are actually a Dana product and not welded by Ford but i do understand your frustration and can’t say I blame you. 🐎
2023 Wildtrak, sas, mid, soft top. Not crazy offroader…. Just a normal trail junkie

Rank 0

Jul 17, 2023

#18
oh i totally get it, but ford is still installing them on their vehicle. sorry op for the derailment
Chief Ron

Rank IV

Jul 17, 2023

#19
Definitely not making excuses for the primary manufacturer but when suppliers as well as end item assemblers do batch inspections, 1 in xx number, stuff slips through. I have dealt with issues as well whether it was Ford or Jeep and even Toyota… it’s frustrating as hell especially when we spend so much of our hard earned money on something we want and it ends up being a 💩 show. Sometimes we have to adjust the dope and fire again. Hope all works out for you! 🐎
2023 Wildtrak, sas, mid, soft top. Not crazy offroader…. Just a normal trail junkie
