Saw this screen on a BN Video, but can’t find it on my Bronco

Bluestreak57

Dec 28, 2023

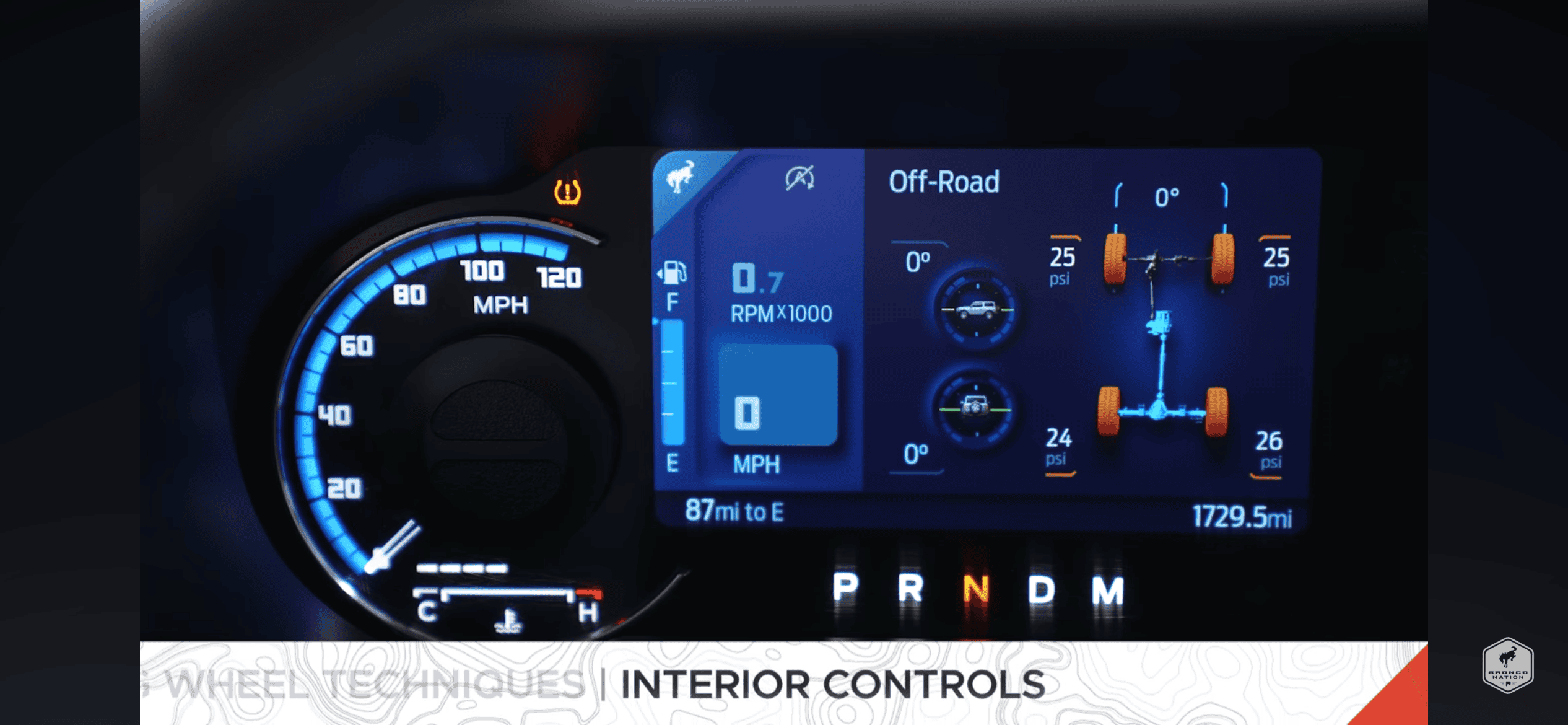

I’ve been wandering through the BN off-roading videos, and saw this screen in numerous videos…

However, I can’t seem to replicate the screen in my 23 Outer Banks Sasquatch (with Lux). I can get each of the off-road functions individually on the far right of the screen, but they always share space with digital speedo and digital tach…

I’ve tried (sitting in driveway) putting in every GOAT mode, and tried different 4x4 settings, but can’t seem to get this screen…

Can anyone help??
TIA

Maybe a function only available on manual tranny?

SUCCESS!!
What I figured out is if you turn off adaptive cruise (regular cruise is fine) AND turn off the lane keeping system, the vehicle graphic that usually sits above the digital speedo disappears, leaving room for the digital tach to move there, and allowing the off-road screen to fill all the remaining space… (as it above)… also the distance limiter thingy… once the car above (or left if) the speedo is gone, then off road status in the menu will give you the whole enchilada… orange tires above are because of low psi…

WOOOOHOOOOOOOOO
I did this in my driveway in Normal mode, 2H

Riding OB1, 23 4- door Outer Banks, SAS, MOD, MIC, Lux, Ordered 10/20/22, delivered 1/13/23

Jakob1972, ronbbaker

Sort by date

Reaction Score

Dec 29, 2023

I've seen that screen in my Badlands. That screen may only appear when the lockers are engaged. Notice the low tire pressures and the autostop feature has been disabled. Just spitballing here.

Chris here. I drive "Lebowski," a 2-door Velocity Blue 2023 Ford Bronco Badlands Sasquatch. Lux package. 2.7L V6. Automatic transmission.

Darrel, Bluestreak57

Dec 29, 2023

That looks really useful. I’ve never seen it before, but will search for it. Will update here if I find it.

Darrel

Dec 29, 2023

I think it’s in the menu. You can make it one of your “My View” screens.

Jakob1972, Darrel

Dec 29, 2023

I’m pretty sure you only get that if in 4 low and it engages the off road screen as an option like that

Darrel, Bluestreak57

Dec 29, 2023

THANKS FOR THE IDEAS… Answer is in the original post…

Riding OB1, 23 4- door Outer Banks, SAS, MOD, MIC, Lux, Ordered 10/20/22, delivered 1/13/23

Darrel, Deano Bronc

Dec 29, 2023

Bluestreak57
I’ve been wandering through the BN off-roading videos, and saw this screen in numerous videos…

However, I can’t seem to replicate the screen in my 23 Outer Banks Sasquatch (with Lux). I can get each of the off-road functions individually on the far right of the screen, but they always share space with digital speedo and digital tach…

I’ve tried (sitting in driveway) putting in every GOAT mode, and tried different 4x4 settings, but can’t seem to get this screen…

Can anyone help??
TIA

Maybe a function only available on manual tranny?

SUCCESS!!
What I figured out is if you turn off adaptive cruise (regular cruise is fine) AND turn off the lane keeping system, the vehicle graphic that usually sits above the digital speedo disappears, leaving room for the digital tach to move there, and allowing the off-road screen to fill all the remaining space… (as it above)

WOOOOHOOOOOOOOO
I did this in my driveway in Normal mode, 2H

Score.....good work Dick Tracy! I was going to mess with it tomorrow after it warmed up.

21 Badlands, 2 dr, four banger, slushbox, SAS. PERFECT!

Darrel, Bluestreak57

Dec 29, 2023

Now if we could get rid of the digital mph reading or better yet , change the analog speedo to a tach. I don't know who at Ford thought we always needed an analog and a digital mph reading on the cluster at the same time ALWAYS . Such a waste of useable real estate.

2Dr Badlands - MIC - Area51 - 2.7 Auto - MGV - Headliner - High Pkg
Reserved 7/20/20 Delivered 5/6/23
"Ford said, hey we're gonna fulfill all reservations and pre-orders before we build stock units."

ronbbaker, Darrel

Dec 29, 2023

Rydfree
Now if we could get rid of the digital mph reading or better yet , change the analog speedo to a tach. I don't know who at Ford thought we always needed an analog and a digital mph reading on the cluster at the same time ALWAYS . Such a waste of useable real estate.

I agree. The only thing I really hate about the Bronco is the gage cluster or lack thereof.

Speedo is too low and can’t be seen. Analog tach - get rid of that digital bar thing.

Rydfree, Sven

Dec 29, 2023

@TK1215 is there a way for me to turn comments off on a thread I begin? I started this thread to answer a question, and as happens sometimes the question is answered and the thread is wandering where I didn’t care to go. Thanks

Riding OB1, 23 4- door Outer Banks, SAS, MOD, MIC, Lux, Ordered 10/20/22, delivered 1/13/23

Dec 29, 2023

#10

Bluestreak57
@TK1215 is there a way for me to turn comments off on a thread I begin? I started this thread to answer a question, and as happens sometimes the question is answered and the thread is wandering where I didn’t care to go. Thanks

No you're stuck with us. Get use to it.
What do you do at work , just walk away after someone answers your question ? That's rude,lol

2Dr Badlands - MIC - Area51 - 2.7 Auto - MGV - Headliner - High Pkg
Reserved 7/20/20 Delivered 5/6/23
"Ford said, hey we're gonna fulfill all reservations and pre-orders before we build stock units."

Darrel, Deano Bronc

Dec 29, 2023

#11

Mods can lock a thread if you're done with it, @Bluestreak57

~~2021 Oxford White 2-door non-Sas Mid package 2.7L/10-speed Badlands with MIC top~~
2021 Carbonized Gray 2-door Sas High package 2.7L/10-speed Badlands with MIC top
Keeping the Jeeps: ~~stock '89 XJ, 3.5" lifted '00 XJ on 31s and~~ '89 MJ

Sven

Dec 29, 2023

#12

Bluestreak57
@TK1215 is there a way for me to turn comments off on a thread I begin? I started this thread to answer a question, and as happens sometimes the question is answered and the thread is wandering where I didn’t care to go. Thanks

Why do you want to shut it down. Most of the time there is more than one way to skin a cat. To get to that screen you do not need to do all that you say. I use this screen when off road. All you do is press your main menu button on the steering wheel, right side (the button with 3 lines), select off-road, then select off road status. Holly crap, there it is pressing only 3 buttons! If you don’t see these selections, toggle up or down with the up and down arrows.

‘23 Hot Pepper Red Wildtrak 2.7L-V6 4 dr. MIC Sas Lux and Lovin’ it!!

Rydfree, Deano Bronc

Dec 29, 2023

#13

Bluestreak57
@TK1215 is there a way for me to turn comments off on a thread I begin? I started this thread to answer a question, and as happens sometimes the question is answered and the thread is wandering where I didn’t care to go. Thanks

Where's your sense of adventure? Yeah, these threads tend to have a mind of their own, but you never know where they will lead you.
Kinda like following your OnX down a trail but you happen to see an unmarked trail going off to the right so you decide to check it out. Sometime it leads to the most beautiful vista you've ever seen or sometimes it leads to a big mosquito infested mud hole you get stuck in and can't get out. You can never tell about these things.:unsure:

If you still want it locked, just say the word.:D

2022 Bronco Badlands, 4D, Hot Pepper Red, 2.7, Squatch, Lux, and MIC.
7/13/2020 10:04pm reservation. Blend 6/16/2022 Delivered 6/26/2022.
Dealership - Stephen's Auto Center.

ressig1, Laura

Dec 29, 2023

#14

Rydfree
No you're stuck with us. Get use to it.
What do you do at work , just walk away after someone answers your question ? That's rude,lol

Uh, I did say thank you before walking away…

Riding OB1, 23 4- door Outer Banks, SAS, MOD, MIC, Lux, Ordered 10/20/22, delivered 1/13/23

Sven, Rydfree

Dec 29, 2023

#15

Sam I Am 1966
Why do you want to shut it down. Most of the time there is more than one way to skin a cat. To get to that screen you do not need to do all that you say. I use this screen when off road. All you do is press your main menu button on the steering wheel, right side (the button with 3 lines), select off-road, then select off road status. Holly crap, there it is pressing only 3 buttons! If you don’t see these selections, toggle up or down with the up and down arrows.

Thanks! Tried all that and had no joy until I turned lane keeper off.

You are right, more than one way to skin a cat, but I had solved my problem and do was moving on… really didn’t care to rehash all that’s wrong with the dash display

Riding OB1, 23 4- door Outer Banks, SAS, MOD, MIC, Lux, Ordered 10/20/22, delivered 1/13/23

Sven, Darrel

Dec 29, 2023

#16

Rydfree
No you're stuck with us. Get use to it.
What do you do at work , just walk away after someone answers your question ? That's rude,lol

Well, I’ve been stuck with worse so I’m ok with this… 😂

Riding OB1, 23 4- door Outer Banks, SAS, MOD, MIC, Lux, Ordered 10/20/22, delivered 1/13/23

Sven, Deano Bronc

Dec 29, 2023

#17

Just want to jump on here to whine. I think I remember seeing this screen in 4 low.
Bad hips, one replaced, other one is in 2 weeks. I haven't had my girl in 4 low since Labor Day 2022. I hope to get her out again by April.
Thank you!

Hi y'all, Lauri here and I am the proud owner of a MY21 Badlands, SAS, 2.7 auto, 4 door, soft top, Cactus Gray, no reservation, ordered 9/11/21, Took delivery 1/8/22!

Bluestreak57, Sven

Dec 29, 2023

#18

Darrel
Just want to jump on here to whine. I think I remember seeing this screen in 4 low.
Bad hips, one replaced, other one is in 2 weeks. I haven't had my girl in 4 low since Labor Day 2022. I hope to get her out again by April.
Thank you!

Whine-worthy! I hope your surgery and that healing goes well, Lauri, and that you're in the Bronco off-road in a few months.

Darrel, Sven

Dec 31, 2023

#19

Rydfree
Now if we could get rid of the digital mph reading or better yet , change the analog speedo to a tach. I don't know who at Ford thought we always needed an analog and a digital mph reading on the cluster at the same time ALWAYS . Such a waste of useable real estate.

Yes! Especially with the manual transmission, I really hate the little bar tach. Would love to get an “over the air” update that gives some more options for a digital sweep tach and larger gear indicator.
