Name that Sensor ...

Q1svt
Aug 14, 2026

Rank III

Yesterday at 7:55 pm

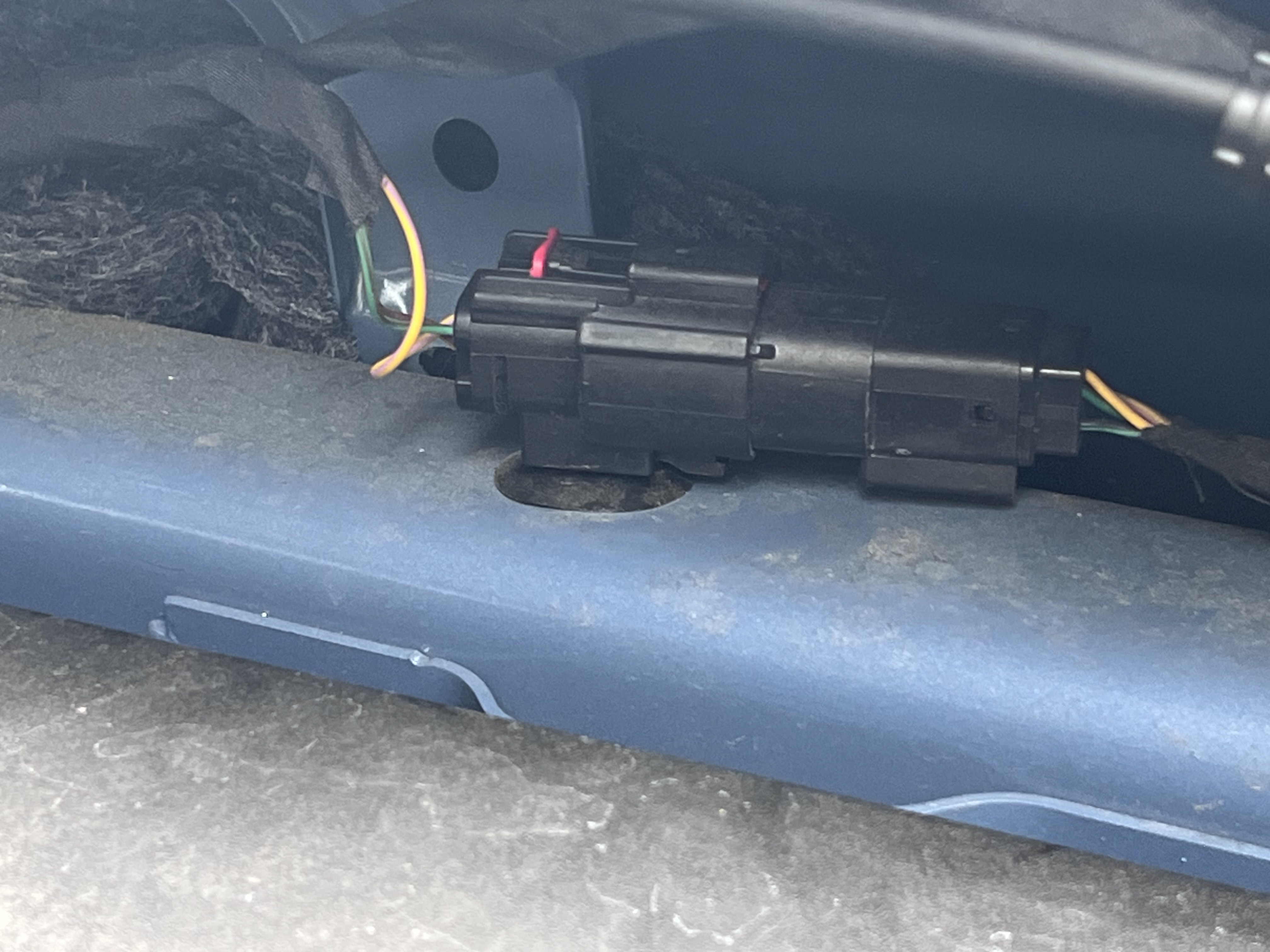

Looking to do some unfitting for lights and other things… 25 Badlands (picture)

Trying to find places for some electrical stuff and looking where that (?) sensor is located. Didn’t want to move it, until knowing what it does.

Believe it is just an outside air temperature sensor

Thanks for playing, name that sensor.

Attachments

IMG_9467.jpeg 4032 x 3024 · 2.79 MB

Gladesmen

Yesterday at 8:41 pm

#1
Q1svt
Looking to do some unfitting for lights and other things… 25 Badlands (picture)

Trying to find places for some electrical stuff and looking where that (?) sensor is located. Didn’t want to move it, until knowing what it does.

Believe it is just an outside air temperature sensor

Thanks for playing, name that sensor.

Is that a sensor? It just looks like a quick connector for some wiring.
I believe the outside air temp sensor is in the drivers mirror.

I need to go check mine to see if I have that, and where it goes.
BN 1100, Desert Sand Everglades. Reservation 7/30/20. ordered 1/22/21, reordered 10/15/21 dropped tow and hard top, reordered 3/9/22 changed to Everglades. production date 9/7/22 rescheduled 9/14/22 completed 9/26/22, shipped 10/7/22, arrived 10/31/22, delivered 11/03/22

Rank III

Yesterday at 9:15 pm

#2
Yes it does look like a connector but the wiring just does a loop in and around back …. Moving a connector is not a problem then

Gladesmen

Yesterday at 10:45 pm

#3
Hmm, Maybe its a dummy plug. some models have something that connects there and others have a dummy? And I don't have that connector. MY22 Everglades so all we have is Mid package.
BN 1100, Desert Sand Everglades. Reservation 7/30/20. ordered 1/22/21, reordered 10/15/21 dropped tow and hard top, reordered 3/9/22 changed to Everglades. production date 9/7/22 rescheduled 9/14/22 completed 9/26/22, shipped 10/7/22, arrived 10/31/22, delivered 11/03/22

Rank III

Today at 12:31 am

#4
… maybe it’s new for 2025

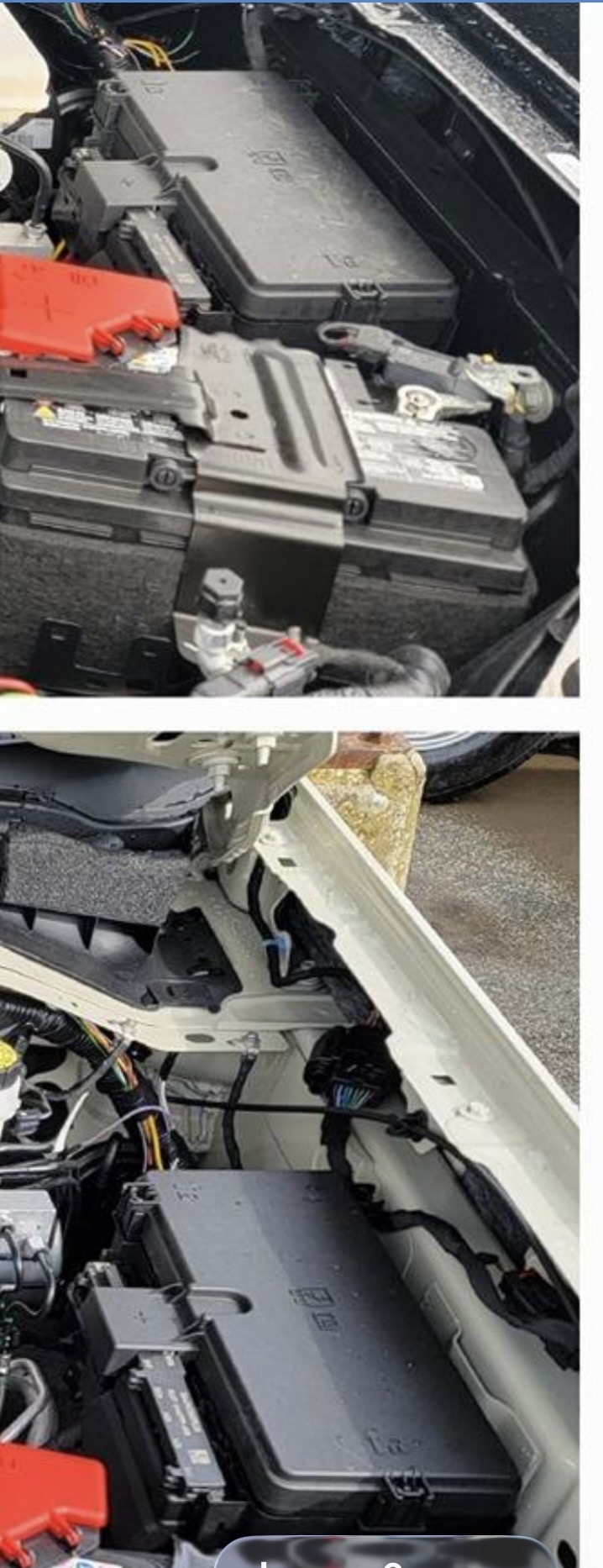

Found a combination picture of the 2024 2.3l to when the 2025 2.3l was released.
24 top, 25 bottom

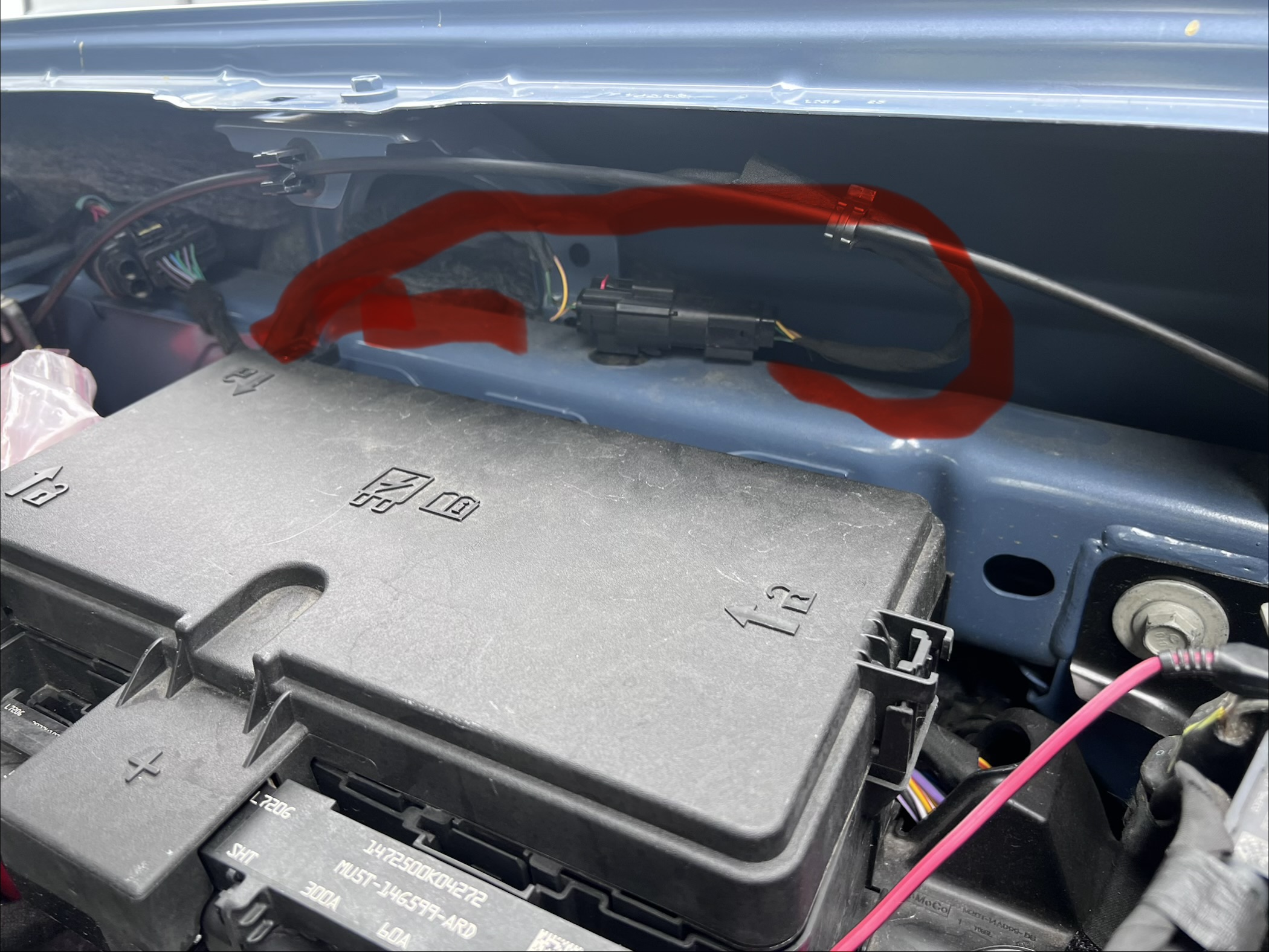

This is picture from OP, but highlighted the wiring loop
