If You Have Carpet

MIGeezer
May 23, 2023

Rank V

May 23, 2023

I have a Badlands, w/Lux built, waiting for delivery. If you have the carpet option, are the floor plugs to drain water still in the floor?

Thanks Dave
Last edited by a moderator: May 23, 2023

Burrito Connoisseur

May 23, 2023

#1
They are not.

The holes in the floor of the Bronco itself are still there, but they are under the carpeting and you can't actually get to them.
2022 4dr Badlands, 2.3L Manual, Mid pkg
YouTube: youtube.com/@ragnarkon
Instagram: @ragnar.kon
Moving Chicane, Laura

Ultimate Cosmic Power!

May 23, 2023

#2
That's one thing I love. No carpet! Rubber floor, easy cleaning!
the poacher, Darrel
Moderator Staff member

Administrator

May 23, 2023

#3
MIGeezer
I have a Badlands, w/Lux built, waiting for delivery. If you have the carpet option, are the floor plugs to drain water still in the floor?

Thanks Dave

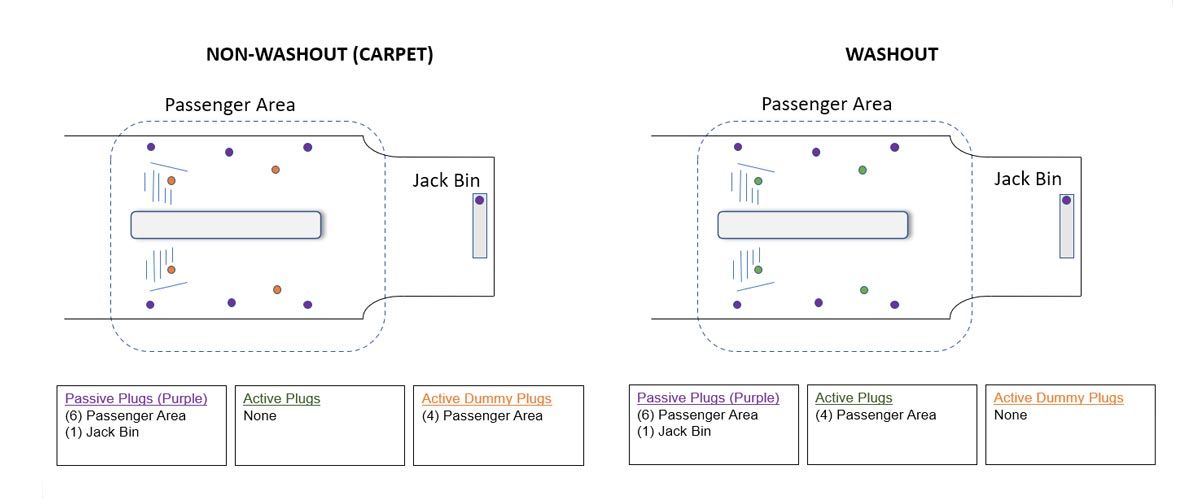

I've got a diagram of where the non-washout (carpeted Broncos) drain plugs are here, for the curious, but @RagnarKon is right.

2021 Oxford White 2-door non-Sas Mid package 2.7L/10-speed Badlands with MIC top
2021 Carbonized Gray 2-door Sas High package 2.7L/10-speed Badlands with MIC top
Keeping the Jeeps: stock '89 XJ and 3.5" lifted '00 XJ on 31s and '89 MJ
the poacher, Moving Chicane

🐎Miss my Bronco Buddy🐎

May 23, 2023

#4
Wolf
That's one thing I love. No carpet! Rubber floor, easy cleaning!
I never thought about that - but the Badlands Sports have the rubber floor too. That's cool!
Hi y'all, Lauri here and I am the proud owner of a MY21 Badlands, SAS, 2.7 auto, 4 door, soft top, Cactus Gray, no reservation, ordered 9/11/21, Took delivery 1/8/22!

Burrito Connoisseur

May 23, 2023

#5
Laura
I've got a diagram of where the non-washout (carpeted Broncos) drain plugs are here, for the curious, but @RagnarKon is right.plugs-difference.jpeg

Ooo that's a handy diagram. *Steals*
2022 4dr Badlands, 2.3L Manual, Mid pkg
YouTube: youtube.com/@ragnarkon
Instagram: @ragnar.kon
Deano Bronc, Laura
Moderator Staff member

Administrator

May 23, 2023

#6
RagnarKon
Ooo that's a handy diagram. *Steals*
I wasn't a graphic design dropout for nothing!
2021 Oxford White 2-door non-Sas Mid package 2.7L/10-speed Badlands with MIC top
2021 Carbonized Gray 2-door Sas High package 2.7L/10-speed Badlands with MIC top
Keeping the Jeeps: stock '89 XJ and 3.5" lifted '00 XJ on 31s and '89 MJ
Micahman, Rydfree

STRESS FREE !!!

May 24, 2023

#7
Laura
I've got a diagram of where the non-washout (carpeted Broncos) drain plugs are here, for the curious, but @RagnarKon is right.

Hmmmm.....
2023 Wildtrak, Iconic Silver, Hard top, ordered 10/5, built 12/13, delivered 1/18

Ultimate Cosmic Power!

May 24, 2023

#8
Darrel
I never thought about that - but the Badlands Sports have the rubber floor too. That's cool!
Go figure! It came with carpeted mats. I had to add the Weather Tech! I hate carpets. It was horrible when the girls were younger. Come to think of it? It's horrible while they are older, because they don't clean their cars, I do!
Deano Bronc, Darrel

Rank V

May 24, 2023

#9
Laura
I've got a diagram of where the non-washout (carpeted Broncos) drain plugs are here, for the curious, but @RagnarKon is right.

Thanks for the diagram. Can you tell me if the carpet is installed as loose as in the JK Jeeps? If that's the case then you can remove the carpet in minutes. So if the plugs are there and work this will be OK.
Moderator Staff member

Administrator

May 24, 2023

#10
MIGeezer
Thanks for the diagram. Can you tell me if the carpet is installed as loose as in the JK Jeeps? If that's the case then you can remove the carpet in minutes. So if the plugs are there and work this will be OK.
I've never tried to pull up the carpet in a Bronco yet, so someone with carpet may want to chime in. I'm also curious to how close the active dummy plugs are to active plugs in function.
2021 Oxford White 2-door non-Sas Mid package 2.7L/10-speed Badlands with MIC top
2021 Carbonized Gray 2-door Sas High package 2.7L/10-speed Badlands with MIC top
Keeping the Jeeps: stock '89 XJ and 3.5" lifted '00 XJ on 31s and '89 MJ

Rank V

May 24, 2023

#11
So what does it mean passive plugs?
Moderator Staff member

Administrator

May 24, 2023

#12
From talking to Esteban back in the day, the active dummy plugs do drain water underneath the MGV/ carpet, in "emergency" situations.

So looking at the diagram then going out to my Bronco, the passive plugs are hard to find without pulling material up.

Here's from inside, where you can only see the active plug. A passive plug should be further up in the foot well, closer to the door.


From the exterior (look for the daylight to see the active plug to get your bearings)

2021 Oxford White 2-door non-Sas Mid package 2.7L/10-speed Badlands with MIC top
2021 Carbonized Gray 2-door Sas High package 2.7L/10-speed Badlands with MIC top
Keeping the Jeeps: stock '89 XJ and 3.5" lifted '00 XJ on 31s and '89 MJ
Porkchop4464, Deano Bronc

Rank V

May 26, 2023

#13
thanks

Rank VI

May 30, 2023

#14
Wolf
Go figure! It came with carpeted mats. I had to add the Weather Tech! I hate carpets. It was horrible when the girls were younger. Come to think of it? It's horrible while they are older, because they don't clean their cars, I do!
I’d have added weather tech even if I had MGV just to not wear holes in the MGV.
22 | Badlands | Cyber | NonSAS | MIC | 2.7 Auto | Lux | Leather | Tow |
Res: 07/27/2020, Order: 11/04/2021, Sched: 8/8, Re-Sched: 8/15, In-Prod: 8/15, Blend: 8/19, Mods: 8/23, Chip Hold: 9/29, Built: 10/3, Ship: 10/4, Train #: 10/5, Delivered: 10/20.

Rank V

Nov 22, 2023

#15
So funny, while under the truck many times, I have passed over those plastic caps from the bottom. I always wondered what the hell were they for.

Duh!

Sometimes things really are right in front of your face!

Rank V

Nov 22, 2023

#16
Laura
From talking to Esteban back in the day, the passive plugs do drain water underneath the MGV/ carpet, in "emergency" situations.

So looking at the diagram then going out to my Bronco, the passive plugs are hard to find without pulling material up.

Here's from inside, where you can only see the active plug. A passive plug should be further up in the foot well, closer to the door.


From the exterior (look for the daylight to see the active plug to get your bearings)

PXL_20230524_195052018.jpgSo, here is another question since I don't have the rubber floors. With the ridges and ribs in the picture, it looks as if it is actually formed hard plastic. Is it more like a rubber floor matt or a hard piece of plastic (the entire floor liner)?
Moderator Staff member

Administrator

Nov 22, 2023

#17
It's not as rubbery as some without it might think but it is also not close to hard plastic. It flexes a lot in the rear footwell (like you can press it down about a quarter to half an inch in places) and as it wraps up under the rear seats. I wish I could post a video because then you could get a better idea of what I'm trying to explain. But you can feel it as a layer as you flex it down to the floor pan.

Adding a pic of how it wraps in the rear.
2021 Oxford White 2-door non-Sas Mid package 2.7L/10-speed Badlands with MIC top
2021 Carbonized Gray 2-door Sas High package 2.7L/10-speed Badlands with MIC top
Keeping the Jeeps: stock '89 XJ and 3.5" lifted '00 XJ on 31s and '89 MJ

Rank II

Nov 22, 2023

#18
I wish the outer banks had that option, but what are active dummy plugs? Is it like the other drives on the road, active dummies. lol
23 SAS Badlands 2D Area 51
Moderator Staff member

Administrator

Nov 22, 2023

#19
BroncoOBX
I wish the outer banks had that option, but what are active dummy plugs? Is it like the other drives on the road, active dummies. lol

🙈
They reportedly will drain if water gets in a carpeted Bronco, kind of like a weep hole.
2021 Oxford White 2-door non-Sas Mid package 2.7L/10-speed Badlands with MIC top
2021 Carbonized Gray 2-door Sas High package 2.7L/10-speed Badlands with MIC top
Keeping the Jeeps: stock '89 XJ and 3.5" lifted '00 XJ on 31s and '89 MJ
