Bronco Raptor Potable Water System - The easiest way to carry and dispense water from your rig

swamp2

Oct 06, 2025

I finally finished off the installation of my Engineered Off-Road Systems Potable Water System (aka PWS).

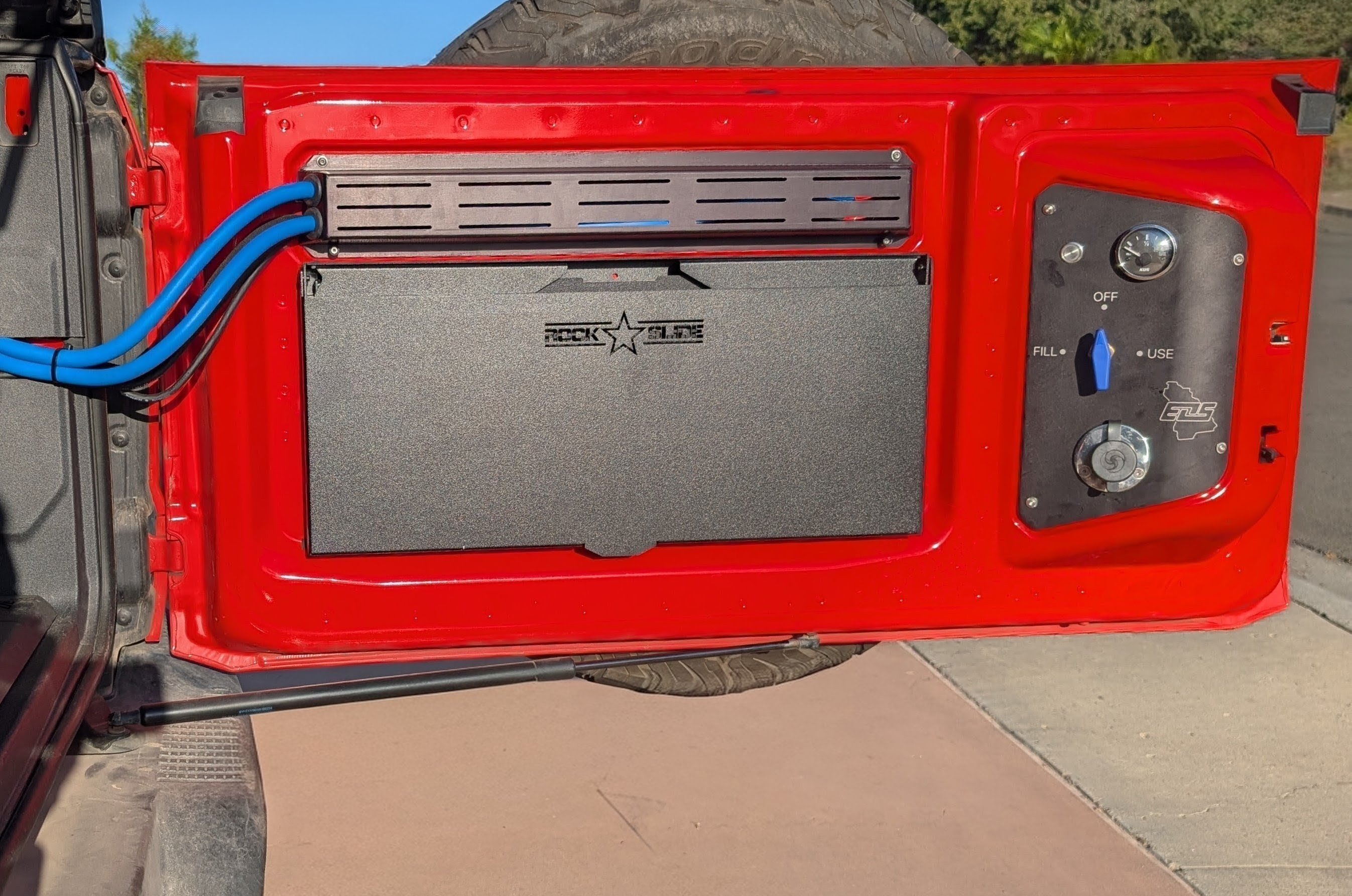

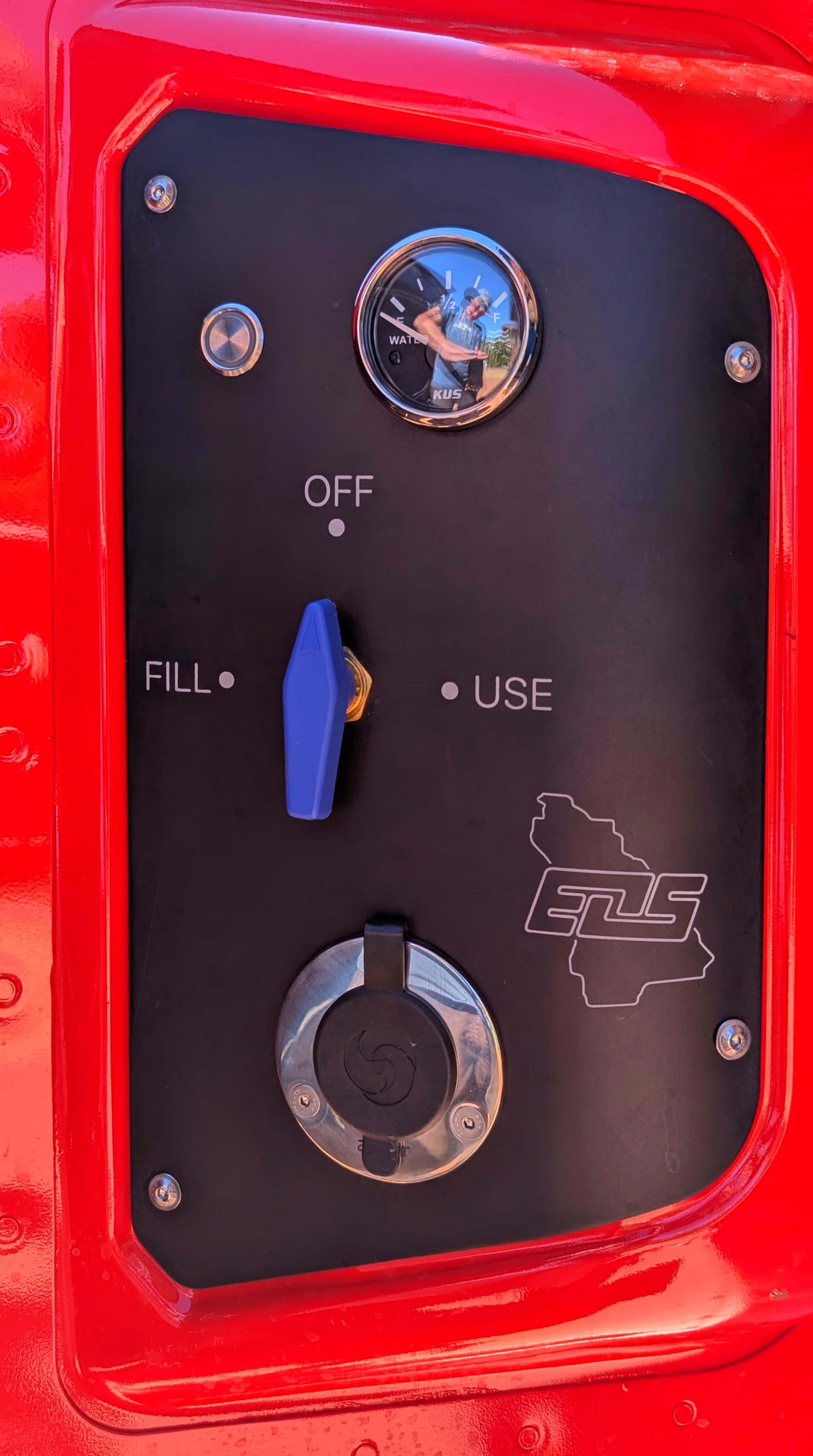

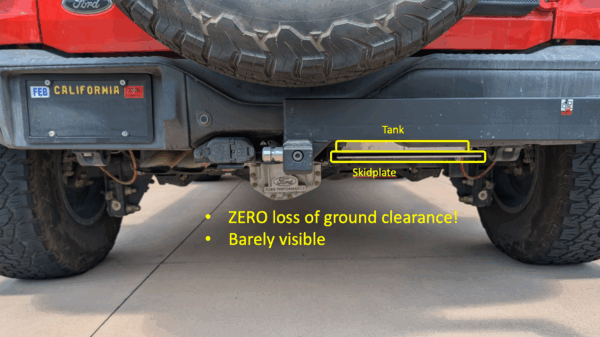

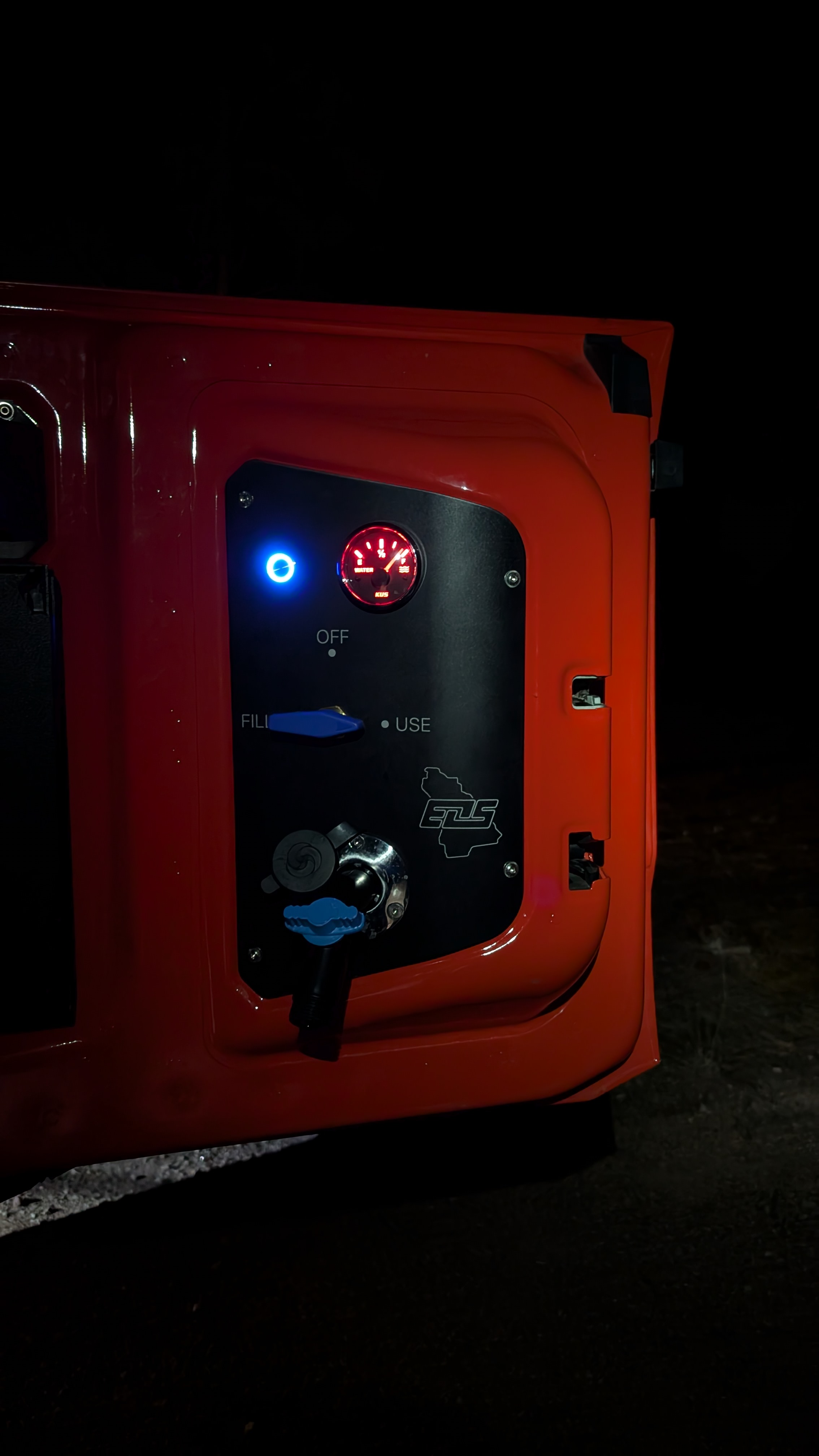

This allows me to carry 8 gallons of fresh potable water for camping, cooking, drinking, pets, cleaning, etc. It isn't just a water tank, but a highly integrated system that installs with ZERO loss of ground clearance and ZERO loss of interior space. It has a beautiful black anodized aluminum control panel on the swing gate with an illuminated power switch and illuminated level gauge. It uses a single low profile, quarter turn locking stainless steel spigot for both filling (via a garden hose) and dispensing. It is pressurized by a very small RV water pump.

No more sliding and spilling containers in my rig. No more buying water jugs for camping. No janky pressurized containers on a roof rack or in the cargo area.

The fit, finish and materials on this system are truly fantastic. It was made in the US and has a great warranty.

Pricey, but the quality, durability and convenience make it a great value IMHO.

UserError, AngusMac13

Sort by date

Reaction Score

Oct 06, 2025

This is nice work.

Any chance you are going to sell the trim piece replacement separately? I have broken like two of them and would really like to accommodate some wires and lines but not have to notch the plastic to make it work.

2023 Wildtrak. "Sometimes you got to get lost, to get found" -J Bronco

Oct 06, 2025

Nice, I was afraid the tank sat in the tailgate somehow, just seems like that would be a lot of extra weight on the tailgate. Since it is exterior mounted is there a heater to keep it from freezing? or is this just a warm weather product?

BN 1100, Desert Sand Everglades. Reservation 7/30/20. ordered 1/22/21, reordered 10/15/21 dropped tow and hard top, reordered 3/9/22 changed to Everglades. production date 9/7/22 rescheduled 9/14/22 completed 9/26/22, shipped 10/7/22, arrived 10/31/22, delivered 11/03/22

Oct 06, 2025

Mal
This is nice work.

Any chance you are going to sell the trim piece replacement separately? I have broken like two of them and would really like to accommodate some wires and lines but not have to notch the plastic to make it work.

The control panel or hose/wire cover? Sounds like the latter. If the latter DM me, can accommodate. The former will always have multiple holes and wouldn't be good for custom uses.

Oct 06, 2025

Jakob1972
Nice, I was afraid the tank sat in the tailgate somehow, just seems like that would be a lot of extra weight on the tailgate. Since it is exterior mounted is there a heater to keep it from freezing? or is this just a warm weather product?

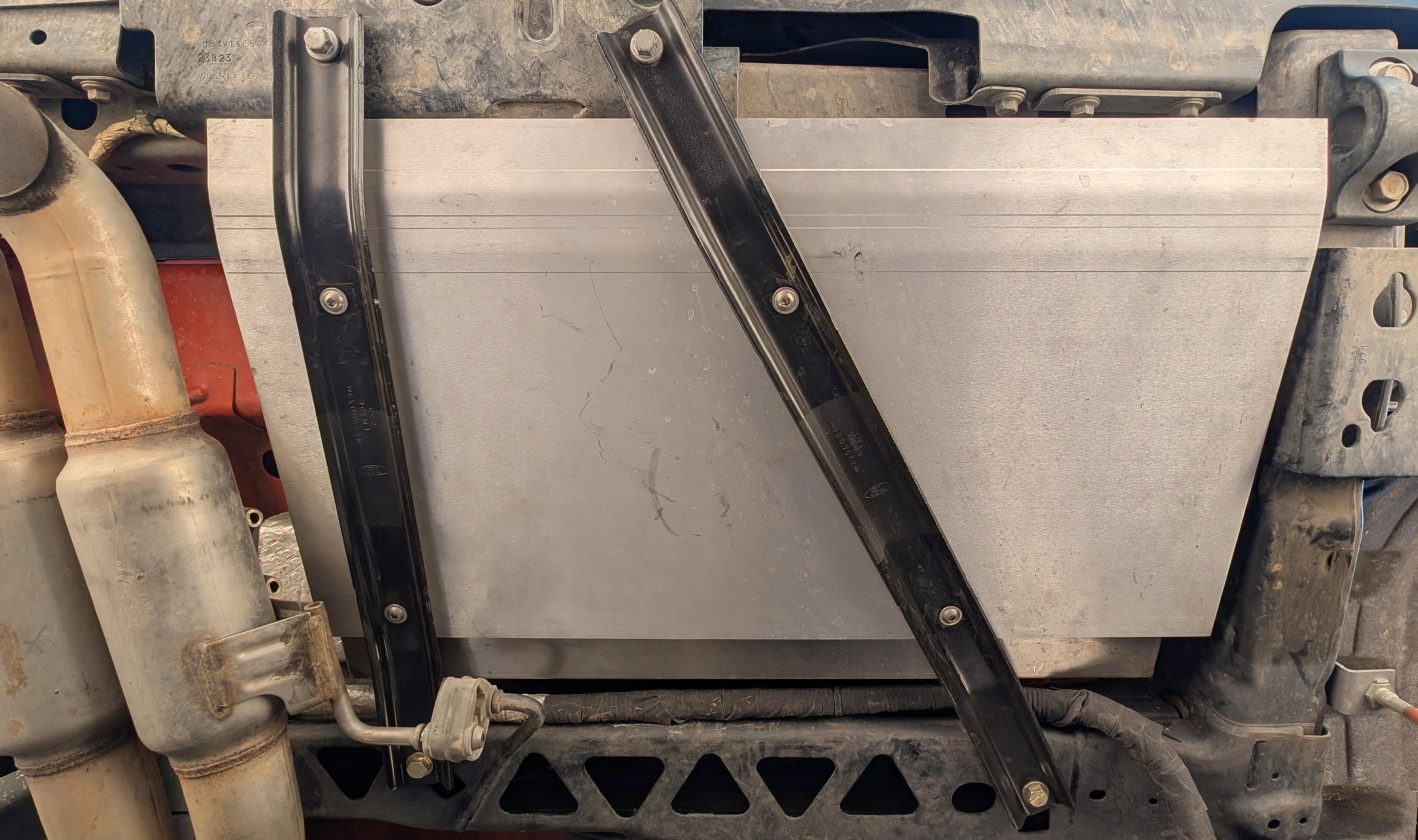

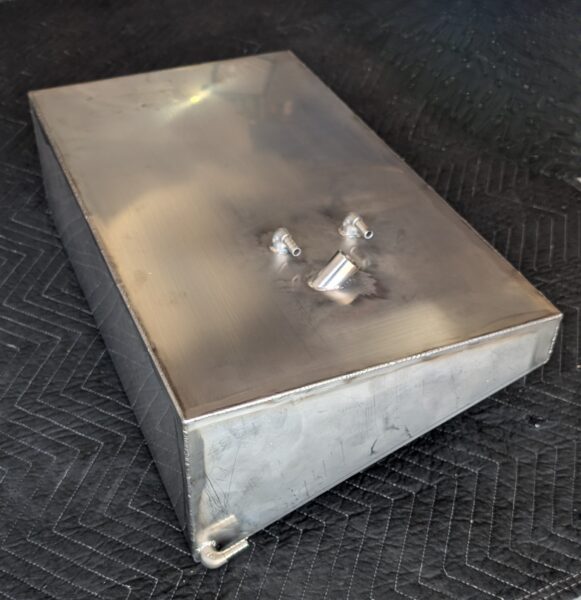

The tank, as per the pictures,
is under the rear passenger floor and above the beams that reinforce the hitch adapter. There is very little weight added to the swing gate.

There is no heating (nor cooling) for the tank.

Seems like most of the use cases for camping, wheeling and sports/water sports clean up are fair weather ones.

Jakob1972, UserError

Oct 07, 2025

swamp2
The control panel or hose/wire cover? Sounds like the latter. If the latter DM me, can accommodate. The former will always have multiple holes and wouldn't be good for custom uses.

yep the hose and wire cover. I keep breaking mine with my wiring to the tailgate. I will DM

2023 Wildtrak. "Sometimes you got to get lost, to get found" -J Bronco

Oct 09, 2025

That is a sweet setup! Any chance it will fit a WildTrak? Will you market it at some point?

22 Wildtrack lux, Area 51, tow, cloth, soft top

Oct 09, 2025

That is a beautiful custom setup! I am just not over two grand worth of thirsty.

Oct 10, 2025

Fotoedge
That is a sweet setup! Any chance it will fit a WildTrak? Will you market it at some point?

Thanks. It definitely can. The FAQ on my website covers that. The largest hurdle is that a Raptor style (side running) exhaust is a prerequisite as the tank fits where the factory exhaust is located. We would need to work together to insure one of the side running aftermarket options has suitable clearance, as I do not have any known fits as of today.

Oct 10, 2025

Paul 82 Bronco
That is a beautiful custom setup! I am just not over two grand worth of thirsty.

Well, its now well beyond custom but fully "productionized". I have kits ready to ship. I get the cost issue. It is an inherently high end system from the ground up and it is particularly high cost since the volumes are very low. Being made in the US and a killer warranty also contribute to the cost.

Anyway, the safety, convenience and time savings are worth it to some and not others. Not different than most products out there.

Deano Bronc
