2022 Base 2 Door SAS Mod Journey

HRSPW

Jul 11, 2022

Let the customizations commence. My build will start with mostly cosmetic changes and enhancements to personalize it with my vision. Everyone has their own tastes and visions, but this is mine and I’ve waited over 40 years to have a Bronco to call my own.

Reservation	Ordered	Production	Build	Delivery
8/23/2020	3/15/2021	5/23/2022	6/5/2022	6/23/2022

Modifications Completed

Three Percent Custom Hitch Cover (Transfer 3X)
K9 Interceptor Badge (Transfer 3X)
License Plate Mount - @BuiltRight Industries #106102
Perfect-Fit Stubby Antenna - @BuiltRight Industries #110019
BRONCO Black Retro Fender Script
Class III Receiver Hitch and 4 pin wiring harness - Curt #13493
1966 Bronco Door Sill Protectors
Black Under the Hood Sound Insulator
Bronco Black Rear Emblem - Ford #M1447BRB
GearAmerica Mega Shackles
Front Door Pockets Custom Painted - Mabett
Center Console Arm Rest Cover - Mabett
Brake and Accelerator Pedal Covers and Foot Rest - Mabett
Center Console Organizer Trays - Mabett
Picatinny Rail Dash Mounting Platform - Mabett
Custom Rear Seat Delete Platform
BRONCO White Grille Lettering - Tuffskinz
HDX Side Steps - Westin #56-14185
Jam Handles Two Finger Matte Black
20% Window Tinting on Doors, Rear, and Hatch
Sai Nee Black Grille Guard Bar
Dual Tip Black Axle Back Performance Overland Series - MagnaFlow #19558
Multiple Light Controller - Rough Country #MLC-6

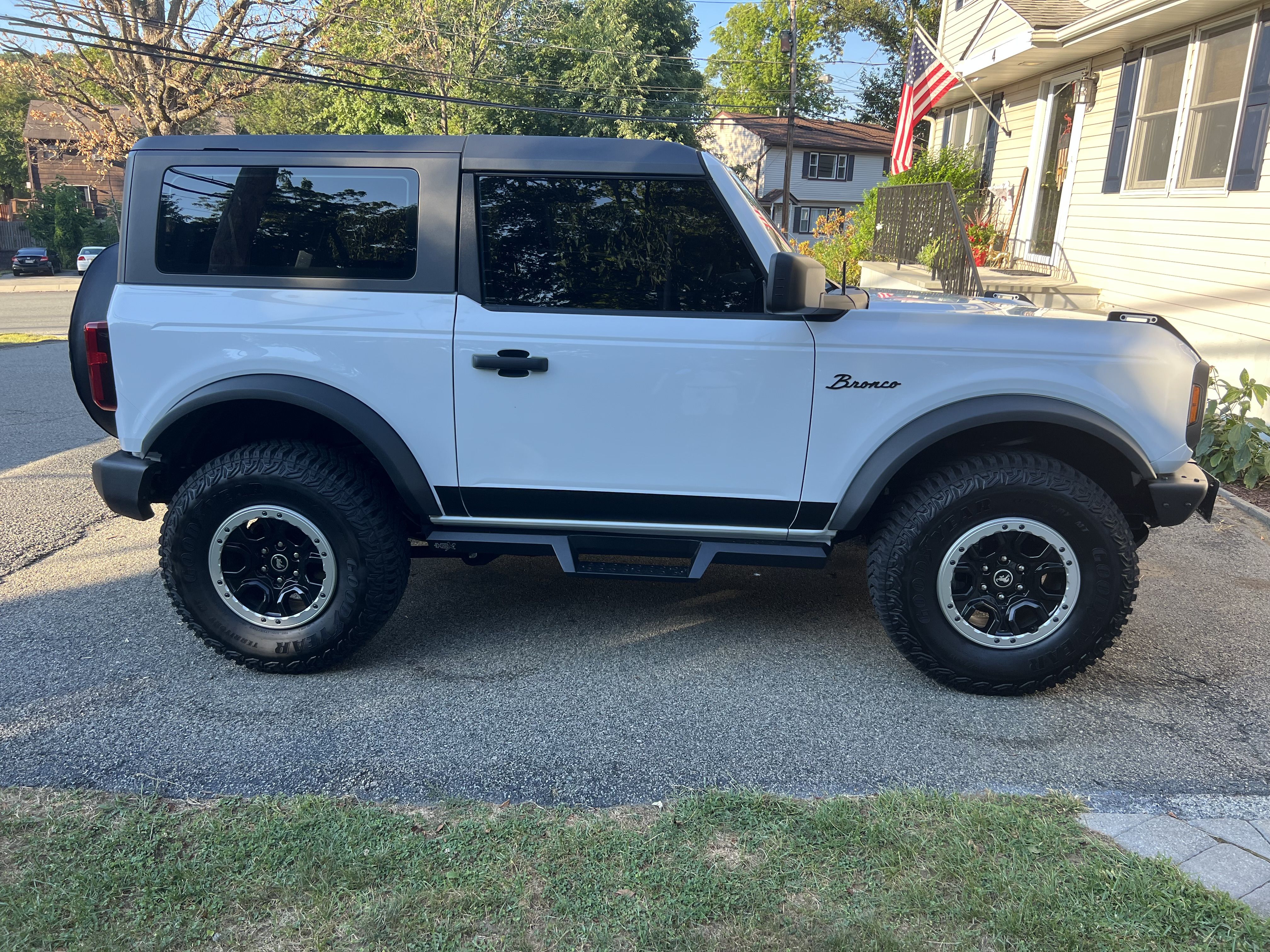

Interior and Exterior White & Black Vinyl Trim - StickerFab
Tailgate Folding Table - Ford # VM2DZ78407A99A
ECU Tuning Box with Bluetooth - VR Tuned # VRT-BRC-2.7-DMB7333
Custom Bronco Rear Tire Cover with Camera Retaining Rings - Tire Cover Tim

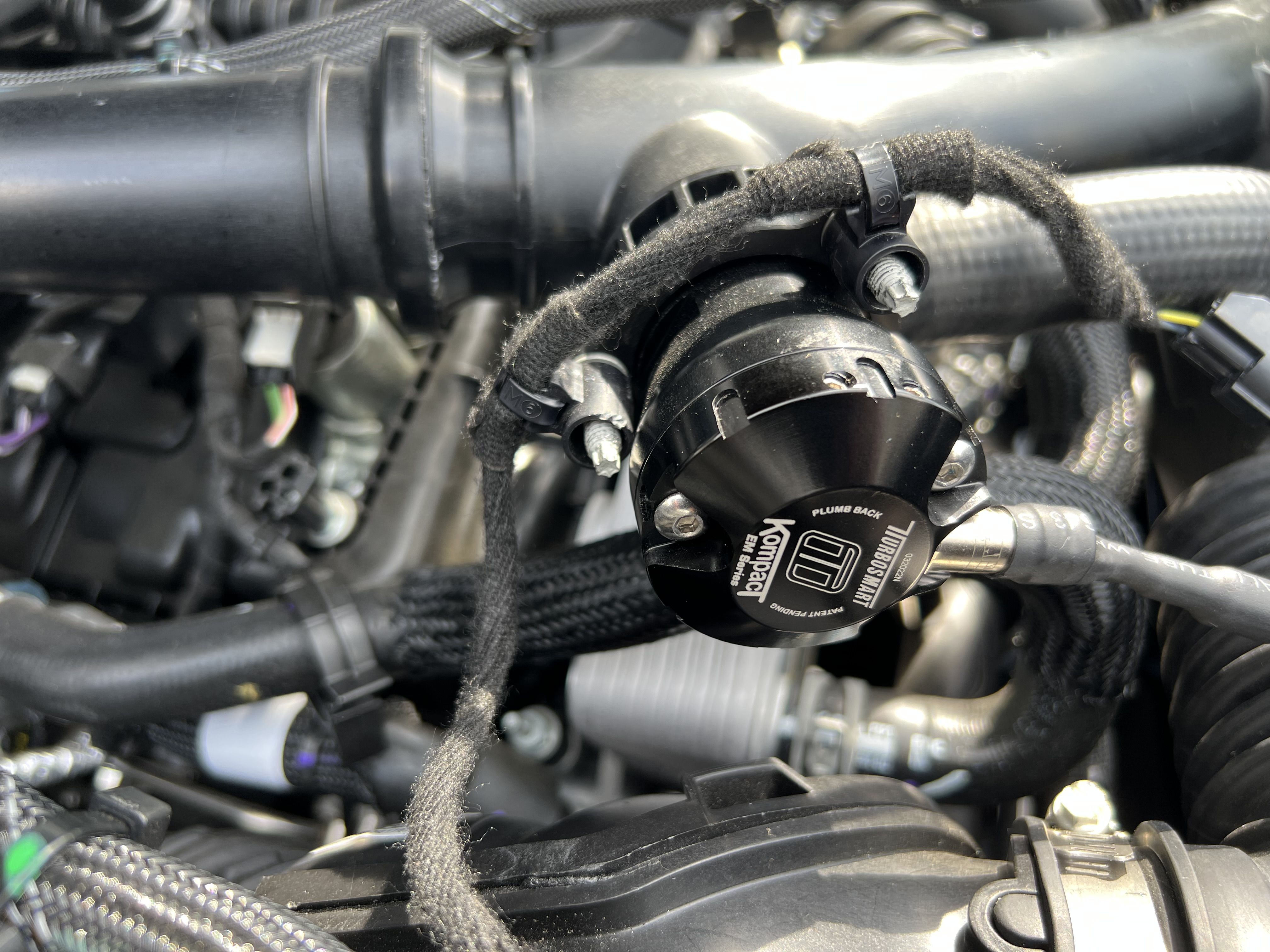

Kompact EM Plumb Back Valve (Diverter Valve) VR19 - TurboSmart # TS-0223-1282

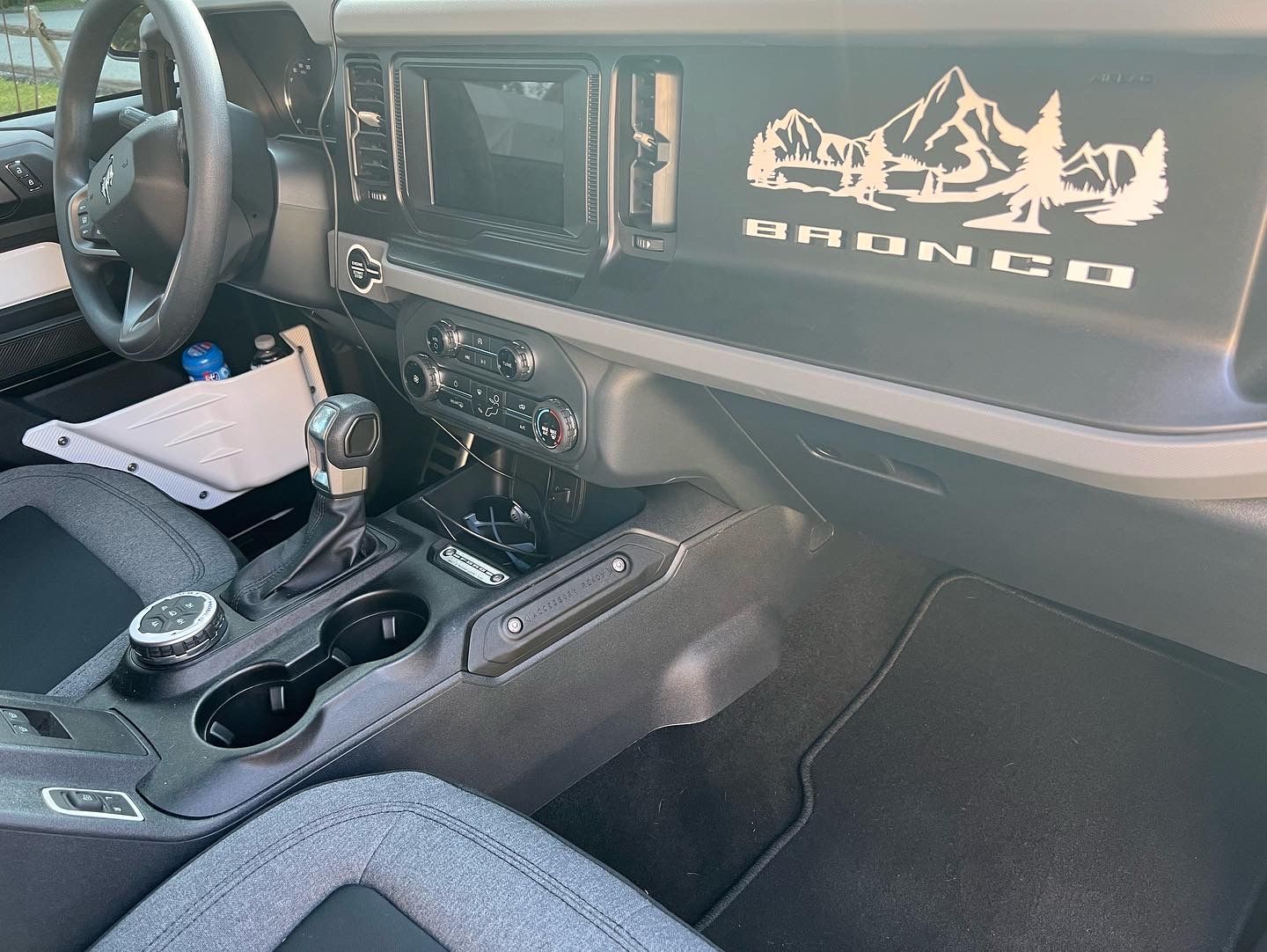

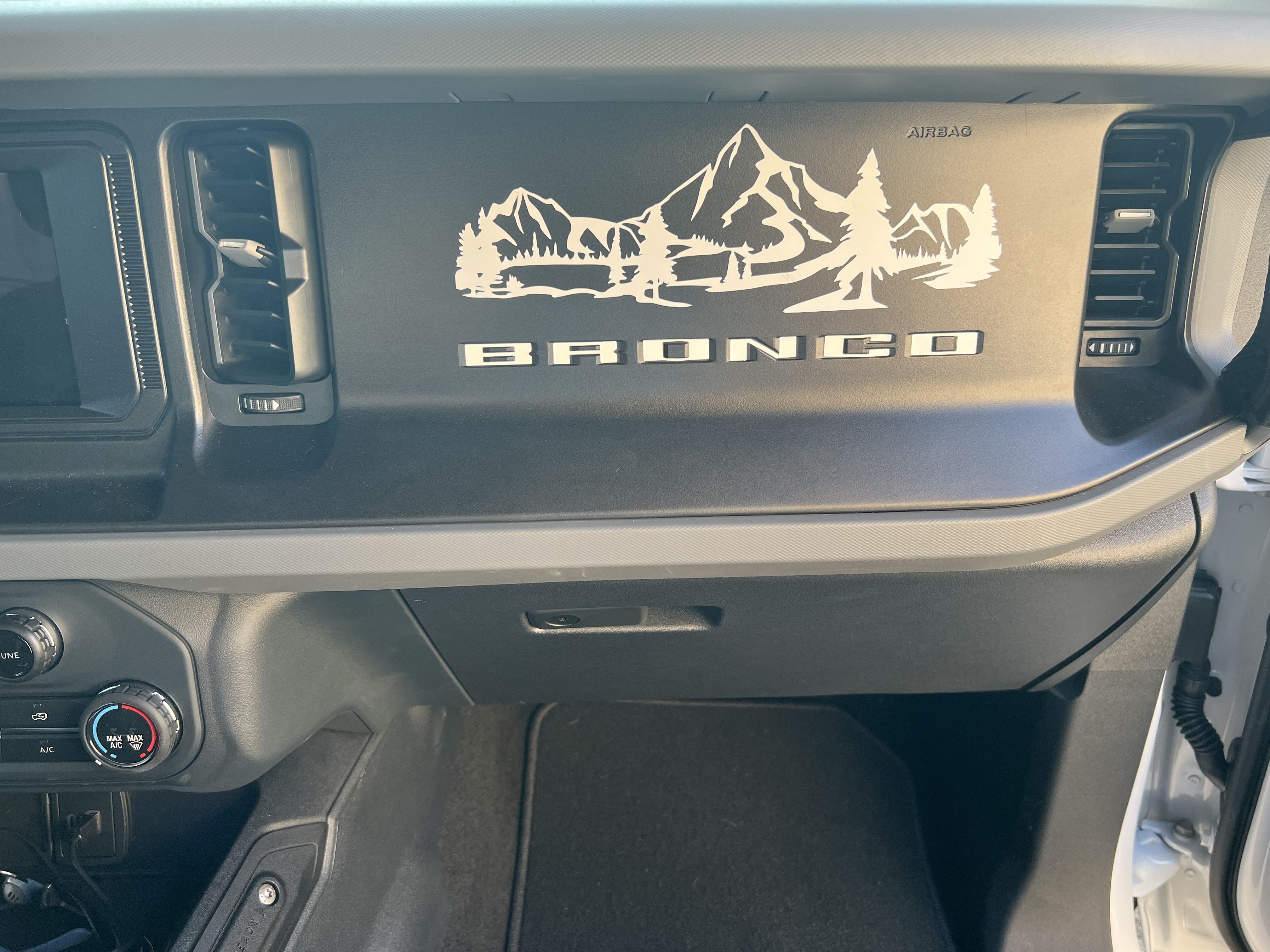

Interior Vinyl Scenery Decals - TVDVinylDecals
Door Pull Pocket Panels

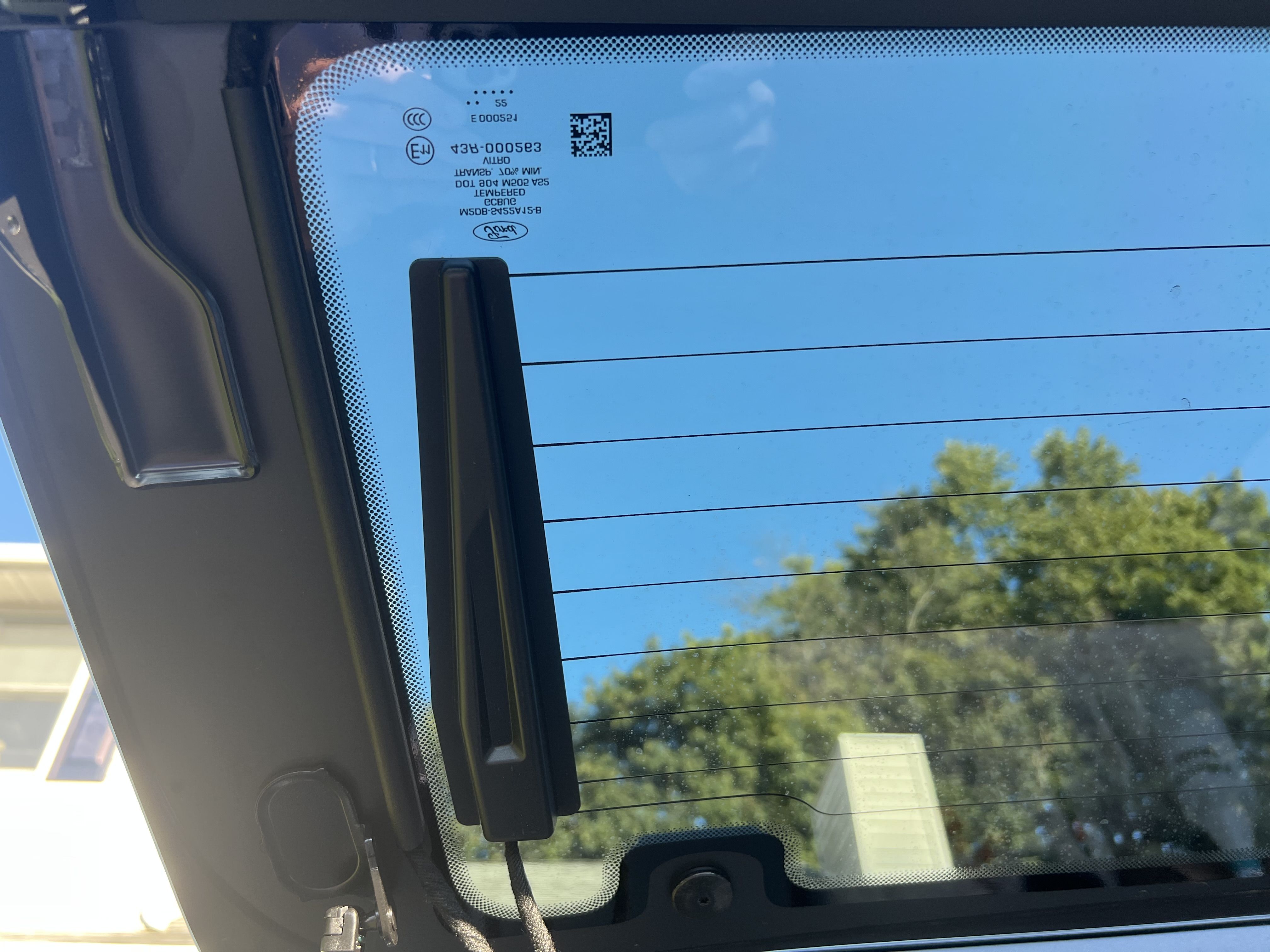

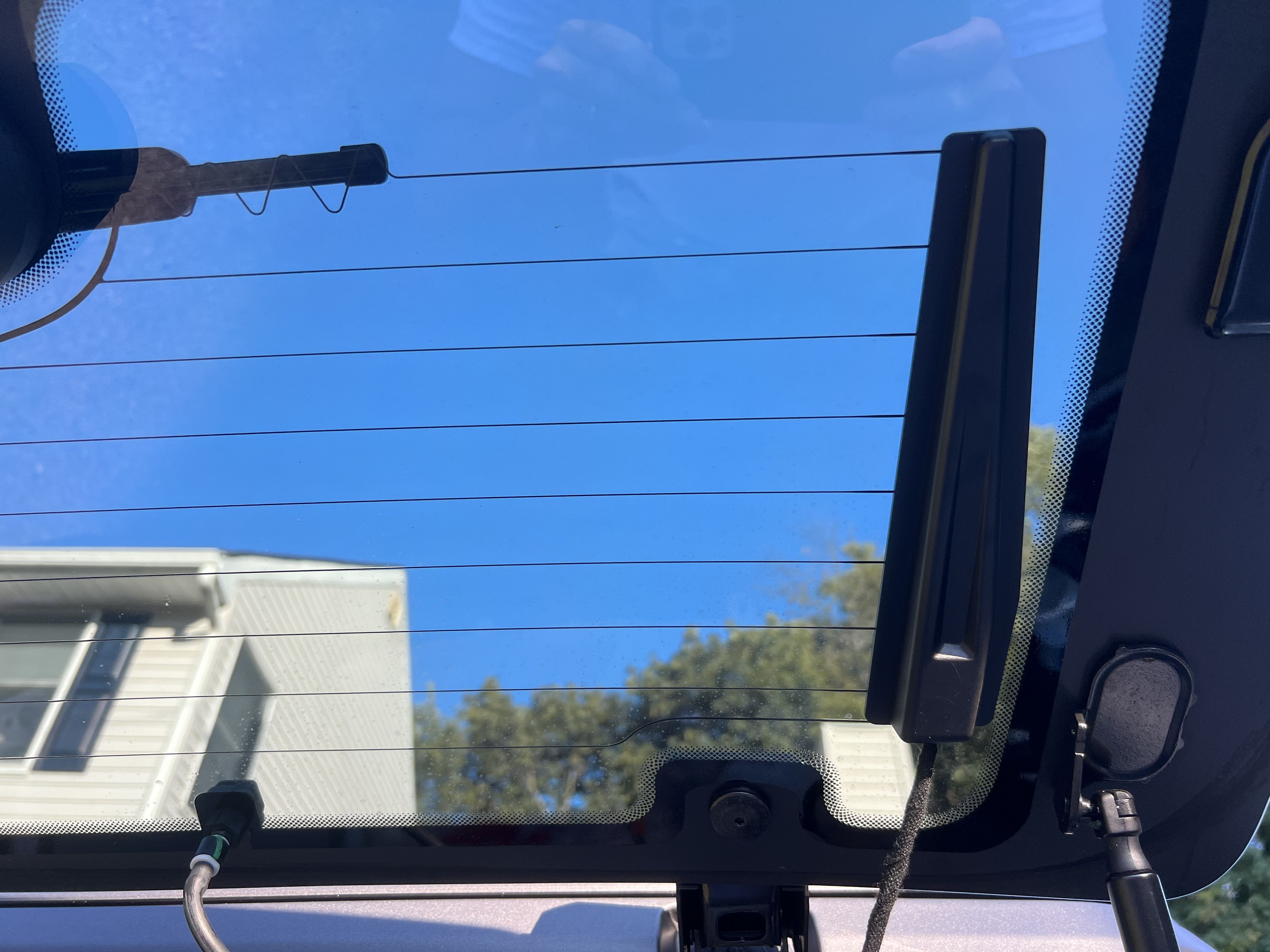

OMU Rear Window Defroster Grid Protectors

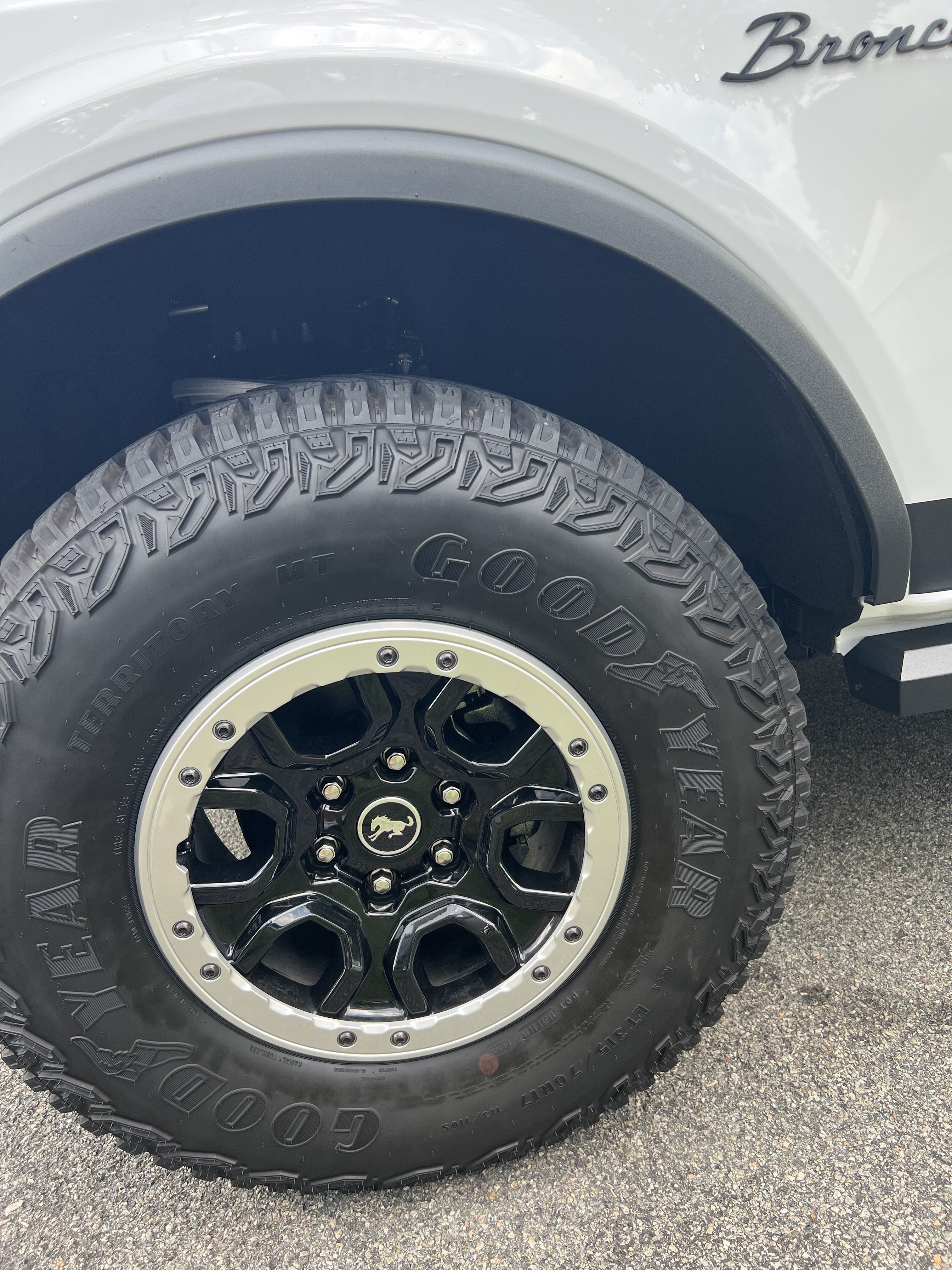

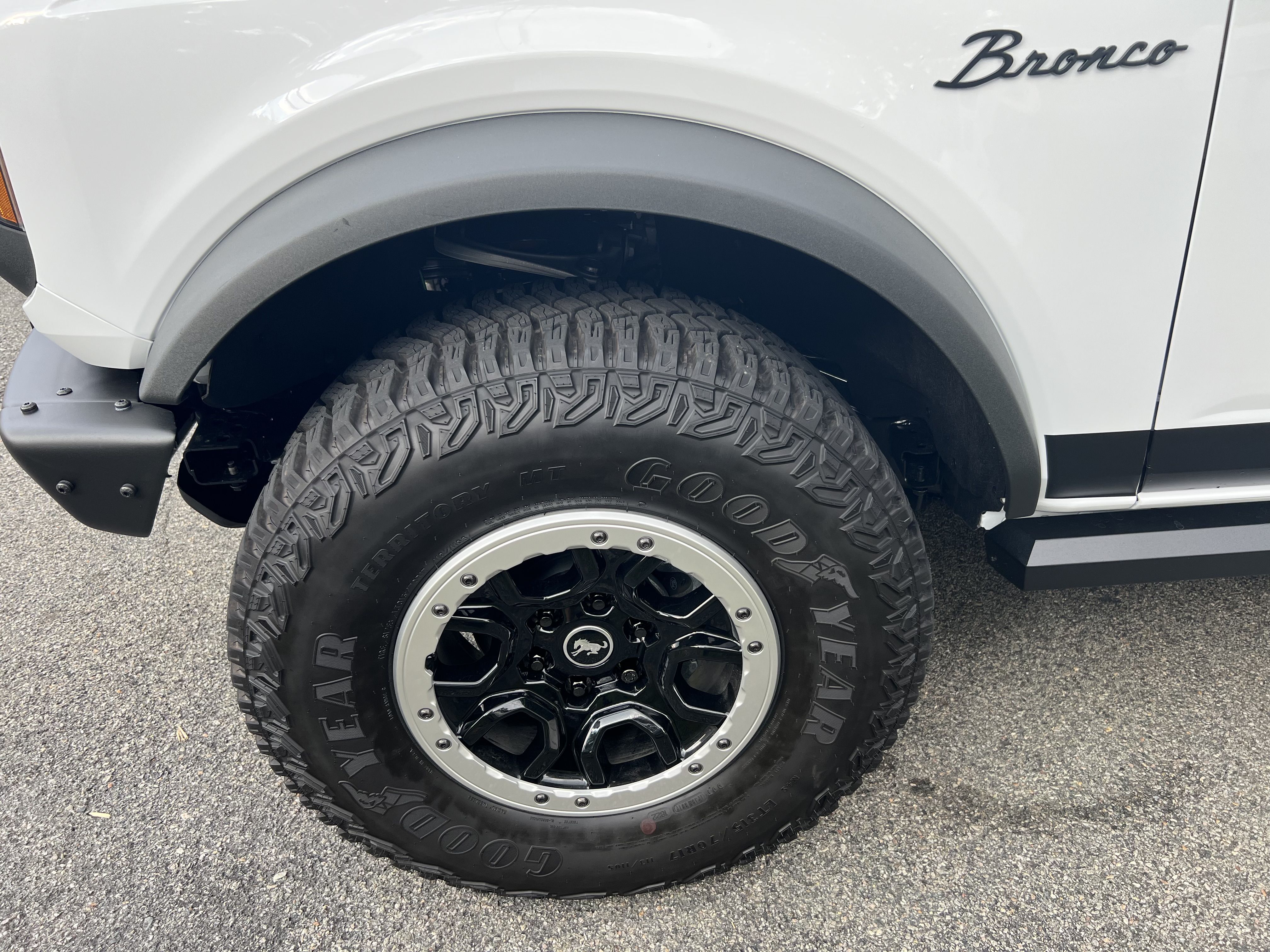

Black Lug nuts - McGard #64015
Black Wheel and Spare Locks - McGard #24526
Front and Rear Quick Release Mud Flaps - RokBlokz XL
Oil Separator 3.0 Passenger Side - J&L Oil Separator Co. # 3073P
LED Cargo Light Module - Oracle # 5887-001
OE Roof Rack with additional Cross Bar - Ford #M2DZ9955100AA & # M2DZ7855100AA
Strut Tower Brace Custom Painted - Steeda # 555 5738
18" Single Row Straight Clear Combo Light Bar Mounted on Grille Guard @Diode Dynamics
Front Stage Series Fog Pocket Kit w/SS3 White Fog Sport and (2) SSC2 White Combo Sport @Diode Dynamics
Rear Stage Series (2) C2 2 Inch LED Pod Sport White Combo Standard RBL @Diode Dynamics
MicroMobile® 15-Watt GMRS two-way radio - Midland MXT275
Hood Mount Antenna - K400 Diamond
Magnetic Microphone Mount - WixGear
Coolant Tank Reservoir Cover - Lethal Performance # LP-801
Brake Fluid Reservoir Cover - Lethal Performance # LP-802
Lighting Flush LED Tail Lights - Oracle # 5892-504
SAS Manual Sway Bar Disconnect - AC-Fab
Rear Shock Mount Skid Plate - AC-Fab
Rear Frame Link Mount Skid Plate -AC-Fab

Here it is coming off the assembly line and the first day at the dealers the day I brought it home.

Rolling off the assembly line

Day of delivery

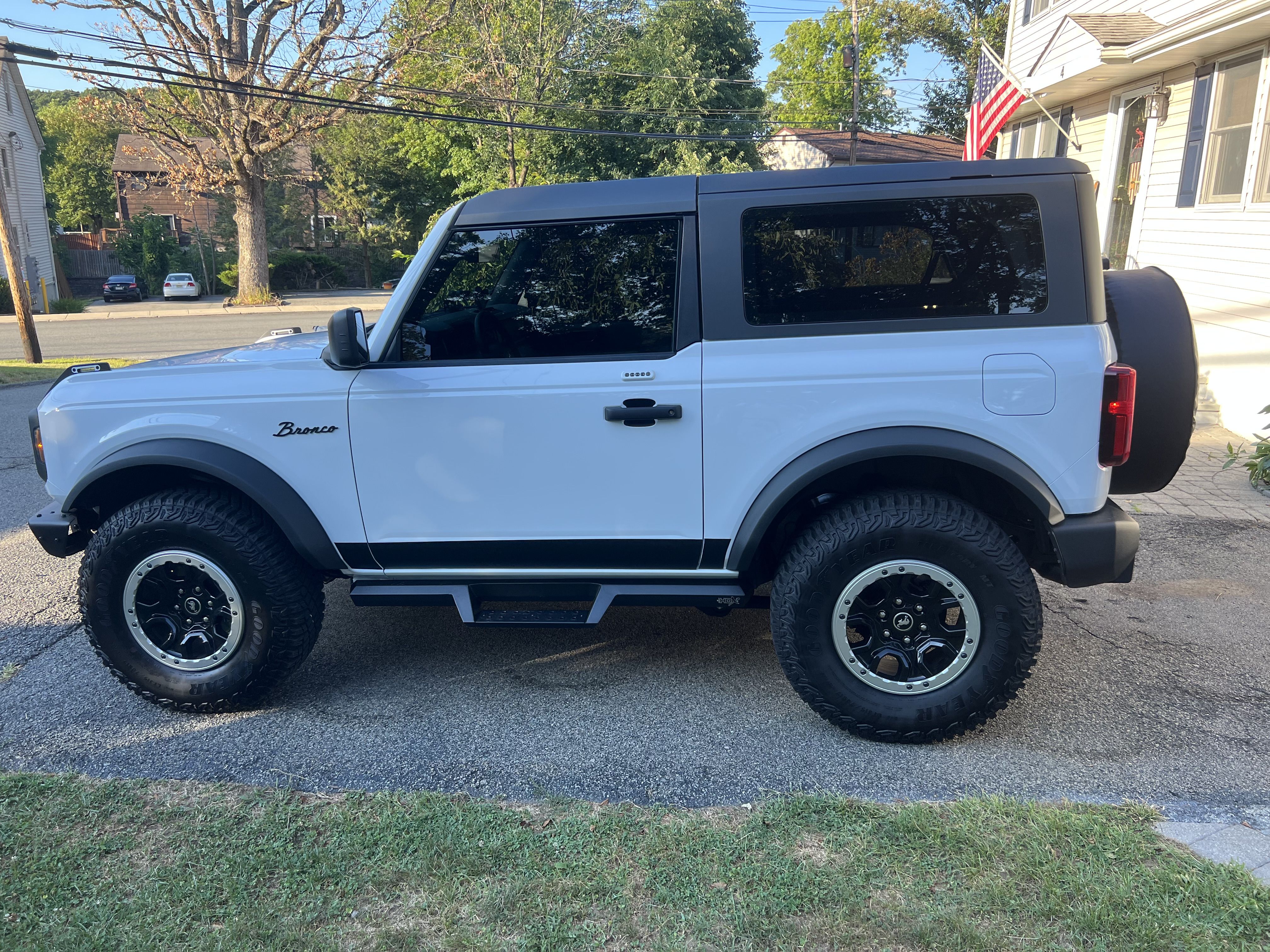

Current 11/05/2022 @The Hudson House New York

kmc4usa, Littlin

Sort by date

Reaction Score

Aug 09, 2022

#20

HRSPW
Did an Rough Country MLC-6 Multiple Light Controller in anticipation of adding lights and having somewhere to tie it into the OEM Upfitter switches. There is a power and ground for each switch with a 40 amp relay and 30 amp fuse. The main power line has a manual 50 amp circuit breaker intergraded to 8g cable to the battery terminals and an integrated LVCO (Low-Voltage-Cut-Off) circuit. This is well constructed as well as functional. Total installation took about an hour due to my OCD with heat shrink tubing and soldered wires not crimped with the included connectors.

I thought about ordering that when I saw it on their website but wasn’t sure if it was worth it to put relays on already relay equipped circuits. I do like the idea of having terminals to connect to rather than just loose wires.

22 Black Diamond 2dr non sas w tow and roof rails.

HRSPW

Aug 15, 2022

#21

Great thread and ride, thanks for sharing all the mods you've done, it was fun to read through.

HRSPW

Aug 15, 2022

#22

murnane
Great thread and ride, thanks for sharing all the mods you've done, it was fun to read through.

Thanks the journey is just beginning, I have more to come.

murnane

Aug 15, 2022

#23

HRSPW

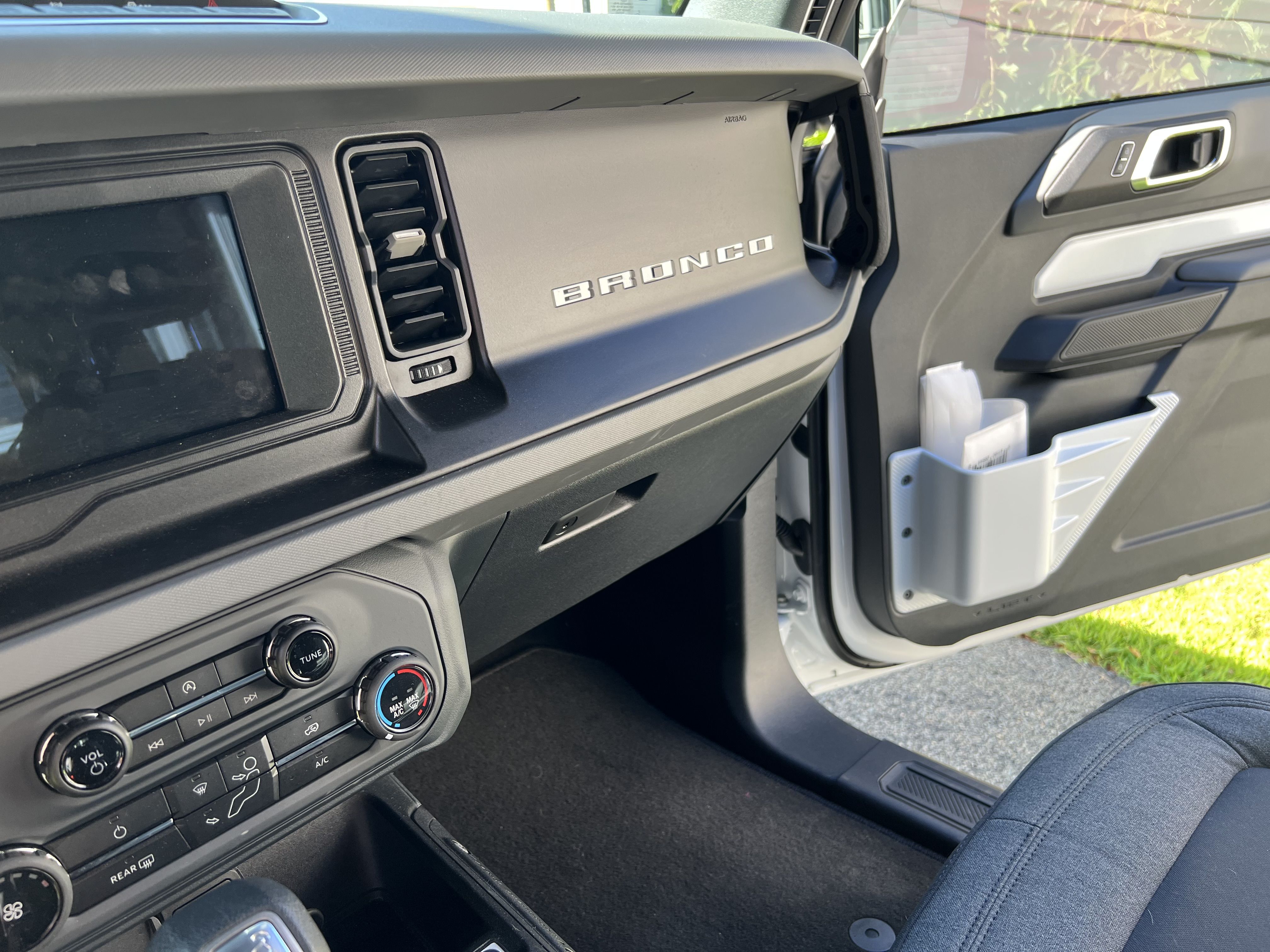

Did a little painting the other day of some interior parts from @Mabett, the door storage pockets needed a little pop, the pedals and foot rest, and the center console arm rest cover.

Like the mods my man! If you don't mind me asking, what petal covers did you use? I was looking for some, but didnt know what style fit these petals. Even in the Badlands trim, it comes with straight cheap rubber covers.

HRSPW

Aug 15, 2022

#24

How thick on the plywood?

HRSPW

Aug 15, 2022

#25

Mike&Kathy
How thick on the plywood?

3/4" and a piece of a 2X8 for a leg support at the front edge perched on top of the floor hump.

Aug 15, 2022

#26

FFH
Like the mods my man! If you don't mind me asking, what petal covers did you use? I was looking for some, but didnt know what style fit these petals. Even in the Badlands trim, it comes with straight cheap rubber covers.

Thank you, they are Mabett's on Amazon.

Aug 16, 2022

#27

How many inches do the the steps on Westin bars dip below the rails?

Perfect mods btw-will do most of same if can find a modular bumper local!! I'm in LI, NY

HRSPW

Aug 16, 2022

#28

BradB
How many inches do the the steps on Westin bars dip below the rails?

Perfect mods btw-will do most of same if can find a modular bumper local!! I'm in LI, NY

It is 3" below the bottom of the rail, the step reduces the entrance height 5".

Thanks for the complements!

Aug 16, 2022

#29

HRSPW
It is 3" below the bottom of the rail, the step reduces the entrance height 5".

Thanks for the complements!

ordered--keep you posted if I keep them.

HRSPW

Aug 18, 2022

#30

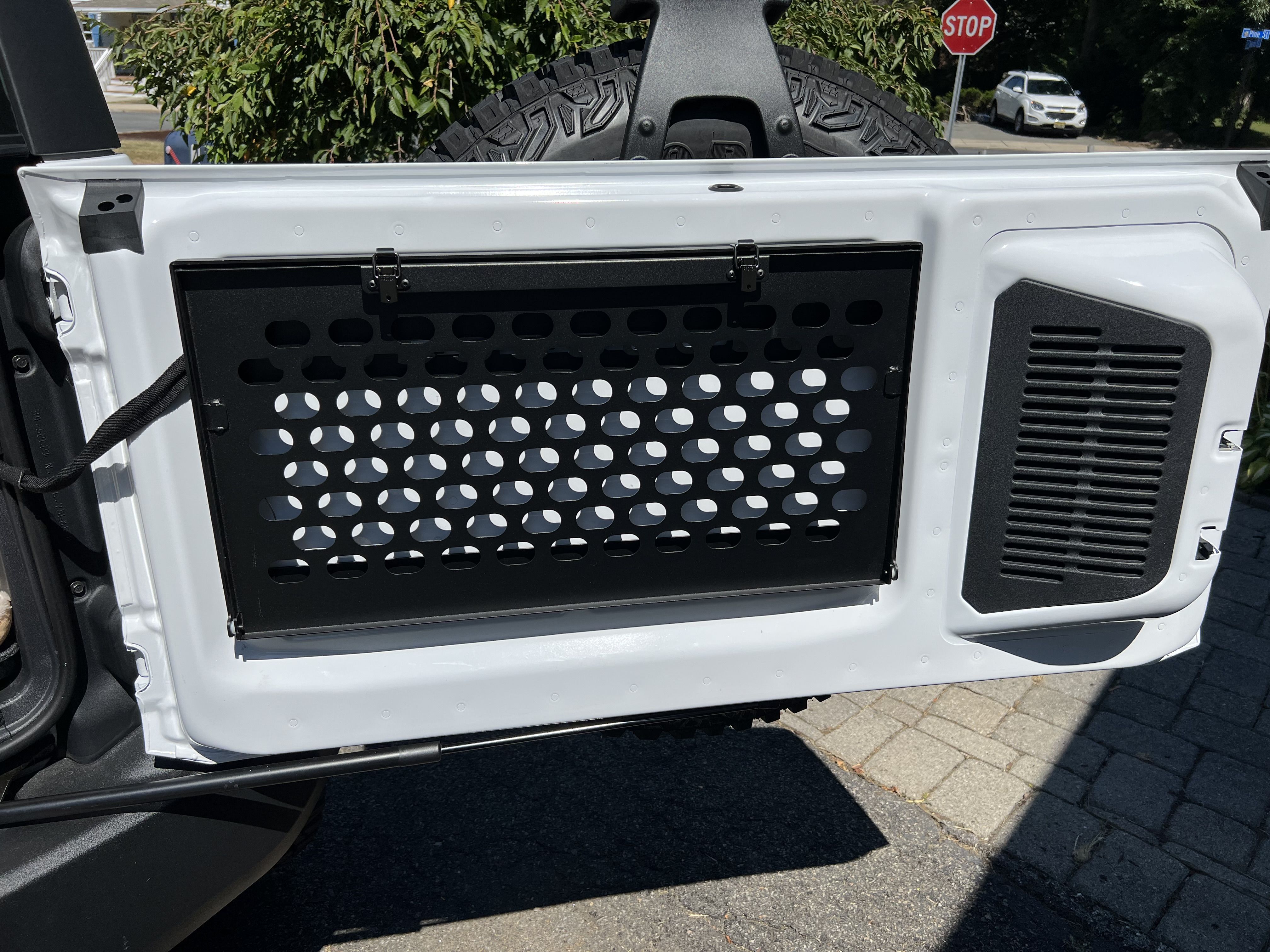

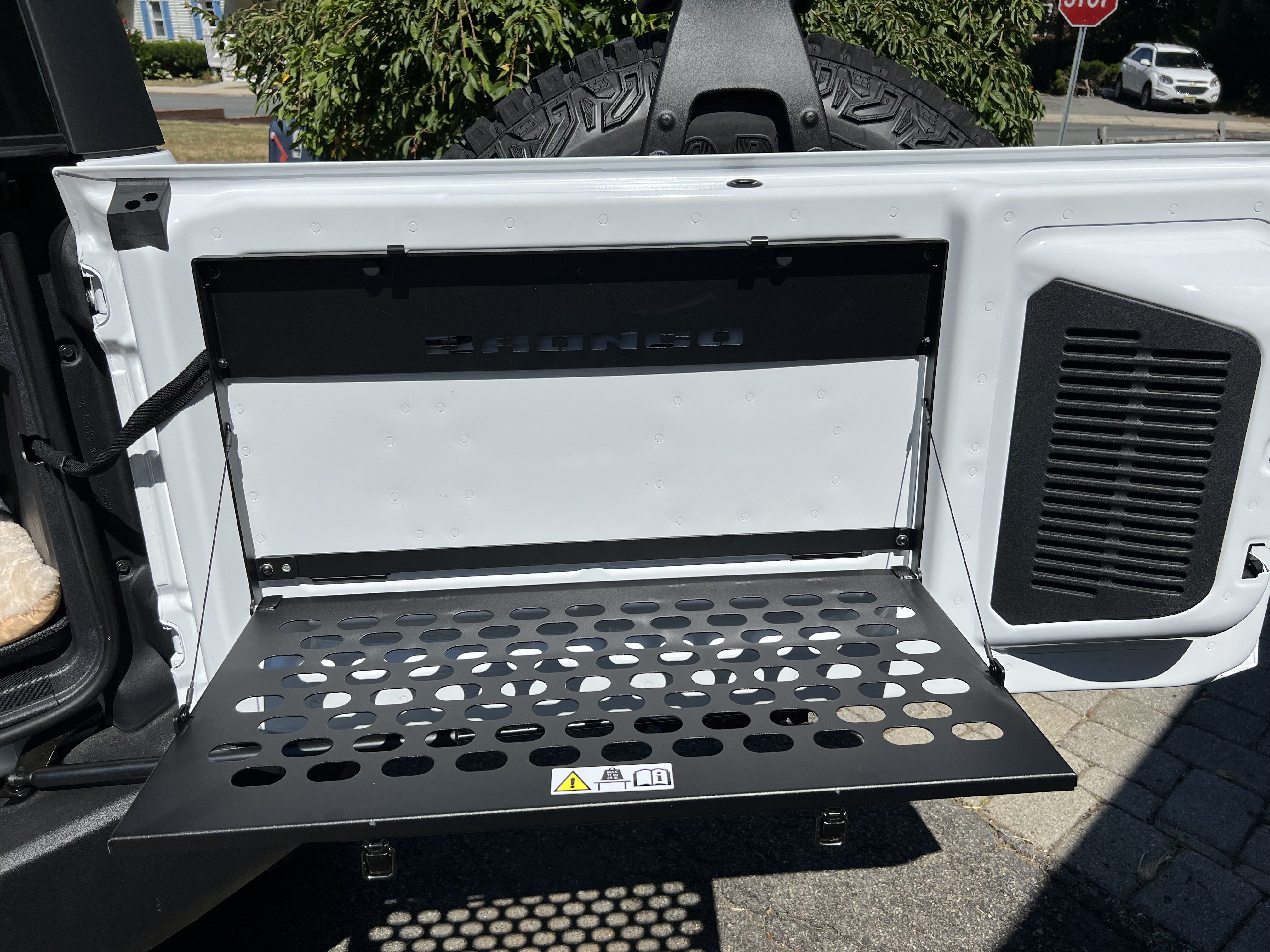

I did a couple of mods this week, one functional and one performance. The rear door fold down table really wasn't too bad of an install being it was the OEM accessory.

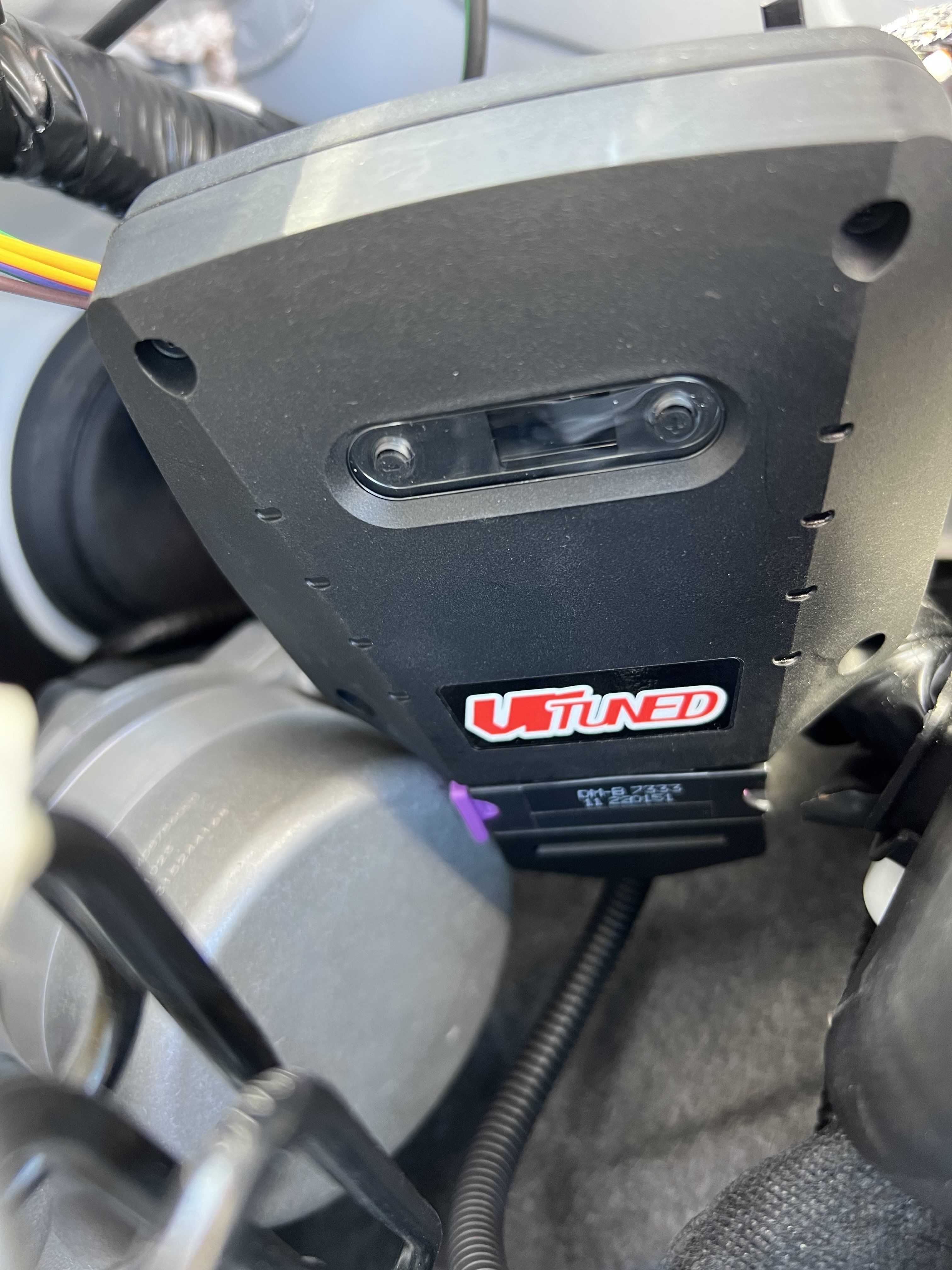

and the performance mod was the VRTuned with the bluetooth option, and yes it does make it a little better response with little to no lag in the go pedal.

Xpathf1nderX, KennyMac

Aug 21, 2022

#31

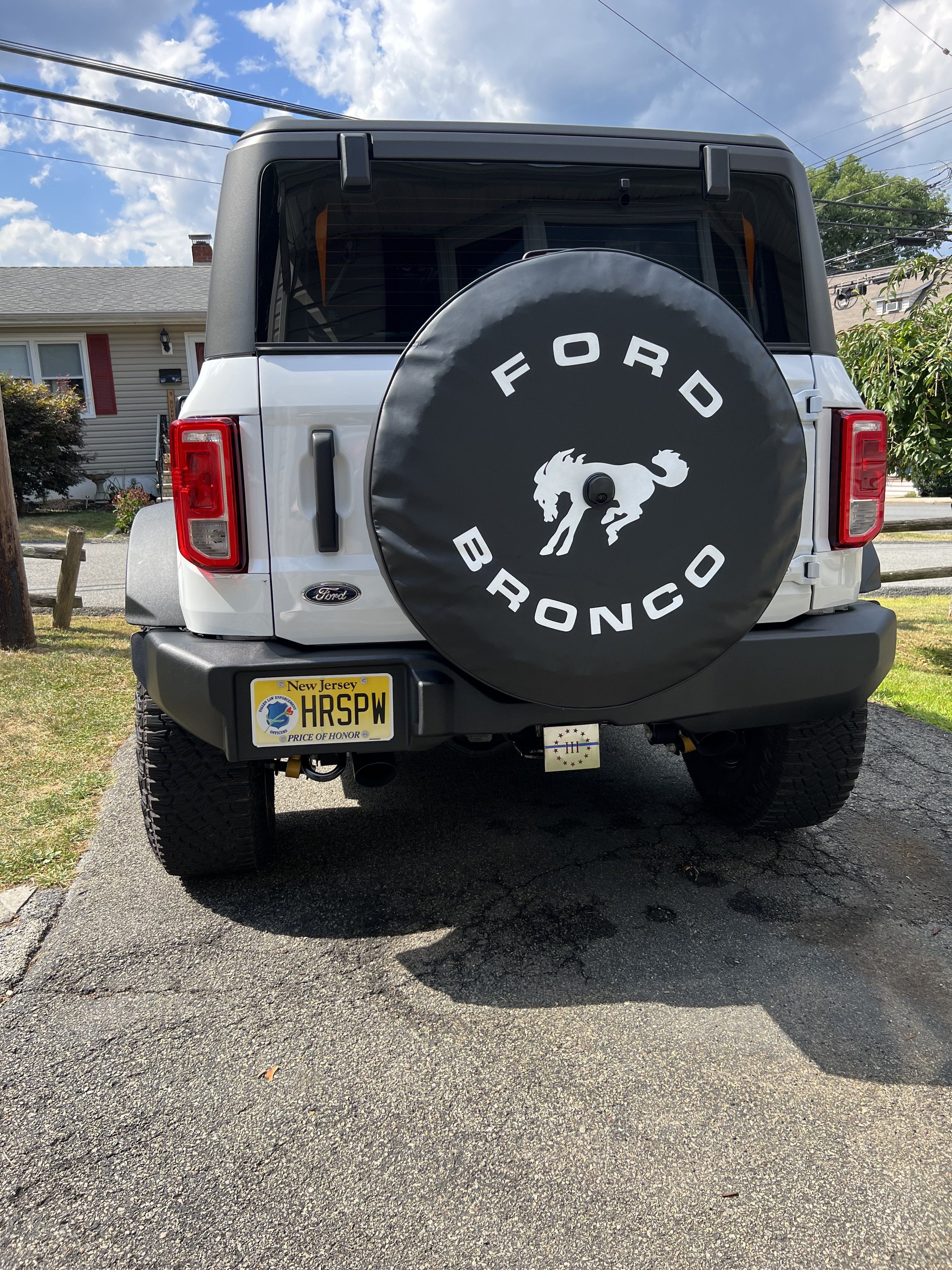

Another productive couple of days. My spare tire cover came in and looks awesome, even has the retaining ring for the backup camera. Plus the bonus of my custom plates came in too.
