New Differential Cover

extra toasty
Feb 02, 2024

Rank IV

Feb 02, 2024

Used my Ford points to get new diff cover.

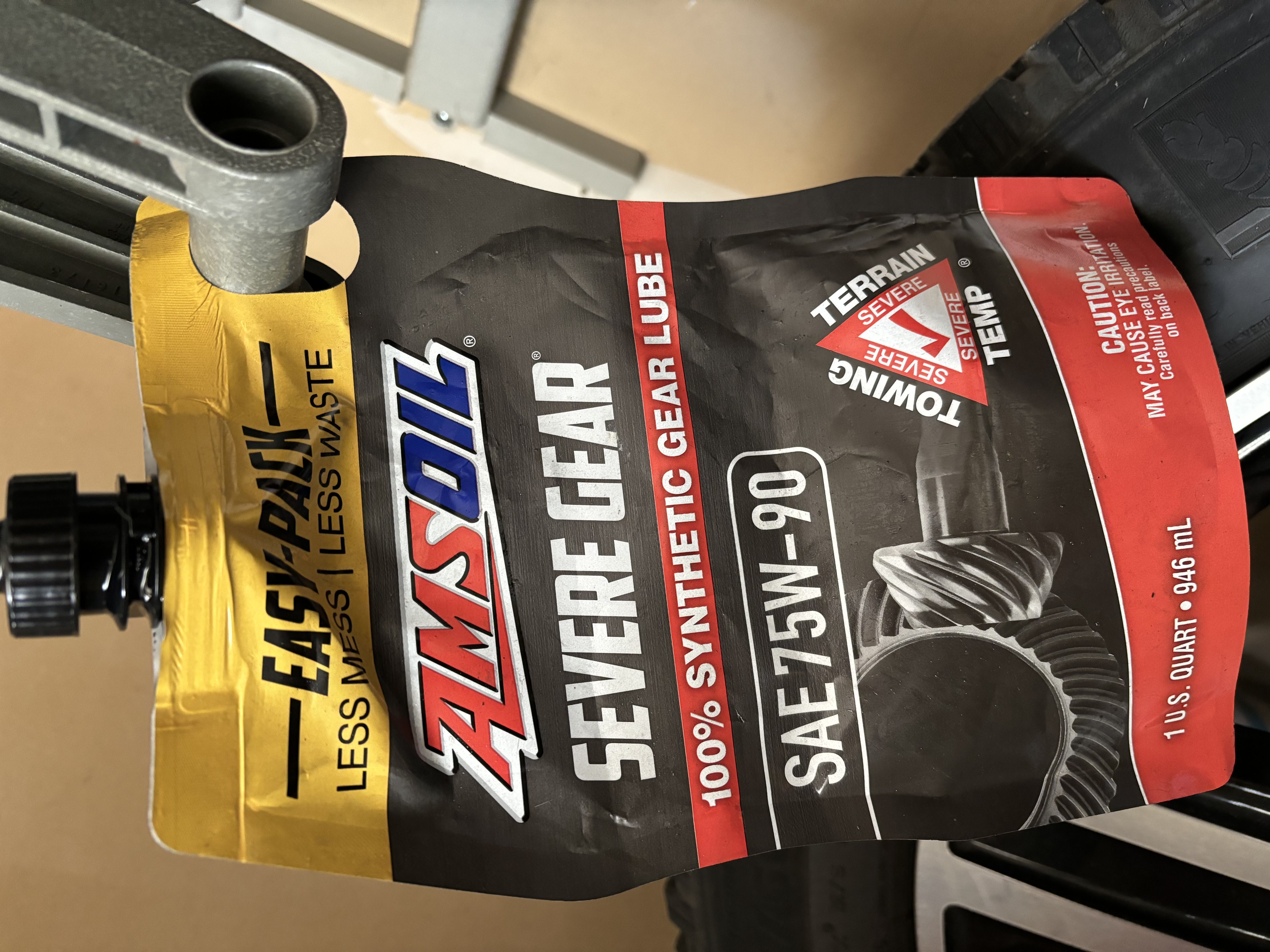

Easy job. Came with new hardware and gasket. Filling was mess free with these collapsable bags. Maintenance is a breeze now.

BTW drained out 10oz less than claimed capacity factory fill.
Buking Bronco, TK1215
Moderator

Rank VI

Feb 02, 2024

#1
extra toasty
Used my Ford points to get new diff cover.
Easy job. Came with new hardware and gasket. Filling was mess free with these collapsable bags. Maintenance is a breeze now.

BTW drained out 10oz less than claimed capacity factory fill.

Very nice. Do you have a part number?
2022 Bronco Badlands, 4D, Hot Pepper Red, 2.7, Squatch, Lux, and MIC.
7/13/2020 10:04pm reservation. Blend 6/16/2022 Delivered 6/26/2022.
Dealership - Stephen's Auto Center.

SEA Horse

Feb 02, 2024

#2
I like the looks of that! 🥰
Chris here. I drive a 2-door Velocity Blue 2023 Ford Bronco Badlands with Sasquatch, Lux, a 2.7L V6, and an automatic transmission. It’s fun.

"Stupidity is a more dangerous enemy of the good than malice." - Dietrich Bonhoeffer
extra toasty

Rank IV

Feb 02, 2024

#3
Deano Bronc
Very nice. Do you have a part number?

Yep. M-4033-BR
Bronco HD M220 Rear Axle Diff Cover
Deano Bronc, BuckYeah

https://gearproject.co/profile/Unicorn

Feb 02, 2024

#4
Been looking at that one because of the drain plug... Would make changes so much easier than pulling the entire cover.

and yes... that looks damn good! I like that.
extra toasty

No Ragerts

Feb 02, 2024

#5
Very nice! Any thoughts on the 10 oz variance in capacity v. drained quantity?
- 2023 Raptor / Shadow Black / MGV (DOB 8/30/23)
- 2023 Heritage Limited Edition / Robin’s Egg Blue / 4dr / (stolen from my dealer 11/15/23)

Rank IV

Feb 02, 2024

#6
Unicorn
Been looking at that one because of the drain plug... Would make changes so much easier than pulling the entire cover.

and yes... that looks damn good! I like that.
Yep you’re right.

It has two filler holes and I had to use the top one to accommodate the full capacity fill.

Rank IV

Feb 02, 2024

#7
Bschurr
Very nice! Any thoughts on the 10 oz variance in capacity v. drained quantity?

Not a big surprise. The front differential along with the transfer case also had less than the manual calls for. Probably not a big deal for a short while anyway. I just like things right.
Bschurr

No Ragerts

Feb 02, 2024

#8
extra toasty
Not a big surprise. The front differential along with the transfer case were also less than the manual calls for. Probably not a big deal for a short while anyway. I just like things right.

Assuming you have the rear locking diff, the capacity is 63.6 oz so missing 10 oz equates to over 15% - that’s a significant figure.
- 2023 Raptor / Shadow Black / MGV (DOB 8/30/23)
- 2023 Heritage Limited Edition / Robin’s Egg Blue / 4dr / (stolen from my dealer 11/15/23)

Rank IV

Feb 02, 2024

#9
Bschurr
Assuming you have the rear locking diff, the capacity is 63.6 oz so missing 10 oz equates to over 15% - that’s a significant figure.
Well that’s exactly why I also did the front differential and transfer case. This Amsoil is top rated by a very very in-depth test I found on 6G forum. Put Red Line D6 in transfer case. It’s full synthetic.
Moderator

Rank VI

Feb 05, 2024

#10
extra toasty
Well that’s exactly why I also did the front differential and transfer case. This Amsoil is top rated by a very very in-depth test I found on 6G forum. Put Red Line D6 in transfer case. It’s full synthetic.

Good info here: https://www.bronco6g.com/forum/threads/75w85-rear-differential-gear-oil-what-are-you-using.81564/

And I'm still reading this thread - https://www.bronco6g.com/forum/threads/change-driveline-fluids-early.83929/

I'm going with Amsoil 75W-110 front and 75-140 rear as recommended by CarbonBronco.
2022 Bronco Badlands, 4D, Hot Pepper Red, 2.7, Squatch, Lux, and MIC.
7/13/2020 10:04pm reservation. Blend 6/16/2022 Delivered 6/26/2022.
Dealership - Stephen's Auto Center.

Rank IV

Feb 05, 2024

#11
Deano Bronc
Good info here: https://www.bronco6g.com/forum/threads/75w85-rear-differential-gear-oil-what-are-you-using.81564/

And I'm still reading this thread - https://www.bronco6g.com/forum/threads/change-driveline-fluids-early.83929/

I'm going with Amsoil 75W-110 front and 75-140 rear as recommended by CarbonBronco.
Yah some of the stuff he says or does makes sense to me but some of it just doesn’t.

“The guy on the internet said…”
