Dash Configuration

AdventureTeam
Feb 25, 2025

Rank 0

Feb 25, 2025

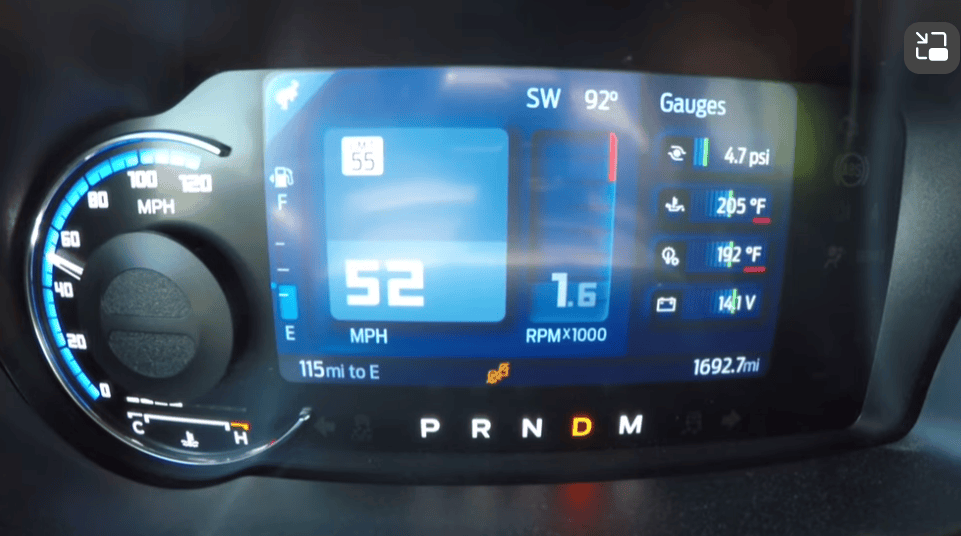

I am looking for guidance in creating this dash configuration. I seem to be able to add a single sweep style gauge, such as transmission temp, to the right hand side of the dash display, but I am unable to build the configuration above. I would like to have boost, oil temp, trans temp and voltage stacked on the right. However I am not hitting the proper setup to get multiple stacked.

Anyone with some configuration knowledge?

Burrito Connoisseur

Feb 25, 2025

#1

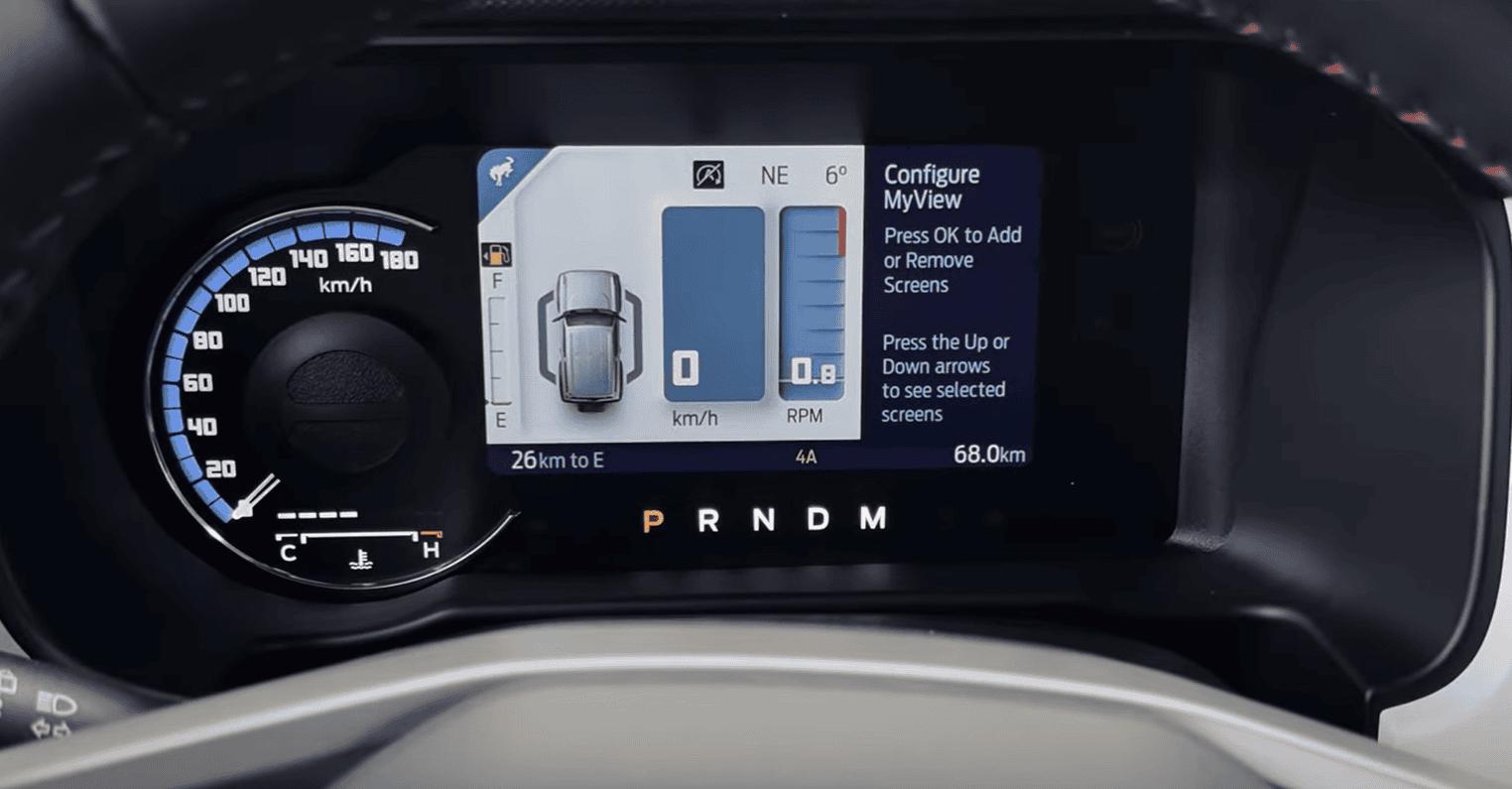

You have to go to the MyView settings and turn on the Gauges screen that shows multiple gauges. To do that scroll through with the right arrow button until you get to the "Configure MyView" section.


I should note that options vary based on your Bronco's configuration. For example, those of us with the manual transmission do not have a transmission temperature sensor, therefore do not have a gauge for that, which means that gauge will not appear when you use the Gauges screen.
2022 4dr Badlands, 2.3L Manual, Mid pkg
YouTube: youtube.com/@ragnarkon
Instagram: @ragnar.kon
Deano Bronc, 615_Bronco

Rank V

Mar 12, 2025

#2
Does anybody know if you can turn on the shift number light or shift indicator.
I know it pops on if I hit my manual shifter with my thumb but it doesn't stay on.
Just curious.

Go Team West Yellowstone and Albuquerque

Mar 13, 2025

#3
FatbikerJo Bronco
Does anybody know if you can turn on the shift number light or shift indicator.
I know it pops on if I hit my manual shifter with my thumb but it doesn't stay on.
Just curious.
I think this was asked some time ago and no one has been able to get it to remain on…
