Description
This Post details a custom cart I made to store my Bronco Doors and/or Roof Panels. I made two, one for the Doors, the other for the Hard Top Roof panels (3). I’ve posted it here for those Nation members who prefer to build things themselves. This is a fairly easy DIY project using 1” PVC pipe, 1” PVC connectors, a couple of furniture moving carts, and some Pool Noodles. You will also need a pair of PVC cutters and PVC pipe glue of course. The total cost was around $280, or about $140 for each cart.
Bill-of-Material
Instructions
Special Instructions
Where to Buy
This Post details a custom cart I made to store my Bronco Doors and/or Roof Panels. I made two, one for the Doors, the other for the Hard Top Roof panels (3). I’ve posted it here for those Nation members who prefer to build things themselves. This is a fairly easy DIY project using 1” PVC pipe, 1” PVC connectors, a couple of furniture moving carts, and some Pool Noodles. You will also need a pair of PVC cutters and PVC pipe glue of course. The total cost was around $280, or about $140 for each cart.
Bill-of-Material
| This is a Bill-of-Material for two Bronco Door/Roof Carts | |||
| Item | Description | Qty | Cost |
| 1 | Furniture Moving Dolly | 2 | $40.00 |
| 2 | PVC pipe 1”, 3-Way Elbow | 8 | $30.00 |
| 3 | PVC pipe 1”, 4-Way Elbow | 4 | $12.00 |
| 4 | PVC pipe 1”, 90 Degree Elbow | 12 | $22.00 |
| 5 | PVC pipe 1”, 17” Straight Piece, Vertical Poles | 12 | $124.00 |
| 6 | PVC pipe 1”, 14” Straight Piece, Horizontal Cross Poles | 12 | |
| 7 | PVC pipe 1”, 12” Straight Piece, Horizontal Base Poles | 8 | |
| 8 | Foam Pool Noodle, 15” Piece | 6 | $60.00 |
| 9 | Foam Pool Noodle, 12.5” Piece | 6 | |
| 10 | Foam Pool Noodle, 10” Piece | 4 | |
| Total Cost | $288.00 |
Instructions
- Assemble Furniture Moving Dolly per mfg instructions.
- Cut Foam Noodle pieces to length per BOM
- Cut PVC pipe pieces to length per BOM
- Carefully slide PVC pipe through Noodle pieces without tearing noodle inside

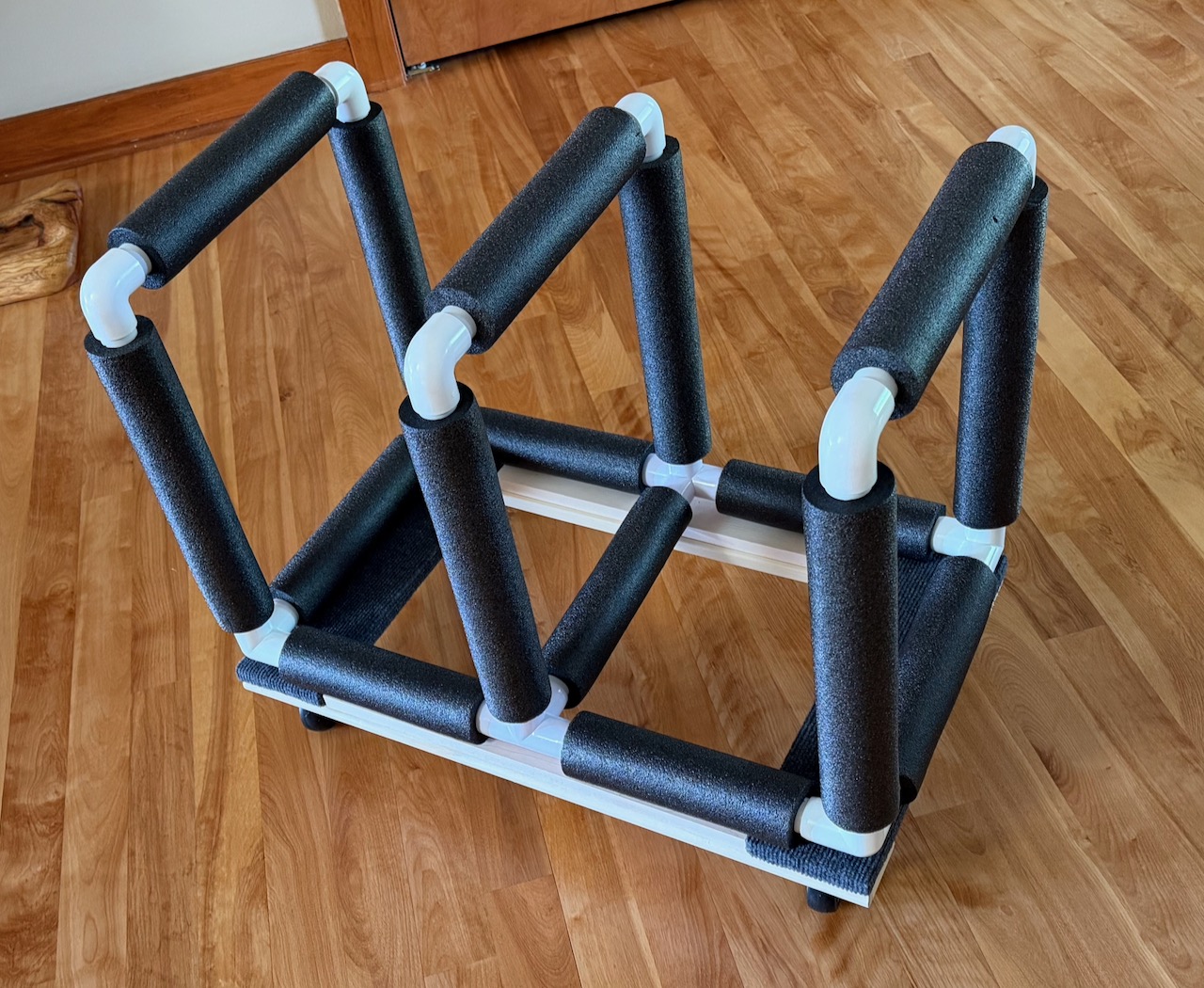

- Assemble all base pieces together per photo
- Drill hole through each of the 4 corner 3-way elbows
- Screw base 3-way elbows to Furniture Dolly
- Install vertical poles and upper cross poles into base
- Optional – Glue all pipe pieces together
Special Instructions
- I tried using PVC pipe from local home supply store but they did not fit in the noodles like the ones linked below from Amazon.
- You could save time and frustration by cutting the Noodles pieces down the middle and sliding them over the PVC pieces versus sliding the PVC pipe through them.
Where to Buy
| Furniture Moving Dolly, qty 2, qty required = 1 | $39.99 |
| PVC pipe 1”, 3-Way Elbow, Pack of 4, qty required = 2 | $14.99 |
| PVC pipe 1”, 4-Way Elbow, Pack of 4, qty required = 1 | $11.99 |
| PVC pipe 1”, 90 Degree Elbow, Pack of 10, qty required = 1 | $13.99 |
| PVC pipe 1”, 90 Degree Elbow, Pack of 4, qty required = 1 | $8.99 |
| PVC pipe 1”, 17” Straight Piece, Pack of 6, qty required = 2 | $19.99 |
| https://www.amazon.com/dp/B0DWSK524B?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1 | |
| PVC pipe 1”, 34” Straight Piece, Pack of 4, qty required = 3 | $27.99 |
| https://www.amazon.com/dp/B0G7VJ1G4W?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1 | |
| Foam Pool Noodles, 48” long, 2.6” diameter 1” hollow core, Pack of 6, qty req’d = 2 | $29.98 |
| https://www.amazon.com/dp/B0FJQQ3G84?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1 |
