Speaker up grade

warpig911

Aug 26, 2021

On a Cool note, You can easily up Grade your Speakers by ordering 4, 4 inch 2 way and 2, 6.5 inch 2 way for the footwell. Night and day difference. $300 total for a 100% crisper and clearer stereo. I installed the front and rear driver side and faded from passenger to driver side for a contrast of sound difference.
front windshield and rear roll bar, Kicker 47KSC404 Car Audio 4" Coaxial 300W Peak Full Range Speakers Pair KSC404.
lower front kick box. Kicker 6.5" Charcoal LED Marine Speakers 1 pair of OEM replacement speakers.

BuzzyBud, Rgwinn

Last edited by a moderator: Aug 26, 2021

Sort by date

Reaction Score

Aug 26, 2021

There are no footwell speakers in the Bronco

WT HOSS 4dr 2.7 MIC Lux Tow
7/16/20 Res -- 1/22/21, 10/8/21 Order -- 3/24/22 VIN -- 5/9/22, 5/23/22, 5/16/22, 6/6/22, 6/17/22 Build 7/15/22 Delivered

Munky

Aug 26, 2021

ResidualGenius
There are no footwell speakers in the Bronco

There are on the driver and passenger side kick panel under the dash.

Wildtrak, 4DR, Iconic Silver, High, Camo Seats.

Rgwinn, Bronc96

Aug 26, 2021

DRWright
There are on the driver and passenger side kick panel under the dash.

Nope, 2 left dash, center channel, 2 right dash, then 2 left and right rear and sub
the base package just has the dash and rear

Maybe the mini is different and has them

WT HOSS 4dr 2.7 MIC Lux Tow
7/16/20 Res -- 1/22/21, 10/8/21 Order -- 3/24/22 VIN -- 5/9/22, 5/23/22, 5/16/22, 6/6/22, 6/17/22 Build 7/15/22 Delivered

Aug 26, 2021

ResidualGenius
Nope, 2 left dash, center channel, 2 right dash, then 2 left and right rear and sub
the base package just has the dash and rear

Maybe the mini is different and has them

You should check again as there are 6.5 rounds at the feet.

7min

Wildtrak, 4DR, Iconic Silver, High, Camo Seats.

RdCrom86, Rgwinn

Aug 26, 2021

ResidualGenius
Nope, 2 left dash, center channel, 2 right dash, then 2 left and right rear and sub
the base package just has the dash and rear

Maybe the mini is different and has them

https://thebronconation.com/bronco-bo-sound-system-first-impressions-review-speaker-locations/per that article, says that they are in the kick panel.

Rgwinn, Bronc96

Aug 27, 2021

Hodg
https://thebronconation.com/bronco-bo-sound-system-first-impressions-review-speaker-locations/per that article, says that they are in the kick panel.

There MGV/washout at the dealer didnt have them, wonder if that is one of the million changes?

WT HOSS 4dr 2.7 MIC Lux Tow
7/16/20 Res -- 1/22/21, 10/8/21 Order -- 3/24/22 VIN -- 5/9/22, 5/23/22, 5/16/22, 6/6/22, 6/17/22 Build 7/15/22 Delivered

Aug 27, 2021

DRWright
You should check again as there are 6.5 rounds at the feet.

See above. But it would only make sense to not have electronics down to get wet.

WT HOSS 4dr 2.7 MIC Lux Tow
7/16/20 Res -- 1/22/21, 10/8/21 Order -- 3/24/22 VIN -- 5/9/22, 5/23/22, 5/16/22, 6/6/22, 6/17/22 Build 7/15/22 Delivered

Aug 27, 2021

ResidualGenius
See above. But it would only make sense to not have electronics down to get wet.

The Wildtrak I drove had them down there. I'll check the MGV Bronco at my dealer tomorrow.

Wildtrak, 4DR, Iconic Silver, High, Camo Seats.

Rgwinn, ResidualGenius

Aug 27, 2021

DRWright
ResidualGenius
See above. But it would only make sense to not have electronics down to get wet.
The Wildtrak I drove had them down there. I'll check the MGV Bronco at my dealer tomorrow.

I’m trying to think which one they had here, crap OBX (I know Cactus Grey LOL) I think. Dang it ugh

WT HOSS 4dr 2.7 MIC Lux Tow
7/16/20 Res -- 1/22/21, 10/8/21 Order -- 3/24/22 VIN -- 5/9/22, 5/23/22, 5/16/22, 6/6/22, 6/17/22 Build 7/15/22 Delivered

DRWright

Aug 27, 2021

#10

I’m looking at doing the Focal speakers,
6 1/2” Focal PC 165 X2
4” Focal PC 100 X4

Ordered: 4-Door First Edition - Rapid Red - Black Seats - MIC Top - Build Date: 10/25
In Garage: ‘62 Red Vette - ‘07 Black Shelby Ragtop - ‘21 F150 Platinum PowerBoost - Rapid Red

Bike007b, BrianBell66

Aug 27, 2021

#11

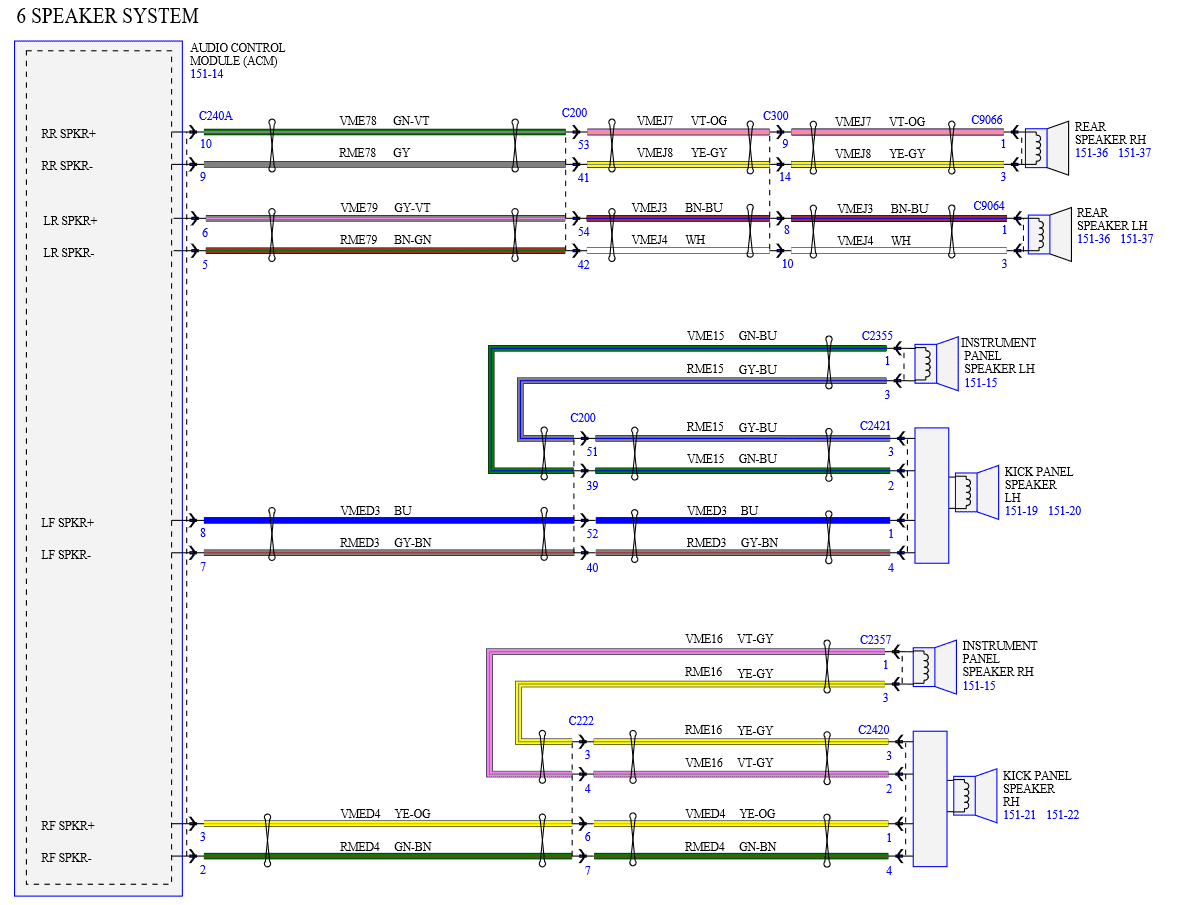

Also, here is a wiring diagram for the 6 speakers setup (borrowed from the other forums)

Ordered: 4-Door First Edition - Rapid Red - Black Seats - MIC Top - Build Date: 10/25
In Garage: ‘62 Red Vette - ‘07 Black Shelby Ragtop - ‘21 F150 Platinum PowerBoost - Rapid Red

ResidualGenius, 1Five1 Garage

Aug 27, 2021

#12

I have replaced the speakers in every ford I have ever owned with the exception of the wife's Lincoln. Not sure why Ford sources such crappy paper cone speakers for everything. Seriously they are like $15 bucks in the parts catalog. Nice to see the wiring diagrams and some of the early builds. At this rate, I will have a long weekend of upgrades lined up whenever in 22 the truck actually shows up.

2023 Wildtrak. "Sometimes you got to get lost, to get found" -J Bronco

ABQNMBronco, Bike007b

Aug 27, 2021

#13

Mal
I have replaced the speakers in every ford I have ever owned with the exception of the wife's Lincoln. Not sure why Ford sources such crappy paper cone speakers for everything. Seriously they are like $15 bucks in the parts catalog. Nice to see the wiring diagrams and some of the early builds. At this rate, I will have a long weekend of upgrades lined up whenever in 22 the truck actually shows up.

You answered your own question - they're cheap, and get the job done - and they're good enough for probably 98% of the car buyers.

Reservation: 7/20/20 | MY '21 order: 2/1/21 | MY '22 order: 10/22/21 | Blend 8/5, built 8/8, 'built' status 8/27, in my driveway 10/12/22
Auto Photographer in Sacramento CA:
www.instagram.com/photographybymarkbrooks

Jack4x4Leech, ABQNMBronco

Aug 27, 2021

#14

Rgwinn
I’m looking at doing the Focal speakers,
6 1/2” Focal PC 165 X2
4” Focal PC 100 X4

Focal are great! The main thing is to stay with the same brand and even same series within a brand. Especially to keep the tweeters the same so you don’t get any sound cancelation going on. At least that’s my 2 cents.

bobraz, Rgwinn

Jan 29, 2022

#15

Do you need a speaker adaptor ring for the 6.5 inch? if so, can you provide the link?

Jan 29, 2022

#16

ResidualGenius
Nope, 2 left dash, center channel, 2 right dash, then 2 left and right rear and sub
the base package just has the dash and rear

Maybe the mini is different and has them

That is only for the B&O system. Most of us don't have that.

2 door BL Sasquatch

bobraz

Jan 29, 2022

#17

Bike007b
Focal are great! The main thing is to stay with the same brand and even same series within a brand. Especially to keep the tweeters the same so you don’t get any sound cancelation going on. At least that’s my 2 cents.

Having a 40+ year career in sound engineering I can tell you that you are correct. As the left and right channels each represent half a sound field the speakers must be matched for timbre. From=nt and back are just a stereo pair so should also be the same as the other pair.

2 door BL Sasquatch

Jack4x4Leech, Bike007b

Jan 31, 2022

#18

John Taylor
That is only for the B&O system. Most of us don't have that.

this is from liken 6 months ago LOL

WT HOSS 4dr 2.7 MIC Lux Tow
7/16/20 Res -- 1/22/21, 10/8/21 Order -- 3/24/22 VIN -- 5/9/22, 5/23/22, 5/16/22, 6/6/22, 6/17/22 Build 7/15/22 Delivered

Feb 21, 2022

#19

Bike007b
Focal are great! The main thing is to stay with the same brand and even same series within a brand. Especially to keep the tweeters the same so you don’t get any sound cancelation going on. At least that’s my 2 cents.

Do the Focals fit the dash? Crutchfields does not list as compatible, maybe too deep?
