Here’s a quick recap of my recent organizational enhancements to my BadSquatch.

Rear cargo net - Vertical orientation

I used a pair of picture hanging brackets and drilled out the holes a little and added them to the soft top hold down clip bolts then used a mini Nite Ize carabiner to attach the net to the bracket. On the bottom, the net is clipped to the existing hold downs




Tailgate Molle panel

Ford part # VM2DZ-54407B00-A

The system offers lots of great storage for tools some recovery gear and an IFAK


Element Fire Extinguisher

Mounted with a pair of magnetic clips on the rollbar. (I used clear UHMW tape on the bar before install to avoid any scratches)




I will mount a small shovel on the opposite side utilizing a pair of quick fists and mount them in the nutserts on the rollbar.
- 2023 Raptor / Shadow Black / MGV (DOB 8/30/23)
- 2023 Heritage Limited Edition / Robin’s Egg Blue / 4dr / (stolen from my dealer 11/15/23)
rk105rider, Jakob1972
Last edited by a moderator: Nov 20, 2021

Rank 0

Nov 20, 2021

#1
Bschurr
Here’s a quick recap of my recent organizational enhancements to my BadSquatch.

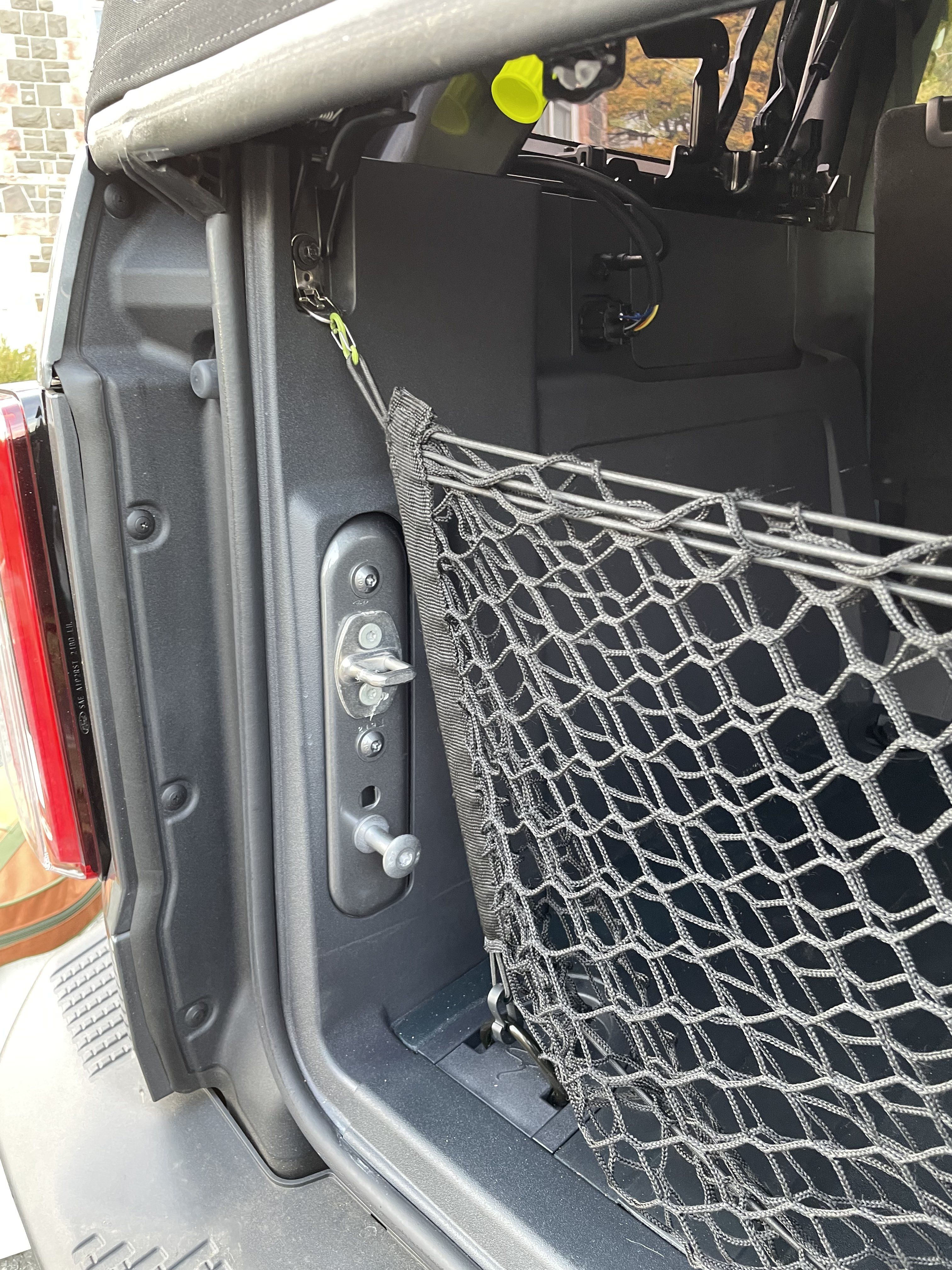

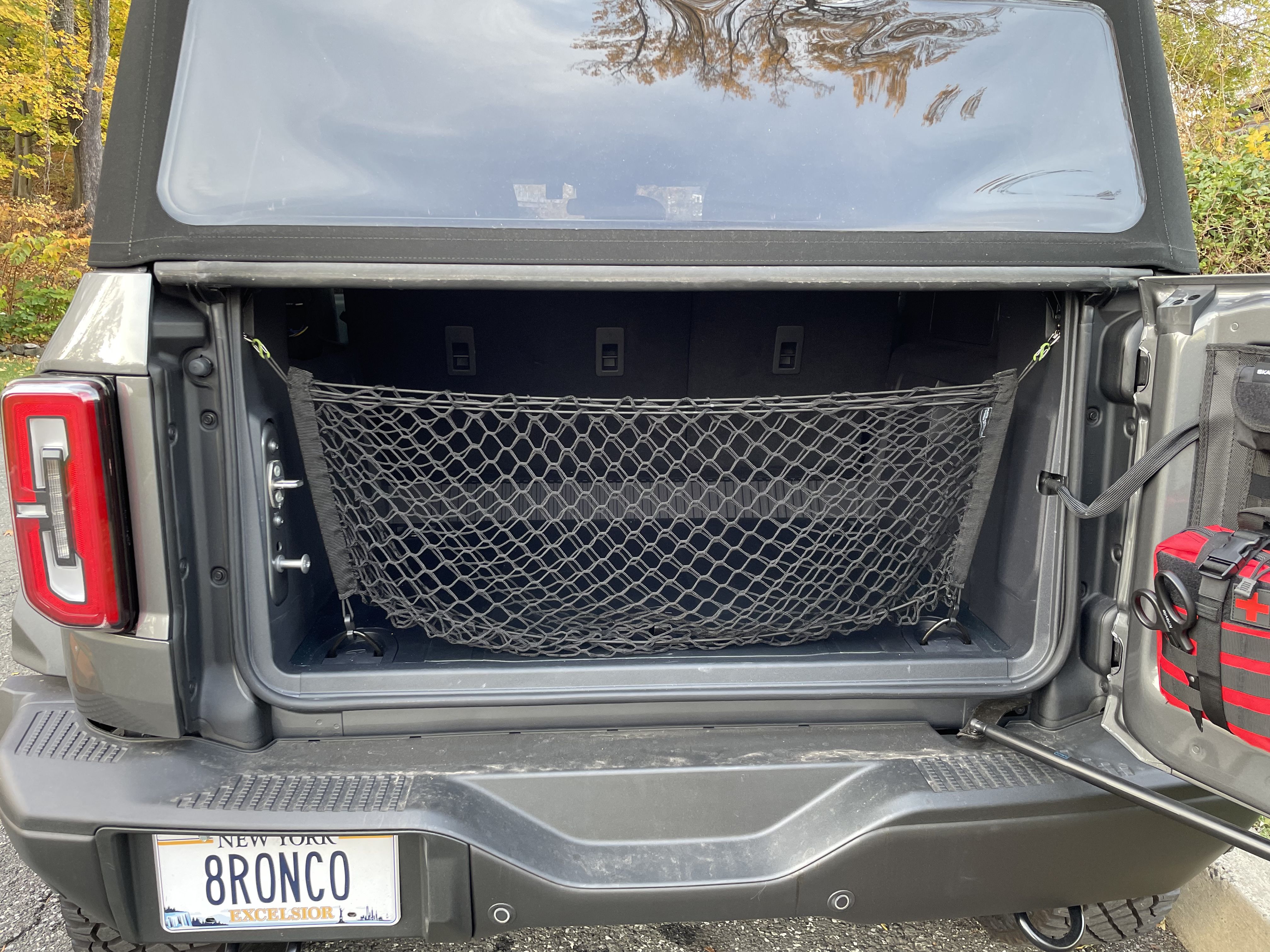

Rear cargo net - Vertical orientation

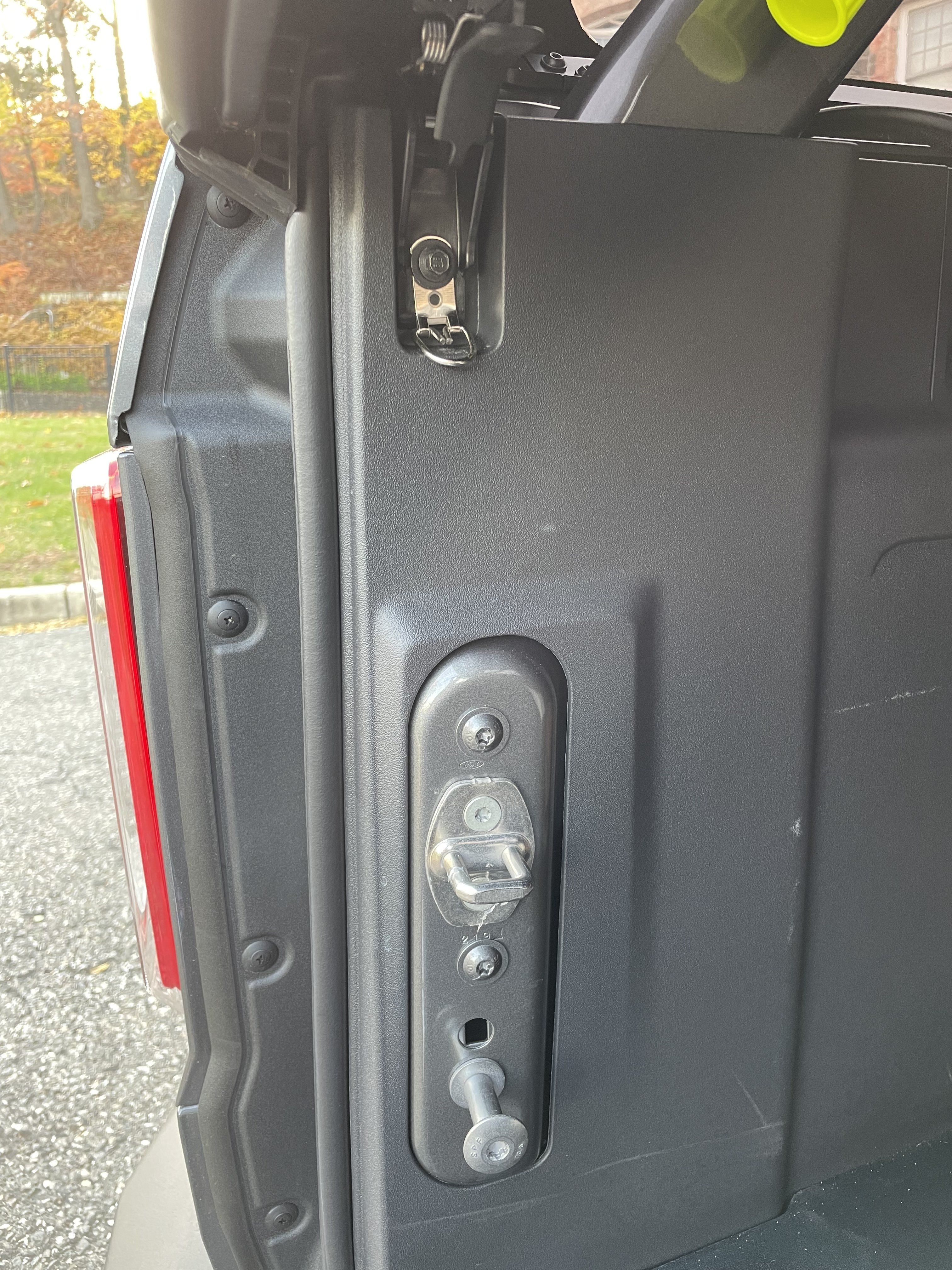

I used a pair of picture hanging brackets and drilled out the holes a little and added them to the soft top hold down clip bolts then used a mini Nite Ize carabiner to attach the net to the bracket. On the bottom, the net is clipped to the existing hold downs

View attachment 22289

View attachment 22290

View attachment 22288

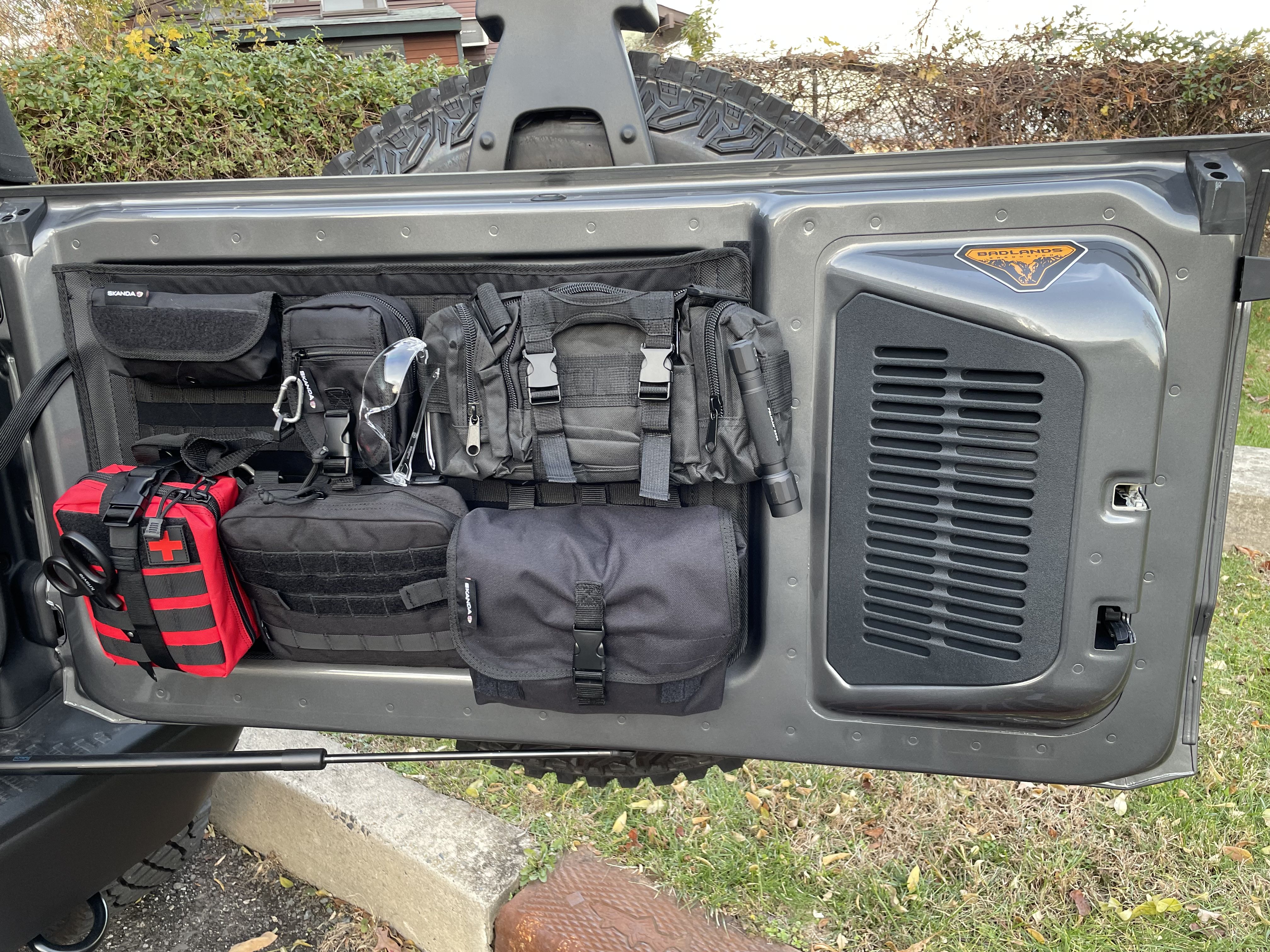

Tailgate Molle panel

Ford part # VM2DZ-54407B00-A

The system offers lots of great storage for tools some recovery gear and an IFAK

View attachment 22291

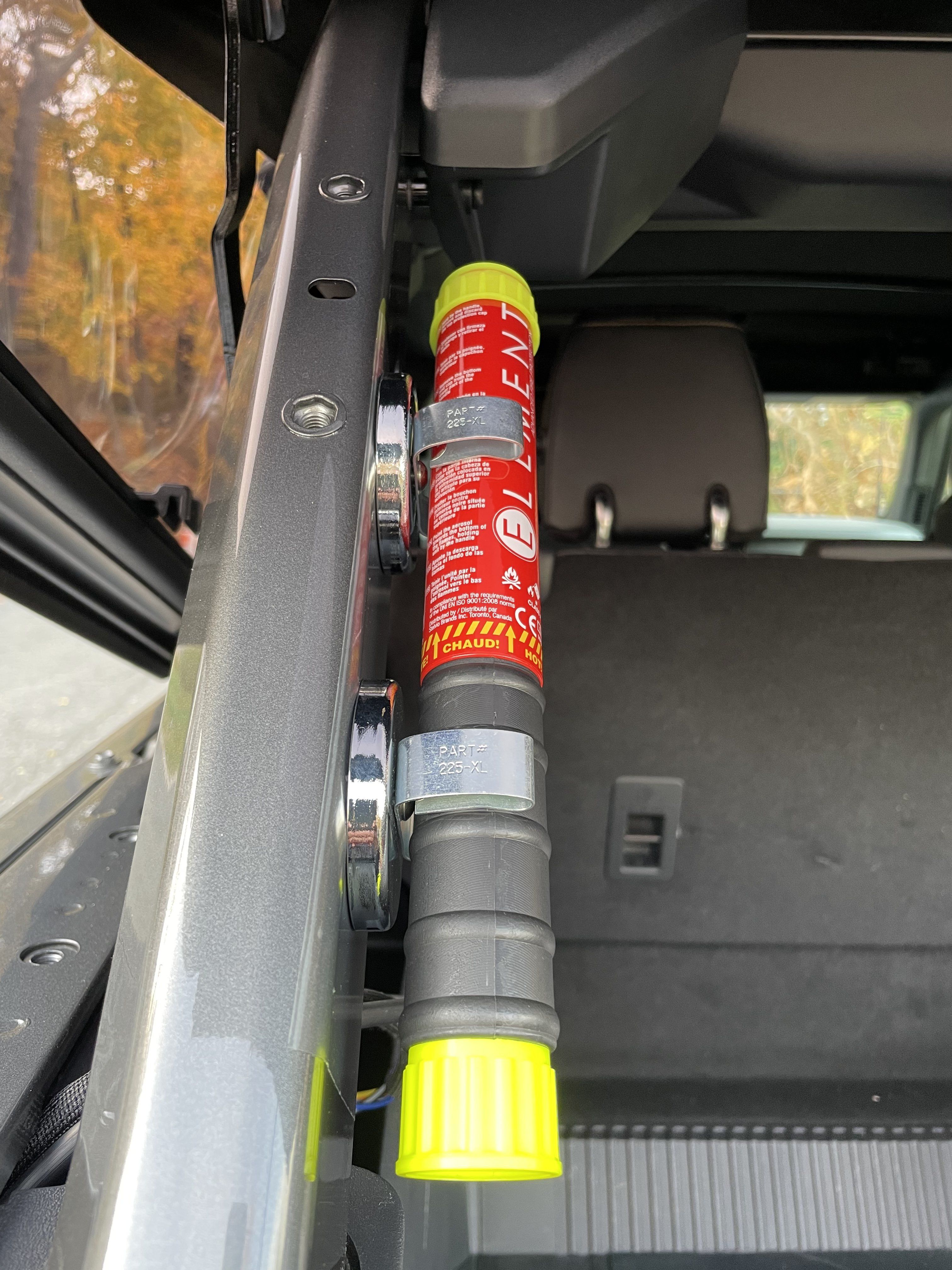

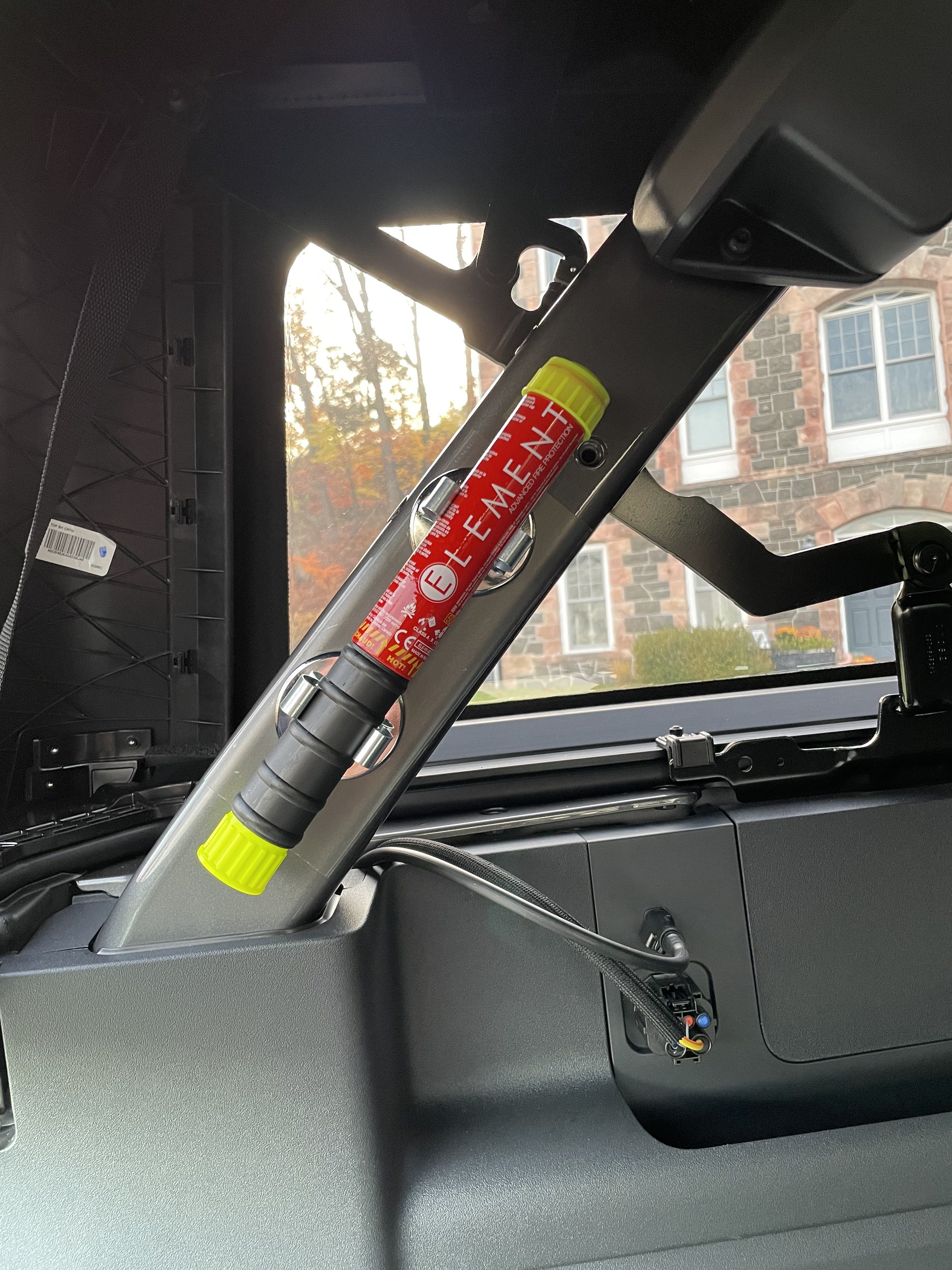

Element Fire Extinguisher

Mounted with a pair of magnetic clips on the rollbar. (I used clear UHMW tape on the bar before install to avoid any scratches)


View attachment 22292

View attachment 22293

I will mount a small shovel on the opposite side utilizing a pair of quick fists and mount them in the nutserts on the rollbar.
Nice.
Bschurr

Rank V

Nov 21, 2021

#2
That looks great! Can you share where you got the fire extinguisher and clips?
Deano Bronc

No Ragerts

Nov 21, 2021

#3
Browp24
That looks great! Can you share where you got the fire extinguisher and clips?
Thanks - I posted this a few weeks ago…

https://thebronconation.com/forums/...isher-great-product-promotion-ends-10-9.6764/
- 2023 Raptor / Shadow Black / MGV (DOB 8/30/23)
- 2023 Heritage Limited Edition / Robin’s Egg Blue / 4dr / (stolen from my dealer 11/15/23)
TK1215, Deano Bronc

Rank V

Nov 21, 2021

#4
Educate my soft top ignorance… what are power/electrical hookups in the cargo area pictured for ?

Team F Cancer!!

Nov 21, 2021

#5
dsnow58
Educate my soft top ignorance… what are power/electrical hookups in the cargo area pictured for ?
If down the road you want to fork over about $4000+ for a hardtop with rear wipers/defrost then the hookups are there
WT HOSS 4dr 2.7 MIC Lux Tow
7/16/20 Res -- 1/22/21, 10/8/21 Order -- 3/24/22 VIN -- 5/9/22, 5/23/22, 5/16/22, 6/6/22, 6/17/22 Build 7/15/22 Delivered
Bschurr

Rank V

Nov 21, 2021

#6
But he has a soft top, and already has 2 cables connected there, not to mention I have a hardtop and nothing is connected there. So I remain in the dark about what those hookups are for

No Ragerts

Nov 21, 2021

#7
dsnow58
But he has a soft top, and already has 2 cables connected there, not to mention I have a hardtop and nothing is connected there. So I remain in the dark about what those hookups are for
Rear defrost & rear wiper…
- 2023 Raptor / Shadow Black / MGV (DOB 8/30/23)
- 2023 Heritage Limited Edition / Robin’s Egg Blue / 4dr / (stolen from my dealer 11/15/23)

Team F Cancer!!

Nov 21, 2021

#8
dsnow58
But he has a soft top, and already has 2 cables connected there, not to mention I have a hardtop and nothing is connected there. So I remain in the dark about what those hookups are for
Correct, you have the MIC and they are already connected to your MIC top, He has a soft top and that is where they are basically stored when not in use. If you remove your hardtop thats where you would place them versus just dangling around
WT HOSS 4dr 2.7 MIC Lux Tow
7/16/20 Res -- 1/22/21, 10/8/21 Order -- 3/24/22 VIN -- 5/9/22, 5/23/22, 5/16/22, 6/6/22, 6/17/22 Build 7/15/22 Delivered
Bschurr

Rank V

Nov 21, 2021

#9
ResidualGenius
dsnow58
But he has a soft top, and already has 2 cables connected there, not to mention I have a hardtop and nothing is connected there. So I remain in the dark about what those hookups are for
Correct, you have the MIC and they are already connected to your MIC top, He has a soft top and that is where they are basically stored when not in use. If you remove your hardtop thats where you would place them versus just dangling around

Ahhhhh totally makes sense now. Thanks for seeing that through for me.
Jakob1972, ResidualGenius

Rank III

Nov 22, 2021

#10
I like that Tailgate Molle Panel…
