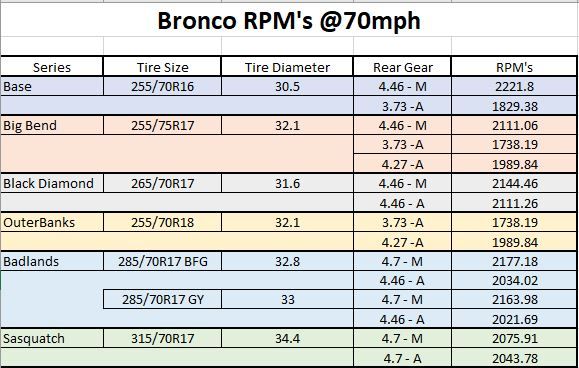

Bronco's RPM's @70mph for each series.

Deano Bronc

Nov 11, 2020

I keep hearing how the 4.7 gearing for the manual Badlands and the Sasquatch package is going to cause fairly high RPM's when driving down the highway.
I made all my calculations from this link - RPM Calculator
The final transmission ratio for the manual is .646:1 and the auto is .636:1 if you want to play around with different sized tires and rear gear.
It looks like the manual base cruises at the highest RPM and the auto Big Bend and Outerbanks with the 3.73's have the lowest RPMs.
The Sasquatch isn't too bad when compared to other series but of course gas mileage will be hurt due to extra weight and width of the 35's.
I hope someone finds this useful as I found it interesting. Please let me know if I forgot a combination.

2022 Bronco Badlands, 4D, Hot Pepper Red, 2.7, Squatch, Lux, and MIC.
7/13/2020 10:04pm reservation. Blend 6/16/2022 Delivered 6/26/2022.
Dealership - Stephen's Auto Center.

Soupcook, BroncoBill

Last edited by a moderator: Nov 11, 2020

Sort by date

Reaction Score

Nov 11, 2020

Very helpfully indeed. Thanks for posting

Bronco Nation 1100. Everglades, Desert Sand
Res: 7/30/20 ordered 1/22/21 reorder 10/15/21 changed to Everglades 3/9/22 schedule 8/29/22 bumped to 9/5; 9/7/22 blend, 9/9 Mods, 9/26/22 completed, 10/7 shipped, 11/3/22 delivery

Nov 11, 2020

Who drives 70mph? :unsure: More like 78mph. ;)

2021 Badlands, 4 door, 2.7L, Auto, LUX, SAS, Tow Package, MIC, Velocity Blue.

Rusty Shackleford, johndeerefarmer

Nov 11, 2020

Thanks for Posting! We here in Texas drive in the 80's. Run Wild right? lol

TXArchitect - 1719
[O=BRONCO=O]

BeardsBeer&Broncos, Jakob1972

Nov 11, 2020

SlashRacer
Who drives 70mph? :unsure: More like 78mph. ;)

TXArchitect
Thanks for Posting! We here in Texas drive in the 80's. Run Wild right? lol

Well, you all have school zones don't ya? :LOL:

2022 Bronco Badlands, 4D, Hot Pepper Red, 2.7, Squatch, Lux, and MIC.
7/13/2020 10:04pm reservation. Blend 6/16/2022 Delivered 6/26/2022.
Dealership - Stephen's Auto Center.

Gutter Clown, Smoothmove

Nov 11, 2020

Deano Bronc
Well, you all have school zones don't ya? :LOL:

What are those?!?! :ROFLMAO:

2021 Badlands, 4 door, 2.7L, Auto, LUX, SAS, Tow Package, MIC, Velocity Blue.

Rusty Shackleford, Speed Devil

Nov 11, 2020

Deano Bronc
Well, you all have school zones don't ya? :LOL:

I ordered an FE Bronco Sport in Cyber Orange. I will look just like the other buses and disappear. :eek:

TXArchitect - 1719
[O=BRONCO=O]

BeardsBeer&Broncos, Jakob1972

Nov 11, 2020

Deano Bronc
I keep hearing how the 4.7 gearing for the manual Badlands and the Sasquatch package is going to cause fairly high RPM's when driving down the highway.
I made all my calculations from this link - RPM Calculator
The final transmission ratio for the manual is .646:1 and the auto is .636:1 if you want to play around with different sized tires and rear gear.
It looks like the manual base cruises at the highest RPM and the auto Big Bend and Outerbanks with the 3.73's have the lowest RPMs.
The Sasquatch isn't too bad when compared to other series but of course gas mileage will be hurt due to extra weight and width of the 35's.
I hope someone finds this useful as I found it interesting. Please let me know if I forgot a combination.

View attachment 5529

Great job! Black diamond sticks out. Fairly significant increase in the automatic RPMs. My question is how the 2.3 will perform with the automatic given the low RPM. With only 310 ft-lbs of torque I hope it doesn’t continually downshift at highway speeds.

Jakob1972, SlashRacer

Nov 11, 2020

Great info Deano, thanks for crunching the numbers and posting! Not as bad as my 96 with E4OD and 4.10s, however appears my new Mansquatch won't have too much top end for road trips but that is the sacrifice for having the low end grunt. :p

Badlands, 2 door, 2.3L, Manual, High, Non-SAS, Tow Package, Roof Rails, MIC, Velocity Blue

Jakob1972, SlashRacer

Nov 11, 2020

JFord
Great job! Black diamond sticks out. Fairly significant increase in the automatic RPMs. My question is how the 2.3 will perform with the automatic given the low RPM. With only 310 ft-lbs of torque I hope it doesn’t continually downshift at highway speeds.

I had to laugh, it is funny how we are now talking about cars with only 310 ft-lbs of torque. I want to say my old F250 only had 400 ft-lbs and it was a torque beast and had to move around a CCSB 4x4 superduty not a midsize SUV.

ChetC, Bronc96

Nov 12, 2020

#10

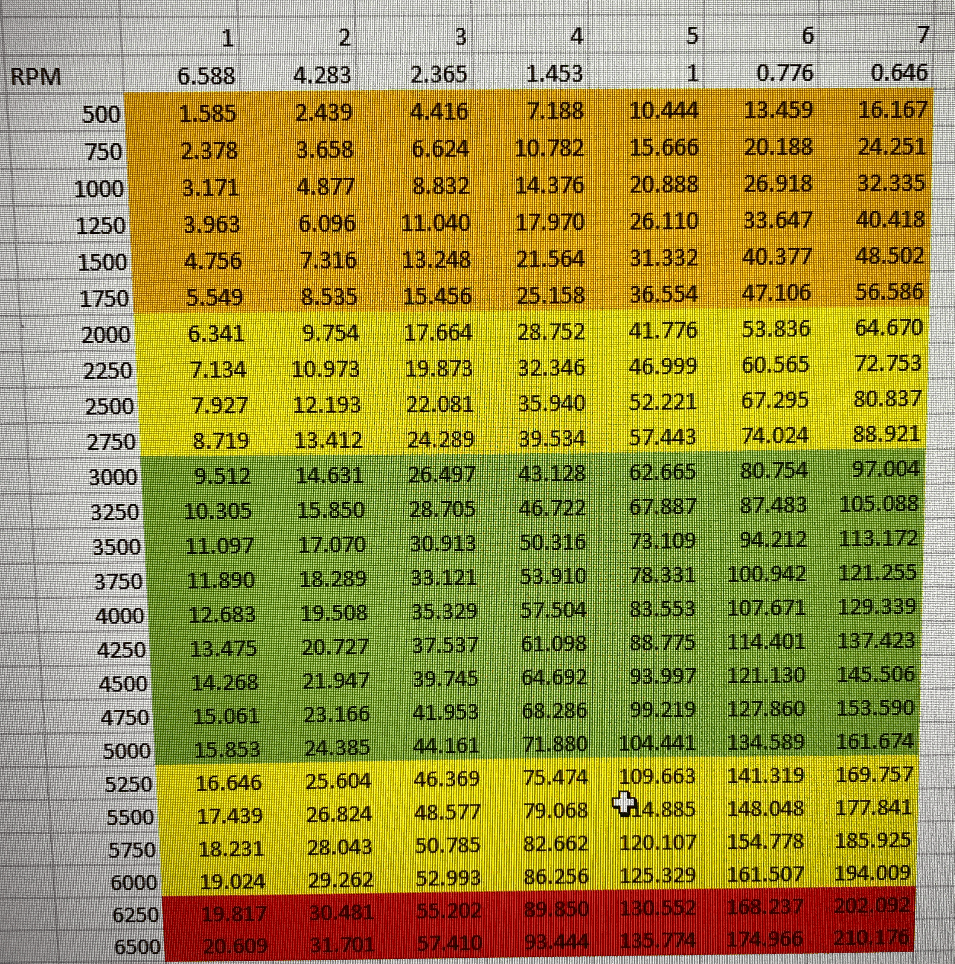

I did this for the Badlands, 2.3 and 7-speed with 33’s and 4.7 rear. Based the red/yellow/green bin the Ranger stock 2.3 dyno curves.

Based on this, I think quick passed, on the highway will warrant a downshift from 7, just where the Ranger dyno numbers land. The double overdrive and possibly a slightly different tune may help. 3k RPM looks to be where the boost really comes in so cruising should get decent MPG.

JFord, Jakob1972

Nov 12, 2020

#11

Deano Bronc
I keep hearing how the 4.7 gearing for the manual Badlands and the Sasquatch package is going to cause fairly high RPM's when driving down the highway.
I made all my calculations from this link - RPM Calculator
The final transmission ratio for the manual is .646:1 and the auto is .636:1 if you want to play around with different sized tires and rear gear.
It looks like the manual base cruises at the highest RPM and the auto Big Bend and Outerbanks with the 3.73's have the lowest RPMs.
The Sasquatch isn't too bad when compared to other series but of course gas mileage will be hurt due to extra weight and width of the 35's.
I hope someone finds this useful as I found it interesting. Please let me know if I forgot a combination.

View attachment 5529

Well, found one of my Featured User Threads for the week.

Bronco Nation Member #144
David in the Bronco Nation Forums
BroncoTroubadour on Instagram

Hobgoblin, Level3Looper

Nov 12, 2020

#12

Flourman
I did this for the Badlands, 2.3 and 7-speed with 33’s and 4.7 rear. Based the red/yellow/green bin the Ranger stock 2.3 dyno curves.

Based on this, I think quick passed, on the highway will warrant a downshift from 7, just where the Ranger dyno numbers land. The double overdrive and possibly a slightly different tune may help. 3k RPM looks to be where the boost really comes in so cruising should get decent MPG.

Great chart!
It's amazing that you would be going a little less than 10mph at 3000rpms when using the rock crawler gear.

2022 Bronco Badlands, 4D, Hot Pepper Red, 2.7, Squatch, Lux, and MIC.
7/13/2020 10:04pm reservation. Blend 6/16/2022 Delivered 6/26/2022.
Dealership - Stephen's Auto Center.

Bronc96, SlashRacer

Nov 12, 2020

#13

Deano Bronc
Great chart!
It's amazing that you would be going a little less than 10mph at 3000rpms when using the rock crawler gear.

Way back I was friends with a guy that raced (and still races) KOH. His original theory was being able to run a lower gear in the T-case (3-speed) and still be able to hit 120mph across the lakebed. The basis was at a 2:1 or less, he had that much more torque available. Same applies to the Bronco. My chart is just with the T-case in high range. Low range will be a BEAST.

TK1215, Deano Bronc

Nov 12, 2020

#14

Flourman
Way back I was friends with a guy that raced (and still races) KOH. His original theory was being able to run a lower gear in the T-case (3-speed) and still be able to hit 120mph across the lakebed. The basis was at a 2:1 or less, he had that much more torque available. Same applies to the Bronco. My chart is just with the T-case in high range. Low range will be a BEAST.

Wow, I hadn't even thought about low range. You would be just barely moving when the motor is in it's peak torque range.
Do you have a dyno sheet available to post for the 2.3?

2022 Bronco Badlands, 4D, Hot Pepper Red, 2.7, Squatch, Lux, and MIC.
7/13/2020 10:04pm reservation. Blend 6/16/2022 Delivered 6/26/2022.
Dealership - Stephen's Auto Center.

TK1215, SlashRacer

Nov 12, 2020

#15

Deano Bronc
Wow, I hadn't even thought about low range. You would be just barely moving when the motor is in it's peak torque range.
Do you have a dyno sheet available to post for the 2.3?

This is with the 10 spd and rear wheel numbers. Link to the article if you want it too.
https://www.fordf150blog.com/2019-ford-ranger-dyno-chart-2-3l-ecoboost/

Attachments

FFA0A9D4-6B13-4B9D-A0E5-8C6CD3E96037.jpeg 768 x 333 · 36.38 KB

TK1215, Deano Bronc

Nov 12, 2020

#16

JFord
This is with the 10 spd and rear wheel numbers. Link to the article if you want it too.
https://www.fordf150blog.com/2019-ford-ranger-dyno-chart-2-3l-ecoboost/

I believe that's the one I used. Basically looked at where torque started to peak, indicating the turbo spooling up and MPG subsequently dropping.

Deano Bronc, JFord

Feb 06, 2021

#17

SlashRacer
What are those?!?! :ROFLMAO:

Those are the school zones!

Jul 14, 2021

#18

Deano Bronc
Well, you all have school zones don't ya? :LOL:

SlashRacer
What are those?!?! :ROFLMAO:

So basically:

2dr Badlands 2.3 Manual w/Mid, Rapid Red
My blog, Mfcomics.net, my stories: https://payhip.com/MFComics

Rusty Shackleford, Jakob1972

Jul 15, 2021

#19

I was not expecting to find so many speed heads on a Bronco forum.... I am PLEASANTLY surprised. I am home.
