Yes I added another silly mod today but I'm a sucker for these things.
I already have the Oracle lighted grill letters but figured I'd try these when I came across them. It's another approach to lighting the grill letters but a much simpler install than replacing all 6 individual letters and the associated wiring that has to be hidden. I made a short install/review video with my cell phone but since I am NOT a professional YouTuber/Influencer , please forgive me ,lol.

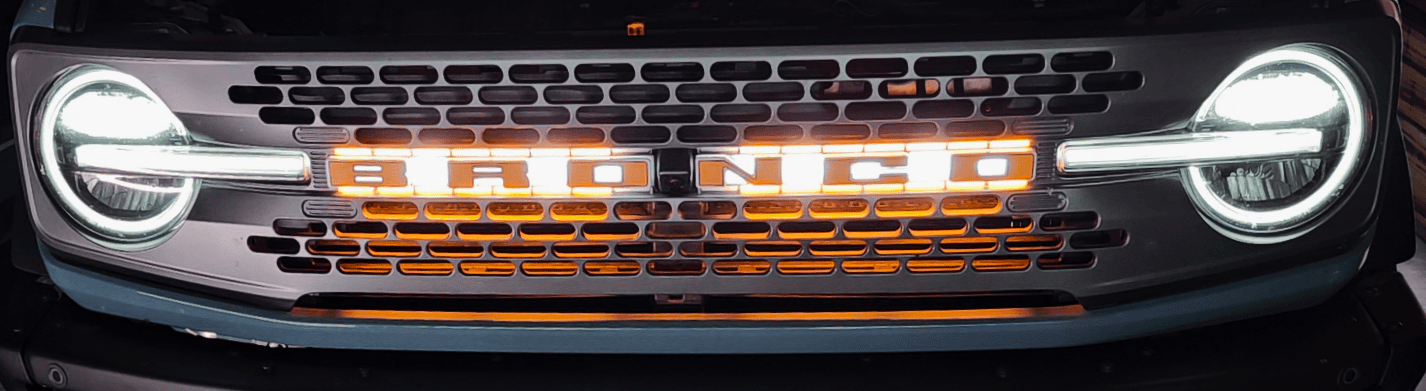

The amber highlights actually go quite well with the Orange trim of the Badlands . All in all it took me about 40 minutes to install as I already knew how to get the grill off .
Here is the video if interested .
2Dr Badlands - MIC - Area51 - 2.7 Auto - MGV - Headliner - High Pkg
Reserved 7/20/20 Delivered 5/6/23
"Ford said, hey we're gonna fulfill all reservations and pre-orders before we build stock units."
Chief Ron
Last edited by a moderator:
Sep 24, 2023
Sort by date
Reaction Score
Don't Follow Me ,I'm about to do something Stupid
Rydfree
September 01, 2020
1543
4541
4080
Member #
1454
Sep 30, 2023
#1
Modified these grill lites today so that they would work together or separate.
I had the ORACLE back-lit Bronco letters wired to a programmable sequencer but you could not tell they were on after I installed the Back lighted LED panels from Broaddict behind those. Wired a time adjustable delay circuit in line with the Broaddict panels so the ORACLE letters could finish their flashing sequence before the Broaddict panels start their sequence. Flashing pattern is only during engine start then they stay solid . AUX # 6 will override to keep them off during daylight if I want . They are visible during the day except in the brightest direct sunlight.
