Auxiliary switch wiring termination points

hotlizrd

Aug 22, 2025

Yesterday at 12:24 am

I just purchased a new '24 Badlands Sasquatch with 6 aux. switches. Does anyone know where to find a location schematic of the wire termination points?
Thanks in advance!

Sort by date

Reaction Score

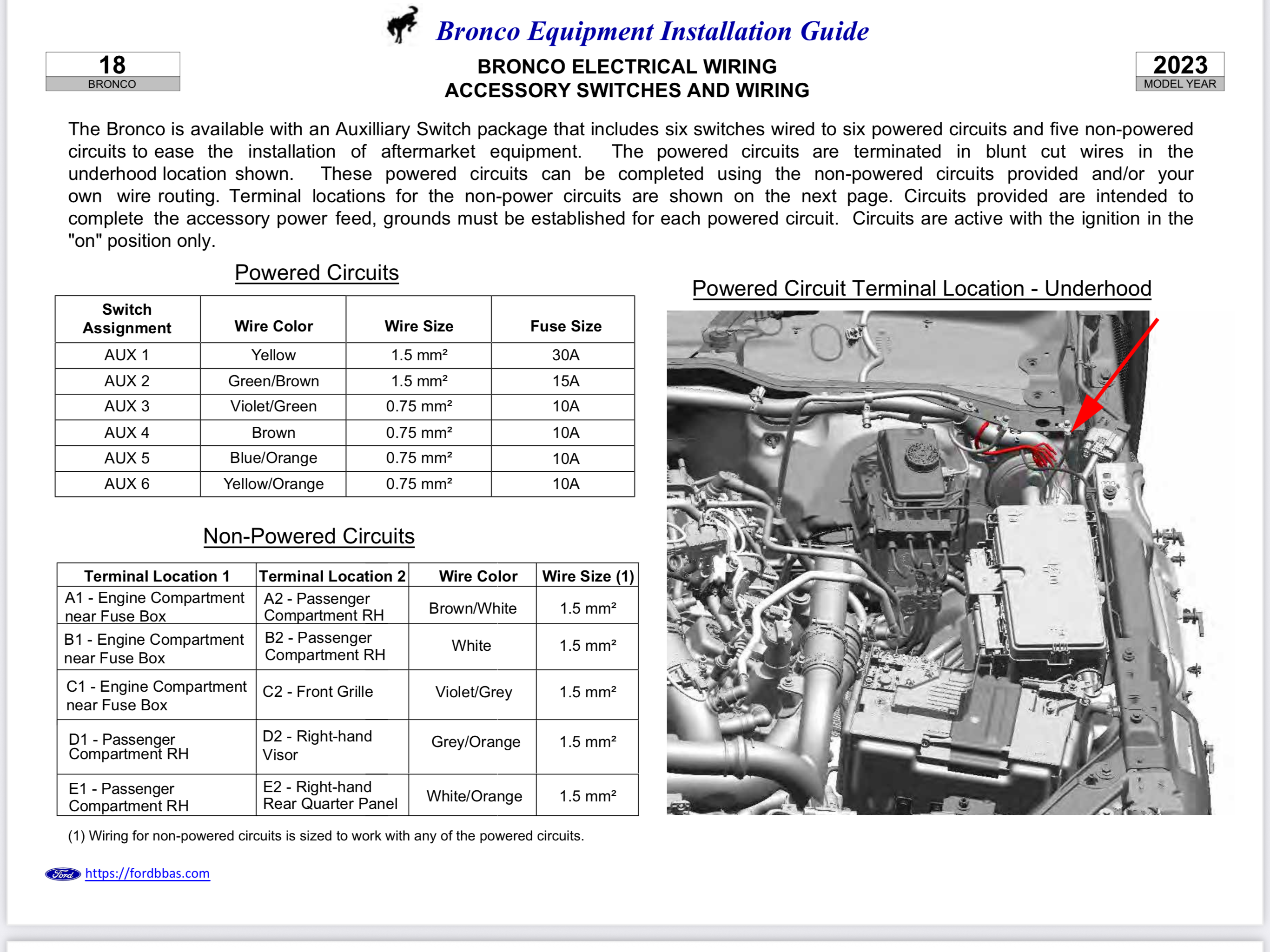

Yesterday at 12:47 am

Riding OB1, 23 4- door Outer Banks, SAS, MOD, MIC, Lux, Ordered 10/20/22, delivered 1/13/23

hotlizrd, UserError

Yesterday at 2:21 am

That's great - thank you.

Yesterday at 3:26 pm

I believe beginning in 2024 Ford quit putting this info in the owners manual, and instead published an installation guide..

I think this link will give you a 24 guide

https://www.bronco6g.com/forum/attachments/2024-ford-bronco-equipment-installation-guide-pdf.613940/

Riding OB1, 23 4- door Outer Banks, SAS, MOD, MIC, Lux, Ordered 10/20/22, delivered 1/13/23

hotlizrd, UserError

Yesterday at 3:51 pm

Bluestreak57
I believe beginning in 2024 Ford quit putting this info in the owners manual, and instead published an installation guide..

I think this link will give you a 24 guide

https://www.bronco6g.com/forum/attachments/2024-ford-bronco-equipment-installation-guide-pdf.613940/

Do you have a link for the 2025 Bronco Sport document? Please/thanks.

Yesterday at 5:43 pm

dwrufus53
Do you have a link for the 2025 Bronco Sport document? Please/thanks.

I don’t, but if you go to Ford.com and under support you should be able to find it… you might have to provide a VIN

Riding OB1, 23 4- door Outer Banks, SAS, MOD, MIC, Lux, Ordered 10/20/22, delivered 1/13/23

TK1215

Yesterday at 7:41 pm

Thanks Bluestreak57, I can now install some aftermarket lights.

Bluestreak57

Yesterday at 8:07 pm

Thank you so much!! Just bought 4 KC Lights , now it will be easy to wire up!!!

Yesterday at 9:49 pm

Bluestreak57

Wait the Raptor has a different wiring set up. I wanna say my Aux 1 is the 30A on my 22 Glades. Basically Aux1 and Aux3 are flipped.

Bronco Nation 1100. Everglades, Desert Sand
Res: 7/30/20 ordered 1/22/21 reorder 10/15/21 changed to Everglades 3/9/22 schedule 8/29/22 bumped to 9/5; 9/7/22 blend, 9/9 Mods, 9/26/22 completed, 10/7 shipped, 11/3/22 delivery

Yesterday at 10:21 pm

Jakob1972
Wait the Raptor has a different wiring set up. I wanna say my Aux 1 is the 30A on my 22 Glades. Basically Aux1 and Aux3 are flipped.

MY BAD, POSTED THE WRONG PICTURE (FOR THE RAPTOR)…
STAND BY…
HERE’S THE RIGHT STUFF

Riding OB1, 23 4- door Outer Banks, SAS, MOD, MIC, Lux, Ordered 10/20/22, delivered 1/13/23
