4WP Race Red Black Diamond Build

David

Mar 30, 2021

4WPs put together an incredible Bronco build. Starting with a non-Sasquatch Black Diamond, they went to town and the results are incredible to behold.

Fords Blurb on the Build:

Custom Bronco by 4 Wheel Parts

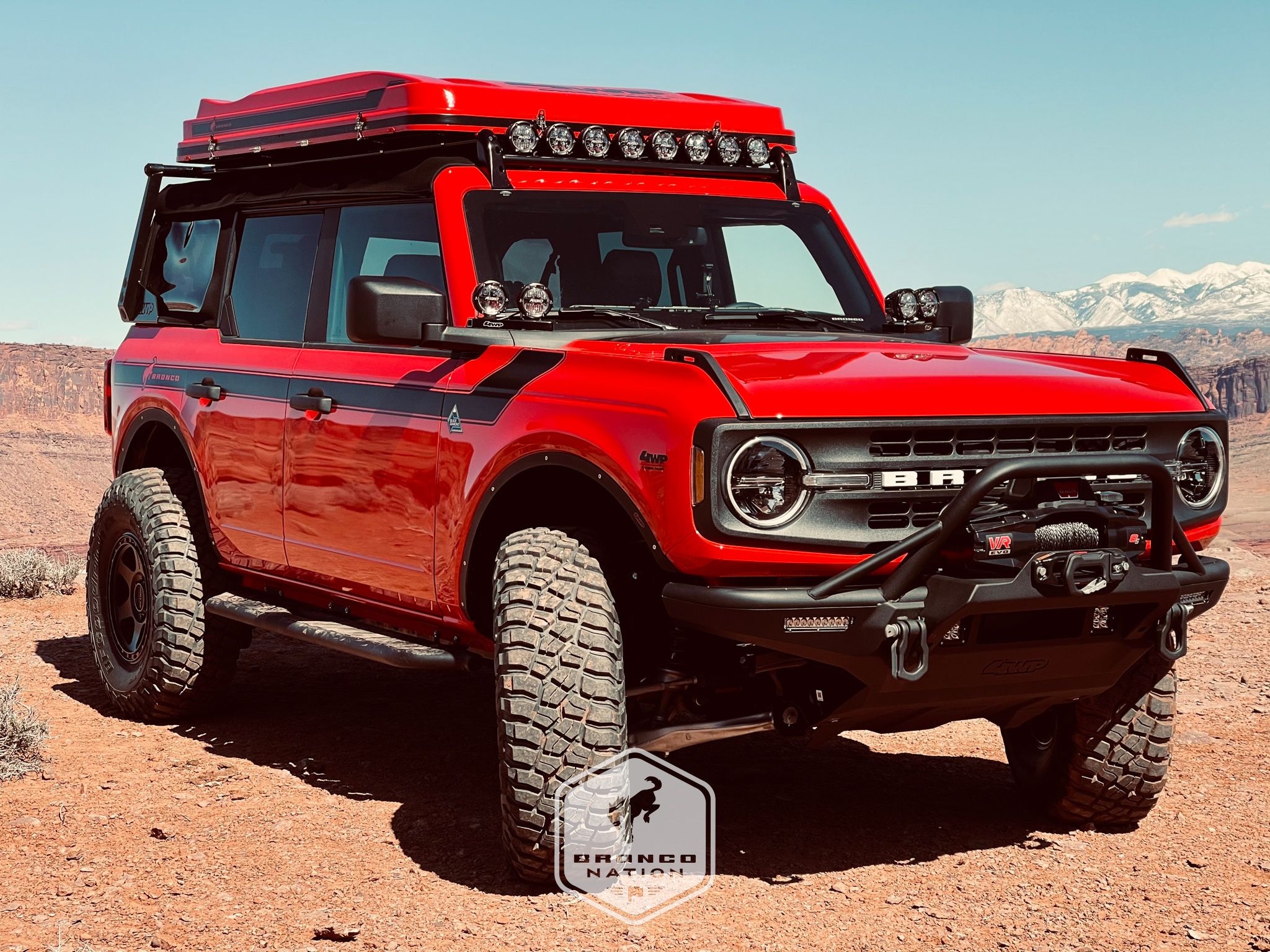

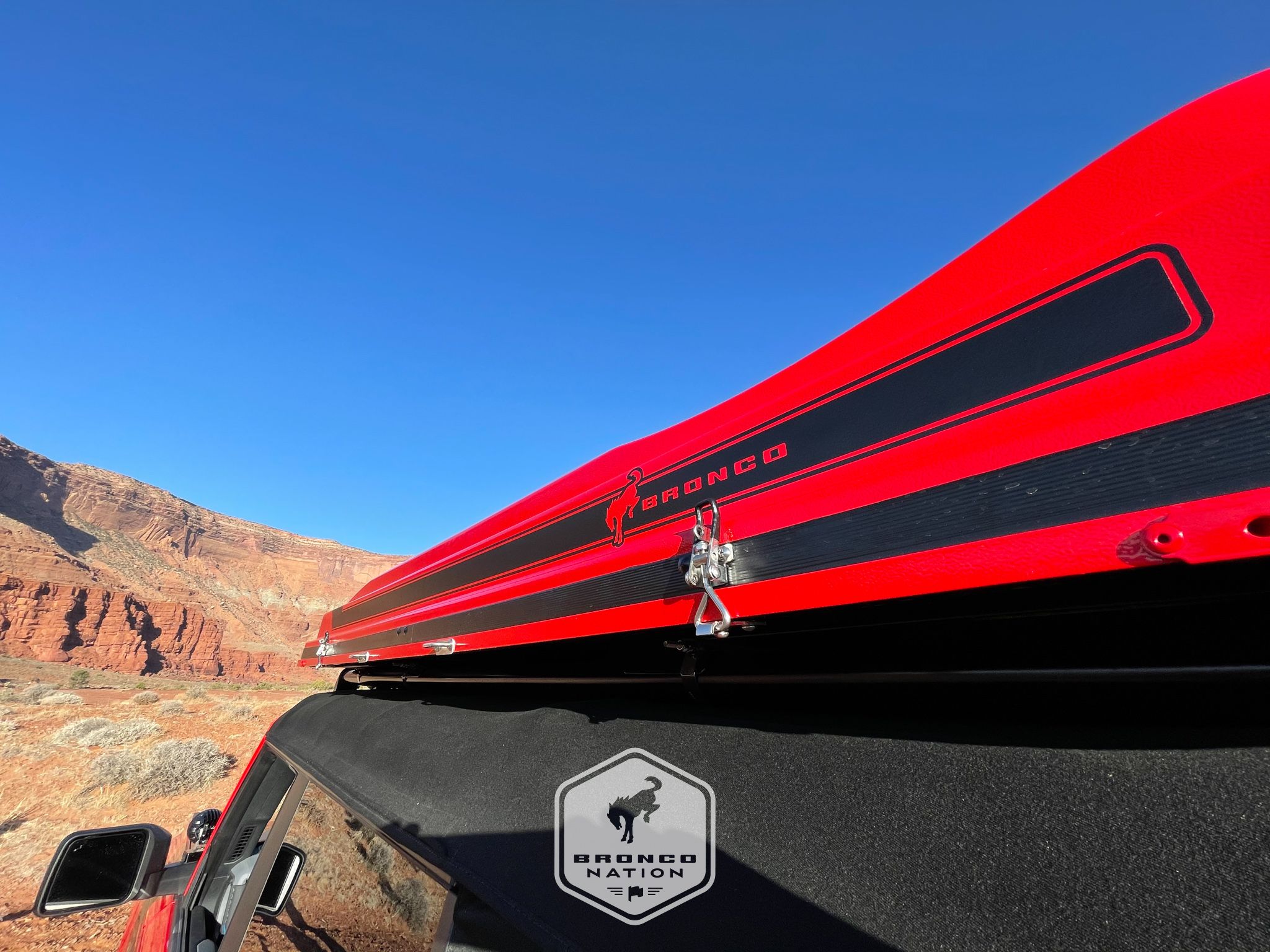

The custom Bronco four-door Black Diamond series SUV features a mix of 4 Wheel Parts factory brand parts including a modular front bumper, skid plate and winch platform, heavy-duty suspension components, custom roof rack and light mounts, plus a Smittybilt overhead tent and camping gear, awning and refrigerator/air system. It rides on 37-inch BFGoodrich® mud-terrain tires mounted to 17-inch Method alloy wheels.

“To date, we’ve already added more than 30 new 4 Wheel Parts brand products that take advantage of the Bronco modular design,” said Kathryn Reinhardt, senior marketing manager, 4 Wheel Parts. “We expect that list to grow as we aim to give our customers innovative products for every type of off-road lifestyle.”

Bronco Nation Pics:

Bronco Nation Member #144
David in the Bronco Nation Forums
BroncoTroubadour on Instagram

CZSeventyFive, Ian Lacasse

Last edited by a moderator: Mar 30, 2021

Sort by date

Reaction Score

Mar 30, 2021

Good stuff! @BuzzyBud is gonna love the rooftop tent situation on that rig...

interesting look with the flares removed

- 2023 Raptor / Shadow Black / MGV (DOB 8/30/23)
- 2023 Heritage Limited Edition / Robin’s Egg Blue / 4dr / (stolen from my dealer 11/15/23)

Steve777468, Rgwinn

Mar 30, 2021

More fancy pics from Ford:

Bronco Nation Member #144
David in the Bronco Nation Forums
BroncoTroubadour on Instagram

Rockett, Jrusek

Mar 30, 2021

Thanks for the greats pics @David! (y)

That's one sweet Bronc! Starting to second guess my BL order and go back to BaseSquatch to build. I can't wait to see what else is available!

Also, I spotted the bring your own device rail on the dash again...hopefully that is a good sign. :)

Badlands, 2 door, 2.3L, Manual, High, Non-SAS, Tow Package, Roof Rails, MIC, Velocity Blue

Steve777468, TK1215

Mar 30, 2021

Bronc96
Thanks for the greats pics @David! (y)

That's one sweet Bronc! Starting to second guess my BL order and go back to BaseSquatch to build. I can't wait to see what else is available!

Also, I spotted the bring your own device rail on the dash again...hopefully that is a good sign. :)

Yep, we should do an article on it but word is that 4WP has been tapped to make the BYOD rail. It will be available for purchase from them and fit on any Bronco.

Bronco Nation Member #144
David in the Bronco Nation Forums
BroncoTroubadour on Instagram

SlashRacer, Steve777468

Mar 30, 2021

David
Yep, we should do an article on it but word is that 4WP has been tapped to make the BYOD rail. It will be available for purchase from them and fit on any Bronco.

That is great news. The one here is much wider than the other one we have seen. May be more than one option for us?

SlashRacer, Steve777468

Mar 30, 2021

The rear bumper looks great. They also created a plate mount on the spare tire. Good stuff.

Steve777468, TK1215

Mar 30, 2021

Hobgoblin
The rear bumper looks great. They also created a plate mount on the spare tire. Good stuff.

I agree. The rear bumper looks sweet!

2022 Bronco Badlands, 4D, Hot Pepper Red, 2.7, Squatch, Lux, and MIC.
7/13/2020 10:04pm reservation. Blend 6/16/2022 Delivered 6/26/2022.
Dealership - Stephen's Auto Center.

Steve777468, Gutter Clown

Mar 30, 2021

Is there any way we can get a list of what all appears to have been done by these modders? Tire/wheel size would be great, to have a comparison visually for what we might like. Also, what suspension upgrades did 4WP do?

2017 Nissan Titan XD 4x4
2021 Ford Bronco Big Bend 4dr, cactus gray, soft top, 4.27 rear end
June 7--no wait, June 28 build date

Steve777468, NurseDan

Mar 30, 2021

David
4WPs put together an incredible Bronco build. Starting with a non-Sasquatch Black Diamond, they went to town and the results are incredible to behold.

Fords Blurb on the Build:

Custom Bronco by 4 Wheel Parts

The custom Bronco four-door Black Diamond series SUV features a mix of 4 Wheel Parts factory brand parts including a modular front bumper, skid plate and winch platform, heavy-duty suspension components, custom roof rack and light mounts, plus a Smittybilt overhead tent and camping gear, awning and refrigerator/air system. It rides on 37-inch BFGoodrich® mud-terrain tires mounted to 17-inch Method alloy wheels.

“To date, we’ve already added more than 30 new 4 Wheel Parts brand products that take advantage of the Bronco modular design,” said Kathryn Reinhardt, senior marketing manager, 4 Wheel Parts. “We expect that list to grow as we aim to give our customers innovative products for every type of off-road lifestyle.”

Bronco Nation Pics:
View attachment 10763
View attachment 10768
View attachment 10764
View attachment 10765
View attachment 10766
View attachment 10767
View attachment 10769
View attachment 10770
View attachment 10771 View attachment 10772

Thank you! I can't wait to get mine and start building.

14U

Mar 30, 2021

#10

Wow, that red looks sooo good!

Steve777468, Gutter Clown

Mar 30, 2021

#11

DAMN this looks hot! I will not change from CO to Red, I will not change from CO to Red, I will not change from CO to Red . . .

Reserved 7/14/20 - Ordered Converted 1/19/21: 2 Dr Cyber Orange Badlands w/ 2.3L, 7MT, MGV, High, Tow
Tentative Build Date - Week of 11/15/21
Toys: 1971 FJ40 - 1989 Toyota Pickup - 1998 C5 vert

Steve777468, Gutter Clown

Mar 30, 2021

#12

Well, guess that front bumper doesn't solve the camera issue LOL But damn it it's badass!!

WT HOSS 4dr 2.7 MIC Lux Tow
7/16/20 Res -- 1/22/21, 10/8/21 Order -- 3/24/22 VIN -- 5/9/22, 5/23/22, 5/16/22, 6/6/22, 6/17/22 Build 7/15/22 Delivered
Storm Factor - Never Stop Chasing! BrawnCo.Club 501c3 Pending

Rockett, SlashRacer

Mar 30, 2021

#13

I definitely want to know more about that roof rack. Full length, external cage that looks pretty good. Hope it will work with the hard top.

Also, the locking hubs are interesting.

"Of all the paths you take in life, make sure a few of them are dirt" - John Muir
"The mountains are calling, and I must go..." - John Muir
BN #0120

SlashRacer, Steve777468

Mar 30, 2021

#14

There is soooooo much to love about this build! Thanks for posting @David !

Steve777468, ResidualGenius

Mar 30, 2021

#15

Anyone else see 4WP saying COMING 3/30/21???? That's Today!! Could we see some AM parts?? Catalog release?? Just these pics (LOL)??

Steve777468, Gutter Clown

Mar 30, 2021

#16

Well it looks like the sides of my Bronco will be staying dirty most of the time cause me likey the fender flare delete :)

2Dr Badlands - MIC - Area51 - 2.7 Auto - MGV - Headliner - High Pkg
Reserved 7/20/20 Delivered 5/6/23
"Ford said, hey we're gonna fulfill all reservations and pre-orders before we build stock units."

SlashRacer, Steve777468

Mar 30, 2021

#17

VERY Nice! I'm liking that flare delete too. All good touches. Just curious why they added lockout hubs? Usually not seen on jeep builds unless there is a front axle upgrade - or in the Bronco's case, a solid axle swap. But still appears to be IFS?

2022 Bronco BadSquatch, 1974 Bronco Ranger, 1976 Bronco Crawler, 1978 Bronco Custom

SlashRacer, Steve777468

Mar 30, 2021

#18

Looks good riding on 37's. I'm curious as to what kind of lift they put on this thing. I know there are a lot of questions to what tires will/will not fit under a stock Black Diamond.

Steve777468, Beastmode666

Mar 30, 2021

#19

ResidualGenius
Well, guess that front bumper doesn't solve the camera issue LOL But damn it it's badass!!

The Black Diamonds can't have high package so they never have a front camera to begin with. You can go crazy with whatever big camera zone covering accessory you want.

SlashRacer, Steve777468
