MT Canyon wheel upgrade Back Space / Offset ?

Dragon158
Feb 24, 2025

Shawn

Feb 24, 2025

https://www.mickeythompsontires.com/wheels/canyon-polished

I very much am looking to purchase a set of these wheels for my 23 Big Bend Bronco. I currently have a set of stock Badland wheels and tires installed. I will not be lifting or doing much offloading, I simply like the look of the "slot" style wheels. If I'm not mistaken I'm close to 33" with the stock Bad Land tires now and I will be staying with those tires, just want to swap the new rims on.

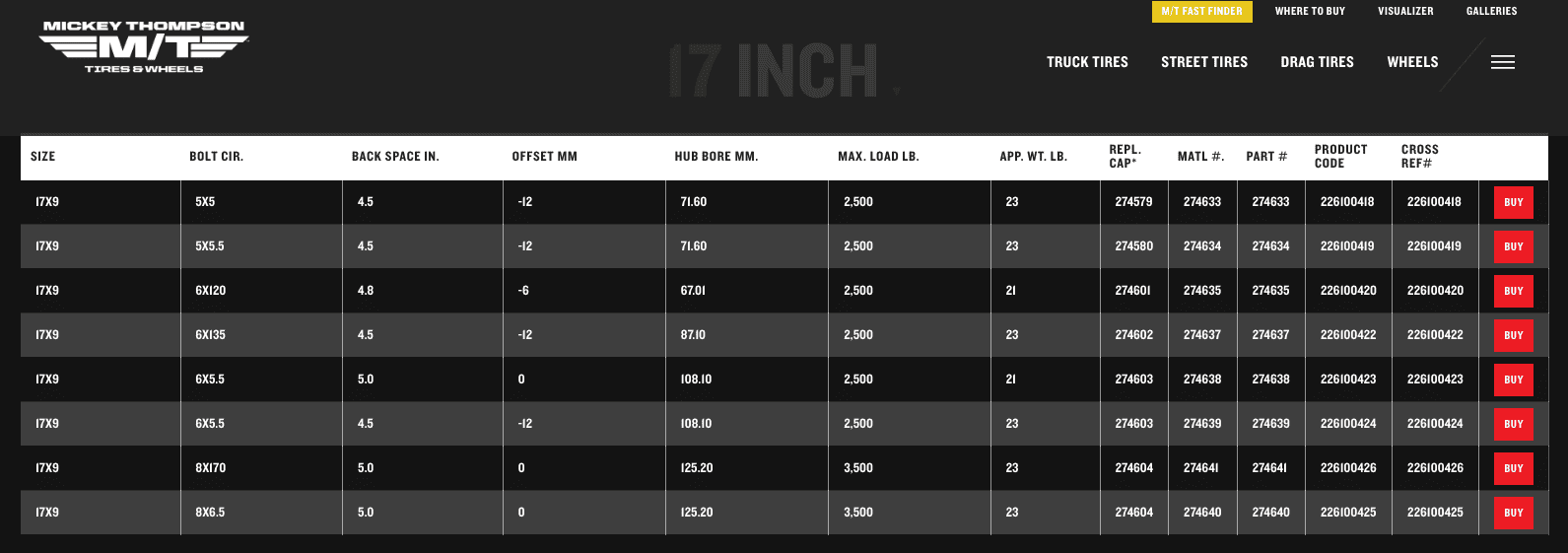

My question is, with the options below which ones do I buy? Back Space 5.0 / Offset 0mm or 4.5 / -12mm Offset? I don't mind them sticking out a little bit more, have never been good figuring this out. I used to just put them on and see how they looked! But don't have the option in this case.

Last edited by a moderator: Feb 24, 2025
Moderator

Looking forward to being Rocky Mountain high!

Feb 24, 2025

#1
https://www.mickeythompsontires.com/wheels/canyon-polished

I very much am looking to purchase a set of these wheels for my 23 Big Bend Bronco. I currently have a set of stock Badland wheels and tires installed. I will not be lifting or doing much offloading, I simply like the look of the "slot" style wheels. If I'm not mistaken I'm close to 33" with the stock Bad Land tires now and I will be staying with those tires, just want to swap the new rims on.

My question is, with the options below which ones do I buy? Back Space 5.0 / Offset 0mm or 4.5 / -12mm Offset? I don't mind them sticking out a little bit more, have never been good figuring this out. I used to just put them on and see how they looked! But don't have the option in this case.


The stock badland wheels are 8" wide with a 55mm offset. If you go with the 17x9 with the 6x5.5 bolt circle and 0 offset, the tire will stick out a little more than 2.5". That's a lot of poke.

BTW - the center wheel bore is 93.1mm so make sure you get one at or larger than that.

I used this calculator - https://n4sm.com/pages/wheel-offset-calculator

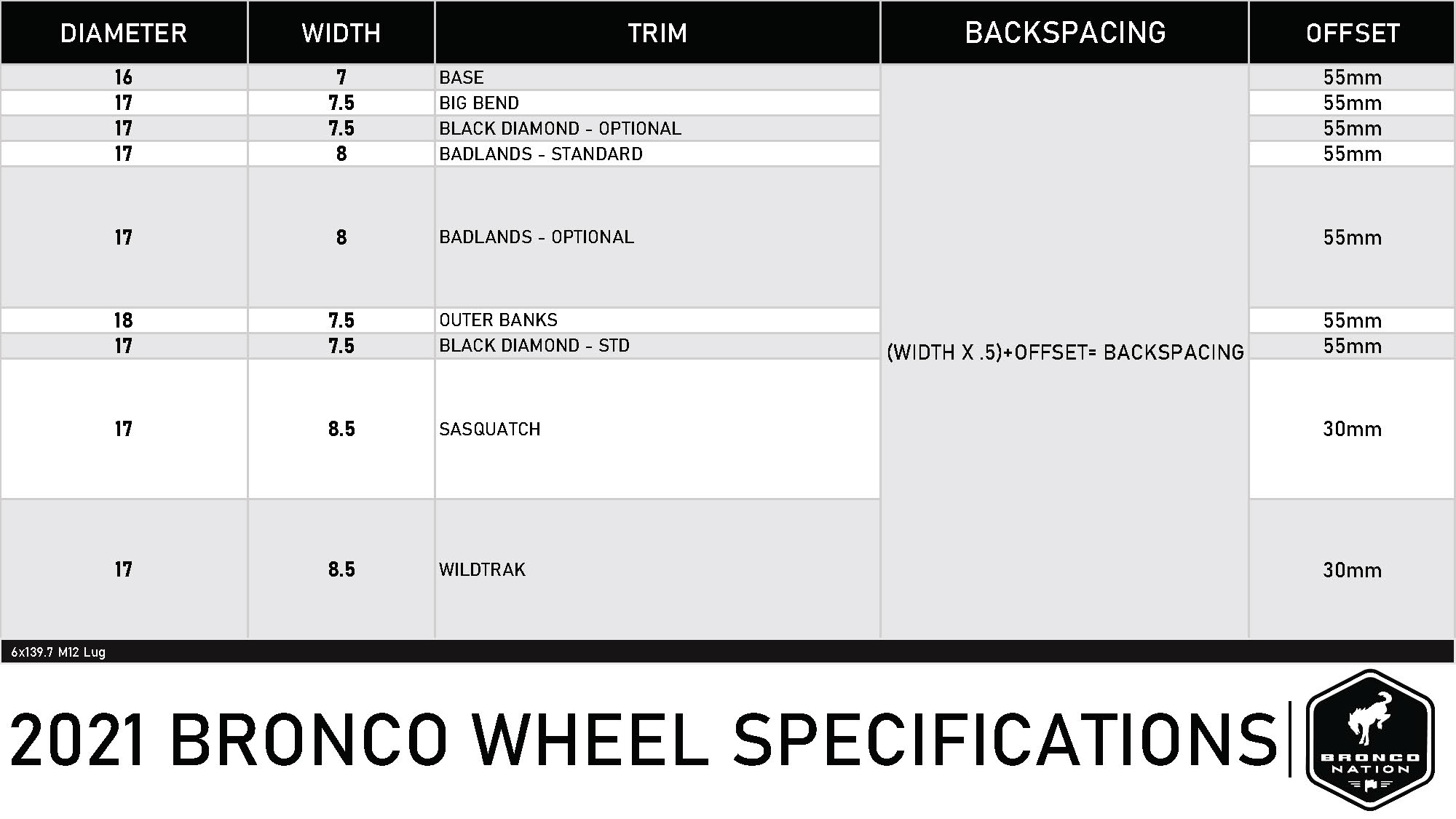

Bronco Wheel Specifications.jpg
2022 Bronco Badlands, 4D, Hot Pepper Red, 2.7, Squatch, Lux, and MIC.
7/13/2020 10:04pm reservation. Blend 6/16/2022 Delivered 6/26/2022.
Dealership - Stephen's Auto Center.
Dragon158, Jakob1972

Rank 0

Feb 24, 2025

#2
I just put on the Canyon Pro M/T on, with the 0 offset on my Badlands. Here are some pictures

Attachments

Dragon158, Deano Bronc
