Reverse light wire from tail light harness

thgdfathr
Aug 20, 2022

Rank: Jedi Master

Aug 20, 2022

I’m tackling my 4 pin install today. Also planning on adding a 5 pin adapter for when I need to tow my boat trailer (has surge brakes). Anyone have any idea which wire on the tail light wire harness is the reverse light wire?
2022 Big Bend, 4 door, Cactus Grey, on 285/70/17 KO2s
Last edited by a moderator: Aug 20, 2022

Rank: Jedi Master

Aug 20, 2022

#1
F it…went with the green brown wire. Guess I’ll let you all know if i was right next time I tow my boat trailer lol
2022 Big Bend, 4 door, Cactus Grey, on 285/70/17 KO2s
SAVEUP

No Ragerts

Aug 20, 2022

#2
thgdfathr
I’m tackling my 4 pin install today. Also planning on adding a 5 pin adapter for when I need to tow my boat trailer (has surge brakes). Anyone have any idea which wire on the tail light wire harness is the reverse light wire?
- 2023 Raptor / Shadow Black / MGV (DOB 8/30/23)
- 2023 Heritage Limited Edition / Robin’s Egg Blue / 4dr / (stolen from my dealer 11/15/23)

Rank: Jedi Master

Aug 20, 2022

#3
Bschurr

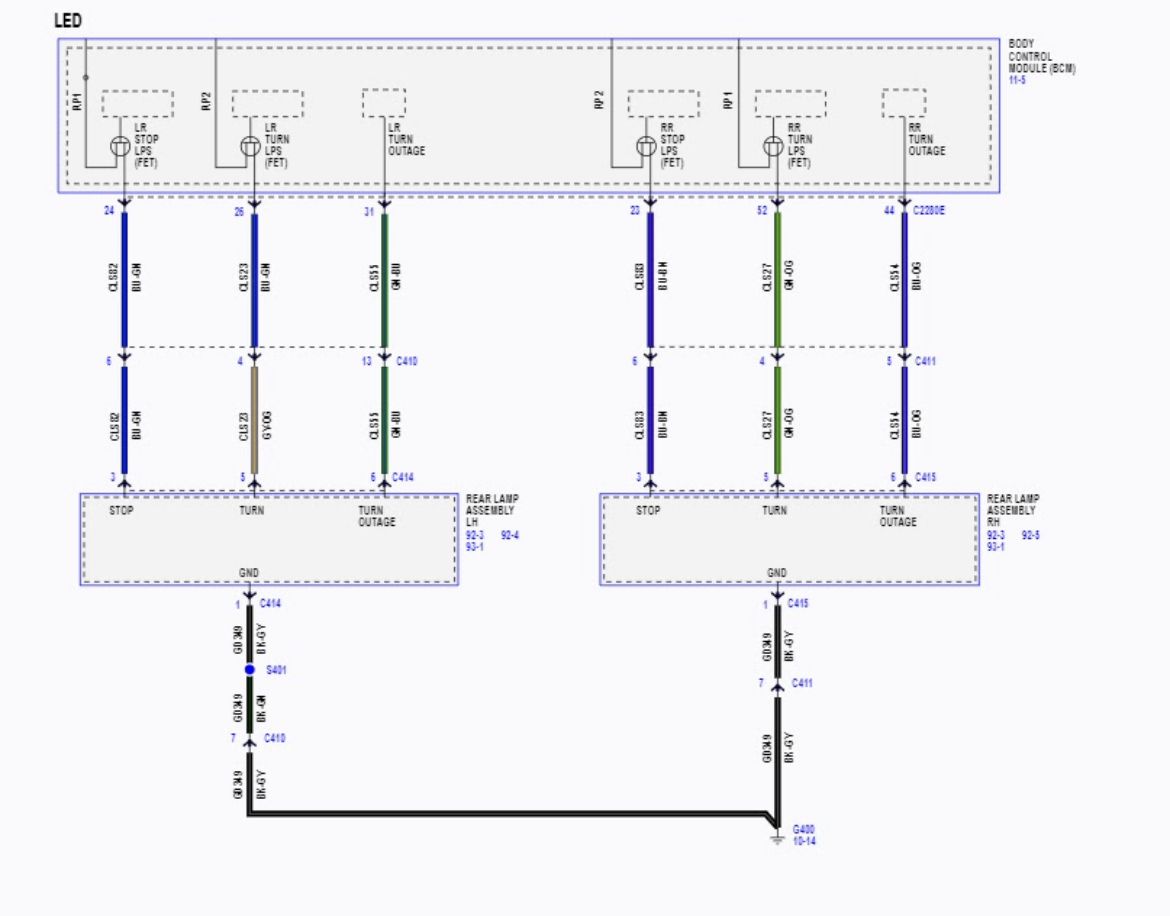

View attachment 42504
2022 Big Bend, 4 door, Cactus Grey, on 285/70/17 KO2s
