DIY 7 pin tow package

nic

Dec 06, 2021

I gathered all the parts to add a 7-pin tow package to my Bronco. I'll keep this thread updated as I make progress.

[O- 725 -O]

BuckYeah, The Real Sasquatch

Last edited by a moderator: Dec 06, 2021

Sort by date

Reaction Score

Dec 06, 2021

Subscribed

- 2023 Raptor / Shadow Black / MGV (DOB 8/30/23)
- 2023 Heritage Limited Edition / Robin’s Egg Blue / 4dr / (stolen from my dealer 11/15/23)

Dec 06, 2021

nic

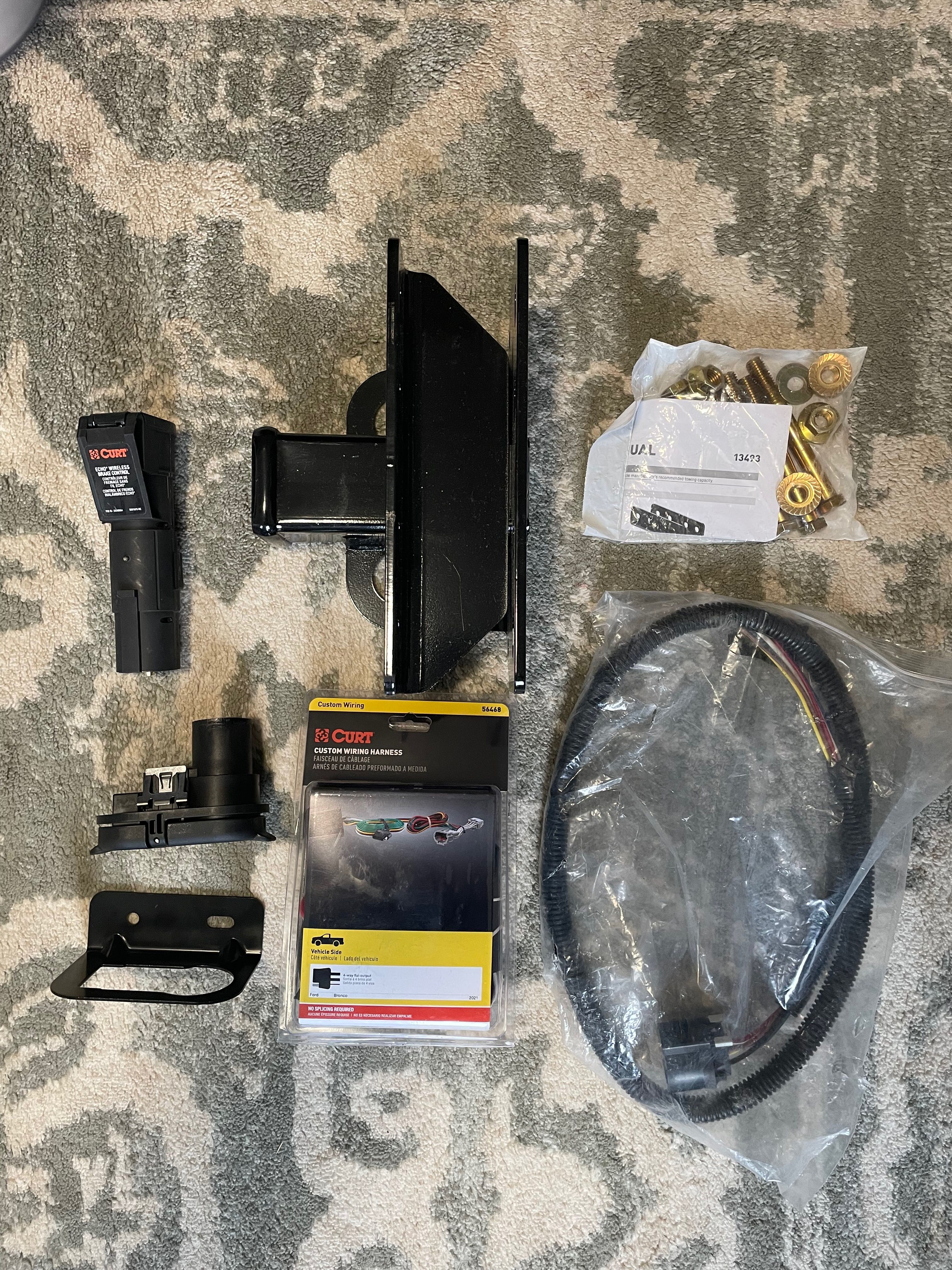

I gathered all the parts to add a 7-pin tow package to my Bronco. I'll keep this thread updated as I make progress.

View attachment 23158

The only thing a 7-pin does over 4-pin is provide for trailer brake control, and charge the battery on the trailer. Thus you will still need to add that to your "kit".

Dec 06, 2021

Mikey Smith
The only thing a 7-pin does over 4-pin is provide for trailer brake control, and charge the battery on the trailer. Thus you will still need to add that to your "kit".

The brake control is provided by the product in the top left corner. (Echo Brake Controller). Going to have to tap into a 12v to get charging, but the wires for that are above.

[O- 725 -O]

Dec 06, 2021

nic
The brake control is provided by the product in the top left corner. (Echo Brake Controller). Going to have to tap into a 12v to get charging, but the wires for that are above.

Oh, OK, didn't realize that until I made the screenshot bigger. For me, I'm getting the "genuine" kit, part VM2DZ-2C006-A. The kit is not a plug-play, rather has to be hard-wired. Suggestion, if you can get a copy of the install procedure, would save you time in wiring.

nic

Dec 06, 2021

what is the part number on that brake controller?

Dec 06, 2021

Cornwelltoolman
what is the part number on that brake controller?

VM2DZ-2C006-A I bought from Levittown Ford, had best price at $280, which was even cheap than my Ford employee price. The controller is the only one approved by Ford to be compatible with Forward Collision Warning, and Auto Braking and has two modes of proportional or user-controlled.

BuckYeah, tasker

Dec 07, 2021

nic
I gathered all the parts to add a 7-pin tow package to my Bronco. I'll keep this thread updated as I make progress.

View attachment 23158

thanks for posting that brake controller is really cool!

Dec 08, 2021

Mikey Smith
nic
I gathered all the parts to add a 7-pin tow package to my Bronco. I'll keep this thread updated as I make progress.

View attachment 23158
The only thing a 7-pin does over 4-pin is provide for trailer brake control, and charge the battery on the trailer. Thus you will still need to add that to your "kit".

And reverse lights

Gimesnow

Dec 09, 2021

Charley
And reverse lights

~~And separate writing for service lights & brake lights.~~

Never mind I'm wrong.

2022 4dr Badlands, 2.3L Manual, Mid pkg
YouTube: youtube.com/@ragnarkon
Instagram: @ragnar.kon

Dec 30, 2021

#10

So, following some threads from Bronco6g, it looks like some folks are using the two 12v in the rear driver panel for aux. It seems to be the 30A one. Those seem to be always hot… so does any one know if the 12v on the 7-pin for the Bronco is always hot?

[O- 725 -O]

Dec 30, 2021

#11

For clarity, the two 12v I’m referring to are in C4397A.

Attachments

media.jpg 682 x 512 · 58.14 KB

[O- 725 -O]

Dec 30, 2021

#12

nic
For clarity, the two 12v I’m referring to are in C4397A.

BuckYeah, nic

Dec 30, 2021

#13

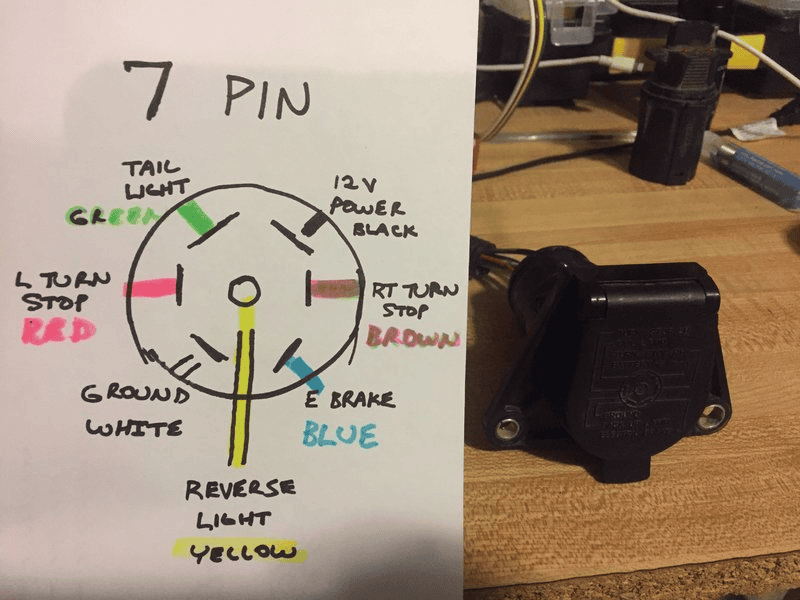

@Mikey Smith it’s the black 12v I’m curious about. Is that always hot?

[O- 725 -O]

Dec 30, 2021

#14

nic
@Mikey Smith it’s the black 12v I’m curious about. Is that always hot?

The pin is supposed to be for charging the back-up battery for the trailer brakes. If wired properly, it should only be hot, and powered by the alternator output. It would only take a minute to confirm with a 12-volt test light...

BuckYeah, nic

Dec 30, 2021

#15

Hey Nic, following here from Smyrna as I'm waiting on my Badlands (had to give up the tow package to get it sooner) from Wade Ford and plan to add the tow hitch and possibly a 4 pin. Curious which hitch you went with and where you got it.

Unfortunately, I can't answer your question about the wiring, but if I come across anything I'll be sure to post here.

Dec 30, 2021

#16

@skip_manuel howdy fellow cobb-ite!

I got almost everything from etrailer. The hitch does not have a spot for the flat or 7-pin, so that will have to be mounted separate.

[O- 725 -O]

Skip

Dec 30, 2021

#17

nic
So, following some threads from Bronco6g, it looks like some folks are using the two 12v in the rear driver panel for aux. It seems to be the 30A one. Those seem to be always hot… so does any one know if the 12v on the 7-pin for the Bronco is always hot?

Traditionally the 12v on a 7 pin is always hot, most modern vehicles however have it on a relay so it’s only hot when a trailer is detected. Don’t have my bronco yet so can’t confirm how it’s wired.

22 Black Diamond 2dr non sas w tow and roof rails.

nic

Dec 30, 2021

#18

nic
@skip_manuel howdy fellow cobb-ite!

I got almost everything from etrailer. The hitch does not have a spot for the flat or 7-pin, so that will have to be mounted separate.

I noticed that too. I was looking at one that was around $110 and looked just like yours, but I noticed it didn't have a slot for the 4 pin I was hoping to eventually add. Not sure I want to buy the Ford version for ~$200 more just for that. I'll be interested to see how you mount it. I also considered just looping a zip tie through one of the holes on the hitch you have to roughly hold the wiring harness. Wouldn't be as pretty, but may be able to tuck it away back there since it's only a 4 pin.

nic

Dec 30, 2021

#19

skip_manuel
I noticed that too. I was looking at one that was around $110 and looked just like yours, but I noticed it didn't have a slot for the 4 pin I was hoping to eventually add. Not sure I want to buy the Ford version for ~$200 more just for that. I'll be interested to see how you mount it. I also considered just looping a zip tie through one of the holes on the hitch you have to roughly hold the wiring harness. Wouldn't be as pretty, but may be able to tuck it away back there since it's only a 4 pin.

They make, or you can make, a 7-pin to 4-pin adaptor harness. I made one up, as well as a 4-pin to 7- pin wire harness.

Skip, nic
